Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork Fox Performance Float 34
-
Groupset SLX, e*thirteen -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 130.
Suspension Fork
Fox Performance 34 Float 140mm 27.5
Rear Shock
Fox Float DPS Performance 190x45
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Shift Levers
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Crank
E13 Helix 32t 170mm
Bottom Bracket
E13
Chain
KMC 12spd
Wheels
Rims
WTB ST Light i30 on Strange Pro 27
Tires
Maxxis Minion DHR II 2.4 EXO TR 27.5
Brakes
Brakes
SRAM Guide RE 200/180
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Headset
Cane Creek 49mm for Tapered Steerer
Seat
Saddle
WTB Silverado Steel
Seatpost
SDG Tellis 150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.24 mm | 1.24 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 763 mm | 785 mm | 805 mm | 829 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Trail | 131 mm | 130 mm | 131 mm | 131 mm |
| Stack | 600 mm | 609 mm | 609 mm | 627 mm |
| Reach | 453 mm | 470 mm | 491 mm | 506 mm |
| Top Tube Length | 601 mm | 621 mm | 641 mm | 661 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1202 mm | 1224 mm | 1244 mm | 1268 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 698 mm | 718 mm | 736 mm | 763 mm |
| Rear Travel | 130 mm | 130 mm | 130 mm | 130 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

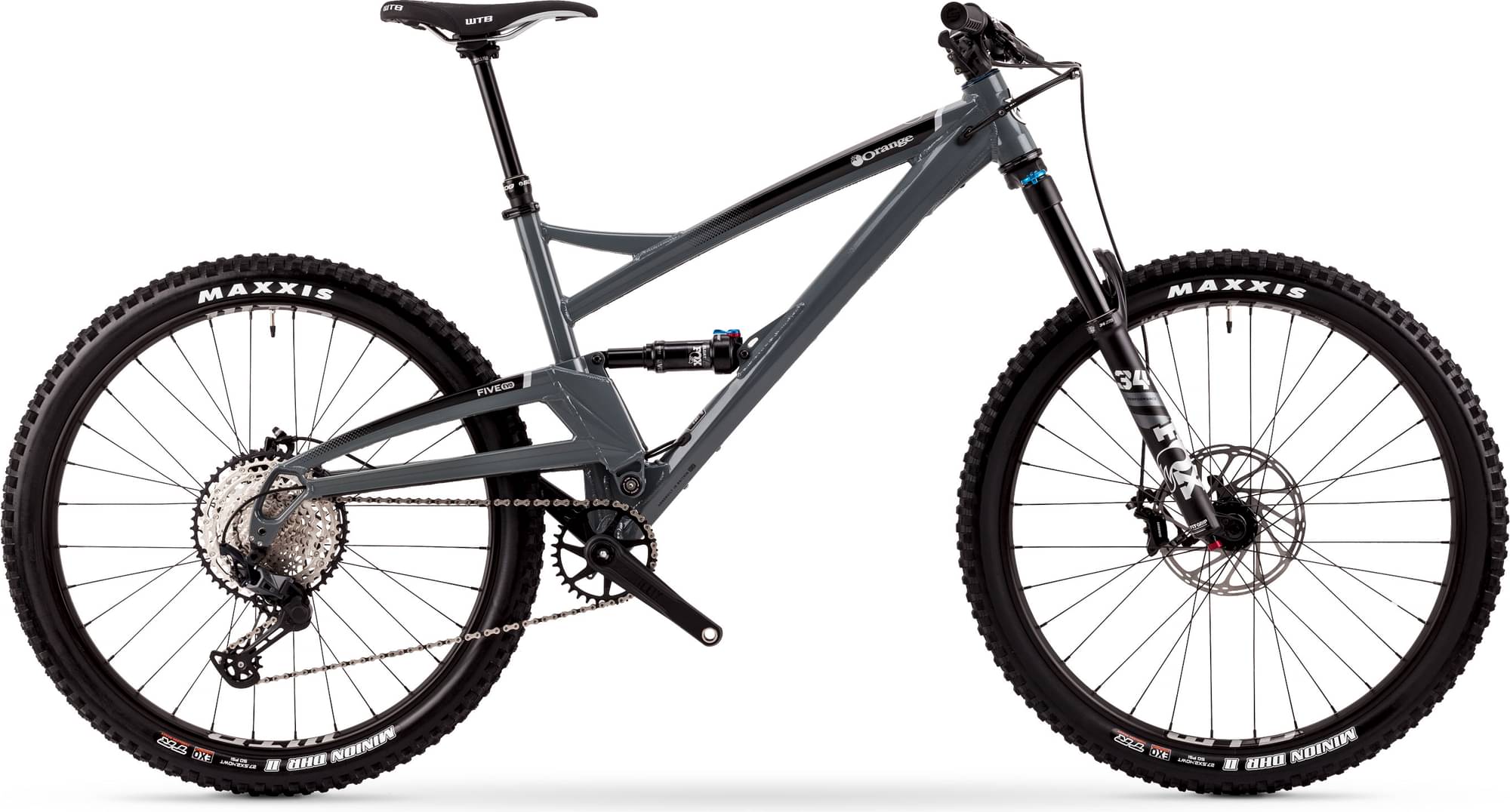

Five Evo Pro is an Orange Five model. Orange released 27 bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Orange Five Evo S 2022 is the most affordable bike of this model and has a price of 4447$. On the other hand, Orange Five EVO SE 2022, is the most expensive and costs 7400$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 5295$. Comparing this to the average Trail bike price, we see that the price is 91.71% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Performance 190×45, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Five Evo Pro 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Five Evo Pro comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Orange Five Evo Pro includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
