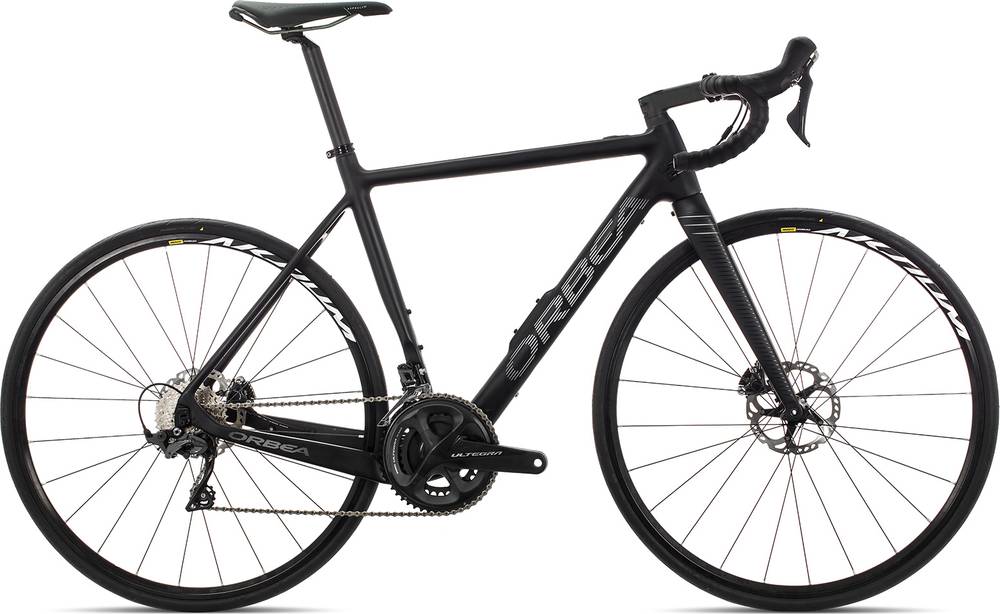

Orbea GAIN M20 20mph 2020
2020 E-bike
Estimate price |
4,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135x9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Suspension Fork
Gain Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 GS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano ST-8020
Cassette
Shimano Ultegra R8000 11-32t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Chain
KMC X11
Wheels
Rims
Mavic Aksium Elite Disc UST
Tires
Mavic Yksion Pro 700x28 UST
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
OC2 Road -8º
Handlebar
OC2 Road, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
OC2 31.6 Offset 20
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 580 mm | 590 mm | 598 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 74 mm | 64 mm | 58 mm | 54 mm |
| Stack | 517 mm | 532.2 mm | 552.1 mm | 567 mm | 581.5 mm |
| Reach | 357 mm | 362.2 mm | 377.4 mm | 392 mm | 409.6 mm |
| Top Tube Length | 519.9 mm | 530 mm | 551.5 mm | 570.8 mm | 593 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 555 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 71 ° | 71.9 ° | 72.5 ° |
| Head Tube Length | 98.7 mm | 115 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1007 mm | 1018 mm | 1026 mm | 1036 mm | 1053 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 717 mm | 743 mm | 767 mm | 780 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN M20 20mph is an Orbea E Gain model. There are 78 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Orbea GAIN F30 20mph 2020 is the most economical model, with a starting price of 2699$. Orbea GAIN M10i 20mph 2020 on the other hand costs 8999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance e-bikes average price
Our math shows that the average cost of a dependable Endurance e-bike is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. If we compare this with the average Endurance e-bike cost we notice that the price is 31.55% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
GAIN M20 20mph components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The GAIN M20 20mph 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea GAIN M20 20mph has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Orbea GAIN M20 20mph e-bike has 5 sizes, in the range of 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
