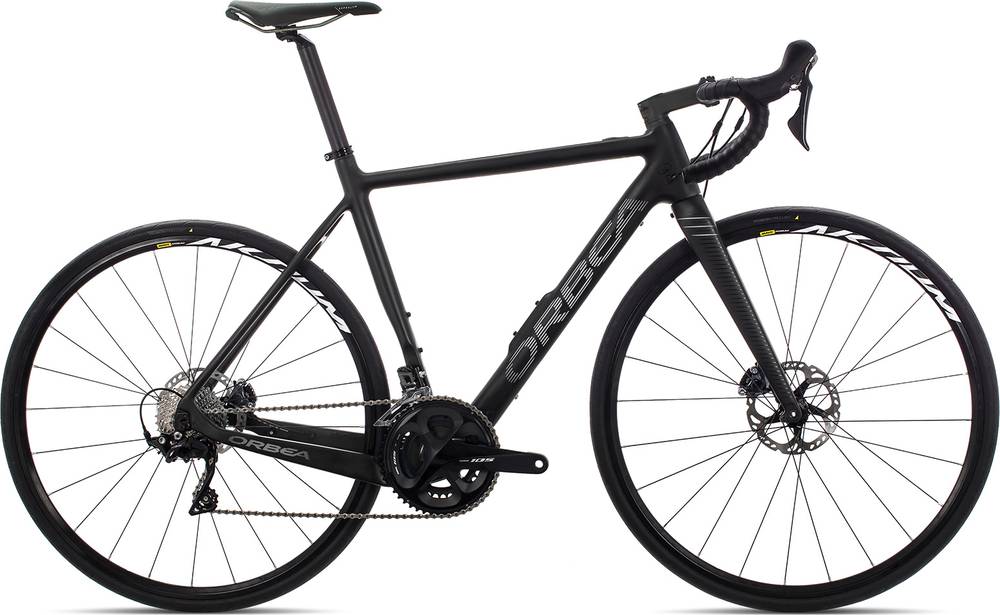

Orbea GAIN M30 20mph 2020
2020 E-bike
Estimate price |
4,299$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor hub-drive -
Battery Ebikemotion 36V/6.9A ANT+ -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
150cm - 161cm
SM
159cm - 171cm
MD
169cm - 181cm
LG
179cm - 191cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Gain Carbon, Monocoque carbon structure, Flat Mount Disc Brakes, 135x9 QR, max 700x40C, Inner Cable routing, Ebikemotion X35 specific, integrated battery, integrated sensor, Iwock One compatible
Suspension Fork
Gain Carbon Flat mount
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano ST-7020
Cassette
Shimano 105 R7000 11-32t 11-Speed
Crank
Shimano 105 R7000 34x50t
Chain
KMC X11
Wheels
Rims
Mavic Aksium Elite Disc UST
Tires
Mavic Yksion Pro 700x28 UST
Brakes
Brakes
Shimano R7070 Hydraulic Disc
Cockpit
Stem
OC2 Road -8º
Handlebar
OC2 Road, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Selle Royal Asphalt GR
Seatpost
OC2 31.6 Offset 20
Motor & Battery
Motor
Ebikemotion X35
Battery
Ebikemotion 36V/6.9A ANT+
Remote
OC monochrome ANT+ LEV
Charger
Ebikemotion X35
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.46 mm | 1.45 mm | 1.42 mm |
| Bottom Bracket Height | 272 mm | 272 mm | 272 mm | 272 mm | 272 mm |
| Front Center | 580 mm | 590 mm | 598 mm | 609 mm | 625 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 73 mm | 74 mm | 64 mm | 58 mm | 54 mm |
| Stack | 517 mm | 532.2 mm | 552.1 mm | 567 mm | 581.5 mm |
| Reach | 357 mm | 362.2 mm | 377.4 mm | 392 mm | 409.6 mm |
| Top Tube Length | 519.9 mm | 530 mm | 551.5 mm | 570.8 mm | 593 mm |
| Seat Tube Angle | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° | 72.4 ° |
| Seat Tube Length | 470 mm | 510 mm | 540 mm | 555 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 71 ° | 71.9 ° | 72.5 ° |
| Head Tube Length | 98.7 mm | 115 mm | 130 mm | 142 mm | 155 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1007 mm | 1018 mm | 1026 mm | 1036 mm | 1053 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 717 mm | 743 mm | 767 mm | 780 mm | 795 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 150 cm | 159 cm | 169 cm | 179 cm | 189 cm |
| Rider Max Height | 161 cm | 171 cm | 181 cm | 191 cm | 200 cm |
About this model
GAIN M30 20mph is part of the Orbea E Gain model. Orbea released 78 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Orbea GAIN F30 20mph 2020 is the most economical model, with a starting price of 2699$. Orbea GAIN M10i 20mph 2020 on the other hand costs 8999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Endurance e-bikes average price
According to our calculations, the average cost of an Endurance e-bike that is reliable is 3800$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2020 for 4299$. Comparing this to the average Endurance e-bike price, we see that the price is 13.13% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The GAIN M30 20mph 2020 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GAIN M30 20mph comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 150 cm – 200 cm (4.92 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
