Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 34
-
Groupset NX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam AM OMR 150mm travel UFO 27.5 Boost 12x148 PF
Suspension Fork
Fox 34 Float Performance 150 3-Position QR15x110 Fox 34 Float Factory 150 FIT4 3-Pos-Adj QR15x110 K
Rear Shock
Fox Float DPS Performance 3-Position Evol custom tune 210x55mm Fox DPX2 Factory 3-Pos Adjust Evol Kashima 210x55mm
Drivetrain
Rear Derailleur
SRAM NX Eagle
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle
Cassette
SRAM NX PG-1230 Eagle 11-50t 12-Speed
Crank
SRAM Descendant CNC Eagle Dub Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA)
Chain
SRAM NX Eagle 12-Speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
DT Swiss M-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, Centerlock rotors
Rear Hub
DT Swiss M-1900 Spline, 110x15mm Boost front, 148x12mm Boost rear, Centerlock rotors
Rims
DT M-1900 Spline 30c TLR 15/110mm CL
Tires
Maxxis Ardent 2.40" TLR 60 Tpi Exo Dual
Brakes
Brakes
Shimano MT501 BR500 Hydraulic Disc Shimano XT M8000 Hydraulic Disc
Brake Levers
Shimano MT500 Hydraulic
Cockpit
Stem
Race Face Ride
Handlebar
Orbea OC-II Riser 760mm Race Face Aeffect35 Riser 20/760mm+Aeffect R35 Kit
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail Selle Italia X-LR Ti Flow
Seatpost
Race Face Aeffect Dropper 31.6x385/125mm Crank brothers Highline 31,6x425/150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm |
| Front Center | 696 mm | 724 mm | 748 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 113 mm | 114 mm | 113 mm |
| Stack | 578 mm | 588 mm | 597 mm |
| Reach | 399 mm | 424 mm | 443 mm |
| Top Tube Length | 556 mm | 583 mm | 605 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1114 mm | 1142 mm | 1166 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm |
| Standover Height | 706 mm | 734 mm | 761 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

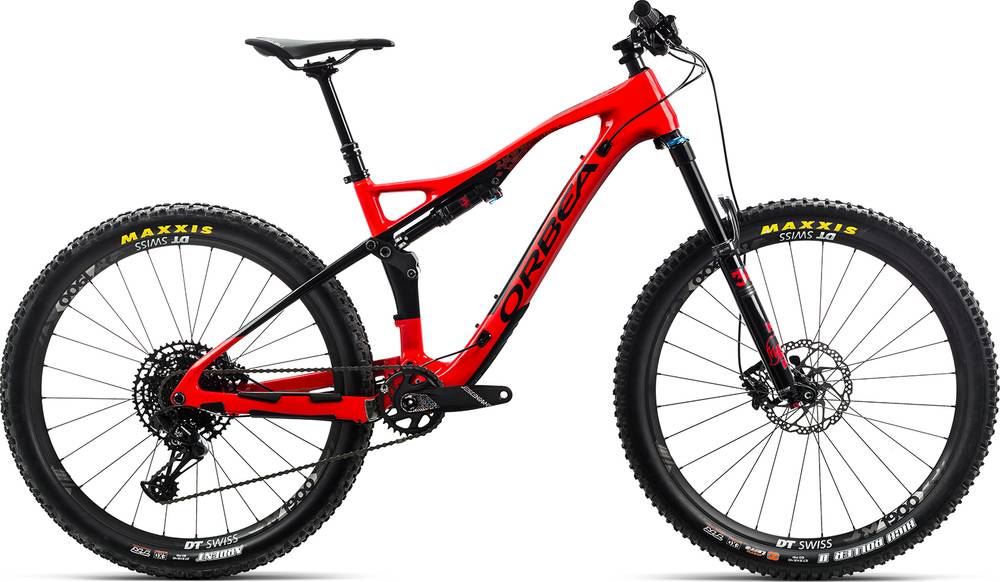

OCCAM AM M30 completes the Orbea Occam model. Orbea launched 80 bikes of this model so far. You can easily view all of the Orbea Occam bikes models from 2018, here.
Model range prices
The most economical model, the Orbea OCCAM TR H50 2018 has a starting price of 2499$. Orbea OCCAM AM M-LTD 2018 on the other hand is the most expensive at 7999$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Orbea OCCAM AM M30 price was 3999$. Doing a quick comparison, we notice that OCCAM AM M30 price is 11.11% higher than the average cost of an Enduro bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Float DPS Performance 3-Position Evol rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The OCCAM AM M30 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea OCCAM AM M30 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
