Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance, 3-position adjust, 110x15mm QR
Rear Shock
FOX Float DPS Performance, 3-position adjust, custom tune, 184mm x 44mm
Drivetrain
Rear Derailleur
Shimano XT M8000 GS, Shadow Plus, Direct Mount
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000 I-Spec
Cassette
Sun Race, 11-46 tooth, 11-speed
Crank
Race Face Aeffect Cinch
Chain
Shimano HG601-11
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Sun Ringl? Duroc TR40, Modus, sealed, 110x15mm Boost front, 148x12mm Boost rear
Rear Hub
Sun Ringl? Duroc TR40, Modus, sealed, 110x15mm Boost front, 148x12mm Boost rear
Rims
Sun Ringl? Duroc TR40 TLR+, Modus
Tires
Maxxis Rekon+ 27.5" x 2.8" TLR, 60 tpi, Exo
Brakes
Brakes
Shimano MT500 Hydraulic Disc
Brake Levers
Shimano MT500 Hydraulic
Cockpit
Stem
Race Face Aeffect R, 35mm interface
Handlebar
Race Face Aeffect, 35mm clamp, 10mm rise, 760mm width
Headset
FSA Integrated
Seat
Saddle
Selle Royal 2062 Trail Custom
Seatpost
Race Face Aeffect Dropper, 385mm length, 125mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.34 mm |
| Stack | 589 mm | 599 mm | 608 mm | 622 mm |
| Reach | 399 mm | 424 mm | 443 mm | 465 mm |
| Top Tube Length | 565 mm | 592 mm | 614 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm |
| Wheelbase | 1115 mm | 1143 mm | 1166 mm | 1194 mm |
| Standover Height | 718 mm | 724 mm | 791 mm | 775 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

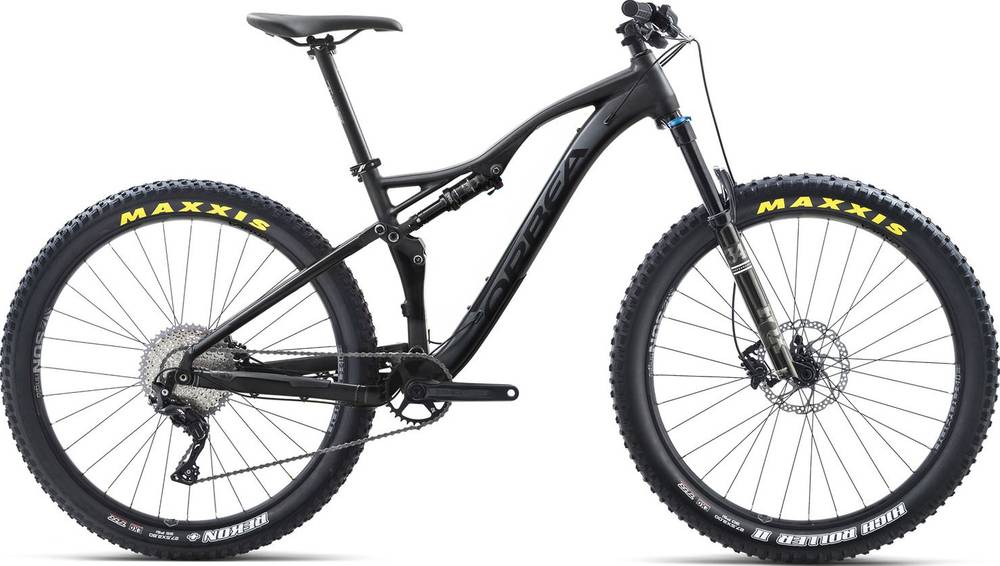

Occam TR H20-Plus completes the Orbea Occam model. Orbea released 80 bikes variations of this model so far. You can easily view all of the Orbea Occam bikes models from 2018, here.
Model range prices
Orbea OCCAM TR H50 2018 is the most economical model, with a starting price of 2499$. Orbea OCCAM AM M-LTD 2018 on the other hand costs 7999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3499$. Doing a quick comparison, we notice that Occam TR H20-Plus price is 26.68% higher than the average cost of a Trail bike.
Overview of components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Orbea Occam TR H20-Plus bike has the FOX Float DPS Performance model installed, and has a travel of 120mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Occam TR H20-Plus bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Occam TR H20-Plus comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Orbea Occam TR H20-Plus bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
