Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam TR 2018 OMR 120mm travel UFO 29/27.5+ Boost 12x148 PF
Suspension Fork
Fox 34 Float Factory 130 FIT4 3-Pos-Adj QR15x110 Kashima
Rear Shock
Fox Float DPS Factory 3-Position Adjust Evol Kashima custom tune 184x44mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle Gold
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle
Cassette
SRAM XX1 XG-1299 Eagle 10-50t 12-Speed
Crank
SRAM XX1 Eagle Dub Black Boost 32t Rotor QX1 DM SRAM 32t Chainring (EXTRA)
Chain
SRAM XX1 Eagle 12-Speed Gold
Chain Guide
OneUp Components ISCG05 Guide ONE-UP ISCG05 Chainguide
Pedals
N/A
Wheels
Front Hub
DT Swiss XRC-1200 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rear Hub
DT Swiss XRC-1200 Spline, 110x15mm Boost front, 148x12mm Boost rear, IS (6-bolt) rotors
Rims
DT XRC-1200 Spline 25c TLR 15/110mm IS (6-bolt)
Tires
Maxxis Forekaster 2.35" 120 TPI TLR Dual Exo
Brakes
Brakes
Avid Guide RSC Hydraulic Disc Shimano XTR M9120 Hydraulic Disc
Brake Levers
Avid Guide RSC Hydraulic
Cockpit
Stem
Race Face Turbine 35mm interface
Handlebar
Race Face Next 35 10mm Rise 760mm
Headset
Acros Alloy 1-1/8 - 1-1/2" Integrated
Seat
Saddle
Selle Italia XR Trail Selle Italia X-LR Ti Flow
Seatpost
Crank brothers Highline 31.6x425/150mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 689 mm | 717 mm | 740 mm | 768 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 107 mm | 106 mm | 106 mm |
| Stack | 589 mm | 599 mm | 608 mm | 622 mm |
| Reach | 399 mm | 424 mm | 443 mm | 465 mm |
| Top Tube Length | 565 mm | 592 mm | 614 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 393 mm | 432 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 140 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1115 mm | 1143 mm | 1166 mm | 1194 mm |
| Bottom Bracket Drop | 33 mm | 33 mm | 33 mm | 33 mm |
| Standover Height | 718 mm | 736 mm | 762 mm | 775 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

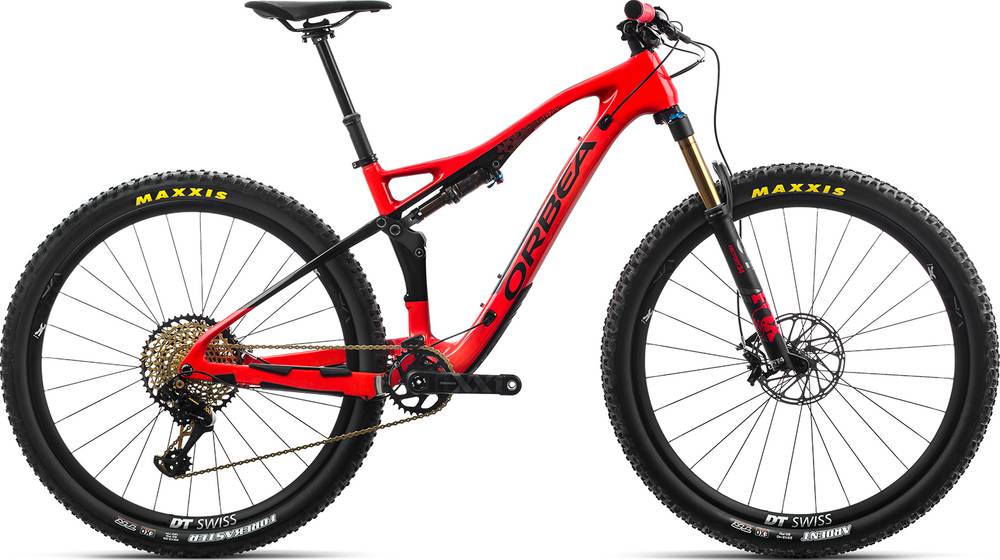

OCCAM TR M-LTD is an Orbea Occam model. Orbea released 80 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Orbea OCCAM TR H50 2018 has a starting price of 2499$. Orbea OCCAM AM M-LTD 2018 on the other hand is the most expensive at 7999$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7999$. Comparing this to the average Trail bike price, we see that the price is 189.61% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this bike has the Fox Float DPS Factory 3-Position Adjust model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the OCCAM TR M-LTD bike is equipped with the 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea OCCAM TR M-LTD has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Orbea OCCAM TR M-LTD bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
