Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca Aero carbon OMR disc, monocoque construction,tapered 1-1/8" - 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible.
Suspension Fork
Orca Aero carbon OMR disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5
Drivetrain
Rear Derailleur
SRAM Red eTAP
Front Derailleur
SRAM Red eTAP
Shift Levers
SRAM Red eTap AXS
Cassette
SRAM XG-1290 10-28t 12-Speed
Crank
SRAM Red Dub 35x48t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
SRAM Red 12-Speed
Wheels
Rims
DT Swiss ARC 1400 Dicut DB 48 Carbon CL TL
Tires
Hutchinson Fusion 5 All Season TLR 700x28
Brakes
Brakes
SRAM Red eTap AXS
Cockpit
Stem
FSA Metron 5D Compact Hanlebar intregated
Handlebar
Vision Metron 5D Compact
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
Orbea Aero OMR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.36 mm | 1.39 mm | 1.42 mm | 1.45 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 573 mm | 577 mm | 581 mm | 582 mm | 593 mm | 602 mm | 616 mm |
| Rake | 48 mm | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 65 mm | 62 mm | 57 mm | 59 mm | 57 mm | 57 mm | 57 mm |
| Stack | 500 mm | 509 mm | 527 mm | 547 mm | 566 mm | 584 mm | 610 mm |
| Reach | 369 mm | 374 mm | 379 mm | 384 mm | 390 mm | 397 mm | 403 mm |
| Top Tube Length | 508 mm | 520 mm | 533 mm | 546 mm | 558 mm | 574 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 450 mm | 465 mm | 490 mm | 515 mm | 535 mm | 555 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 100 mm | 108 mm | 124 mm | 144 mm | 163 mm | 181 mm | 208 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 969 mm | 973 mm | 977 mm | 979 mm | 990 mm | 999 mm | 1013 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 727 mm | 741 mm | 762 mm | 781 mm | 805 mm | 823 mm | 847 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model

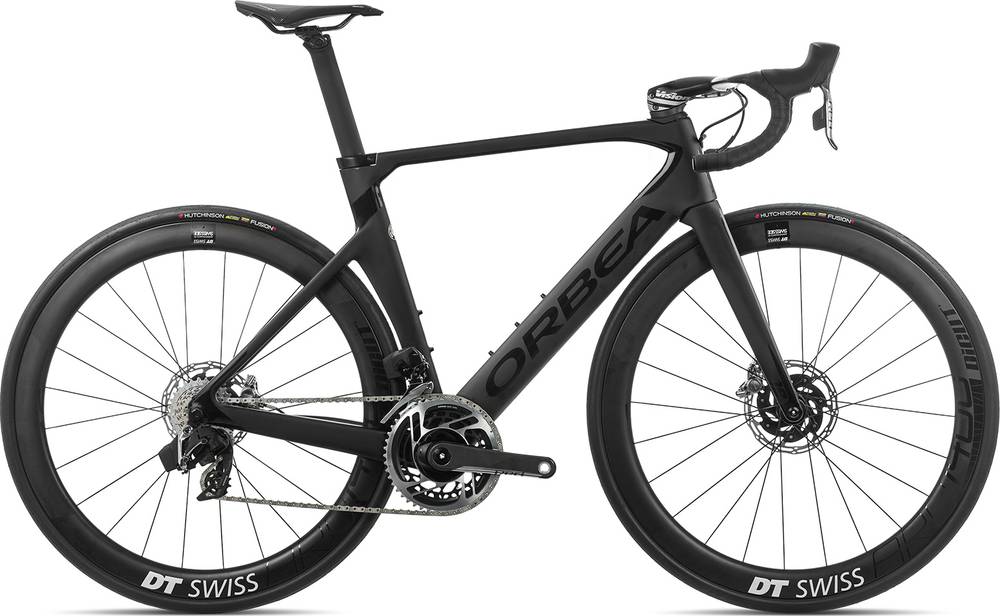

ORCA AERO M11eTEAM-D is part of the Orbea Orca model. There are 214 bikes that carry this model name. Take a sneak peek at all Orbea Orca bikes models from 2020, by clicking here.
Model range prices
Orbea ORCA M40 2020 is the cheapest bike model and costs 1799$. Orbea ORCA M11eLTD-D 2020 is the most expensive one and costs 9599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Orbea ORCA AERO M11eTEAM-D price was 8999$. If we compare this with the average Aero bike cost we notice that the price is 113.7% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
ORCA AERO M11eTEAM-D components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The ORCA AERO M11eTEAM-D 2020 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORCA AERO M11eTEAM-D is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Orbea ORCA AERO M11eTEAM-D bike has 7 sizes, in the range of 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
