Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca OMR Disc carbon 2020, monocoque construction, tapered 1-1/8" - 1,5", BB 386, powermeter compatible, thru axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm.
Suspension Fork
Orbea Orca OMR Disc carbon fork 2020, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, thru axle 12 x 100mm, thread M12xP1.5
Drivetrain
Rear Derailleur
SRAM Red eTAP
Front Derailleur
SRAM Red eTAP
Shift Levers
SRAM Red eTap AXS
Cassette
SRAM XG-1290 10-28t 12-Speed
Crank
SRAM Red Dub 33x46t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
SRAM Red 12-Speed
Wheels
Rims
Vision 40 SC Disc Carbon TLR CL
Tires
Vittoria Corsa Competition G2.0 TLR 700x28c
Brakes
Brakes
SRAM Red eTap AXS
Cockpit
Stem
OC2 Road -8º
Handlebar
OC2 Road Carbon, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
OC2 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 576 mm | 580 mm | 584 mm | 584 mm | 595 mm | 605 mm | 619 mm |
| Rake | 49 mm | 49 mm | 49 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 64 mm | 61 mm | 56 mm | 58 mm | 57 mm | 55 mm | 55 mm |
| Stack | 512 mm | 521 mm | 539 mm | 558 mm | 578 mm | 596 mm | 622 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm | 397 mm | 404 mm | 410 mm |
| Top Tube Length | 516 mm | 528 mm | 542 mm | 554.8 mm | 566 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 104 mm | 111 mm | 130 mm | 148 mm | 168 mm | 186 mm | 213 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 985 mm | 989 mm | 993 mm | 994 mm | 1005 mm | 1015 mm | 1029 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 735 mm | 748 mm | 764 mm | 786 mm | 806 mm | 823 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |
About this model

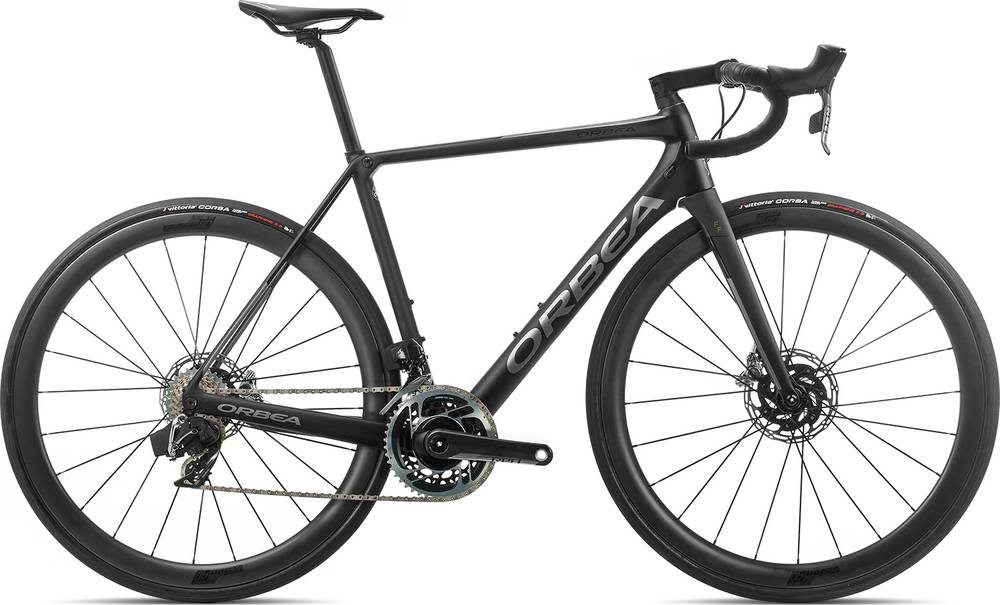

ORCA M11eTEAM-D is an Orbea Orca model. Orbea launched 214 bikes of this model so far. Take a sneak peek at all Orbea Orca bikes models from 2020, by clicking here.
Model range prices
Orbea ORCA M40 2020 is the cheapest bike model and costs 1799$. Orbea ORCA M11eLTD-D 2020 is the most expensive one and costs 9599$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race bikes average price
If you want an acceptable Race bike you should know that the average price is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2020 and its price was 7599$. Doing a quick comparison, we notice that ORCA M11eTEAM-D price is 126.84% more expensive than the average cost of a Race bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ORCA M11eTEAM-D components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on ORCA M11eTEAM-D are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Orbea ORCA M11eTEAM-D is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
ORCA M11eTEAM-D comes in 7 sizes, that range from 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, it won’t take much to find one that’s right for you.
