Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
47cm
155cm - 161cm
49cm
159cm - 168cm
51cm
165cm - 174cm
53cm
171cm - 181cm
55cm
178cm - 187cm
57cm
184cm - 193cm
60cm
190cm - 207cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Orca OMR Disc carbon 2020, monocoque construction, tapered 1-1/8" - 1,5", BB 386, powermeter compatible, thru axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm.
Suspension Fork
Orbea Orca OMR Disc carbon fork 2020, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts, thru axle 12 x 100mm, thread M12xP1.5
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 SS
Front Derailleur
Shimano Ultegra R8000
Shift Levers
Shimano ST-8020
Cassette
Shimano Ultegra R8000 11-28t 11-Speed
Crank
Shimano Ultegra R8000 34x50t
Bottom Bracket
386EVO, 86mm, press-fit
Chain
Shimano HG 701
Wheels
Rims
Vision 40 SC Disc Carbon TLR CL
Tires
Hutchinson Fusion 5 All Season TLR 700x28
Brakes
Brakes
Shimano R8070 Hydraulic Disc
Cockpit
Stem
OC2 Road -8º
Handlebar
OC2 Road, reach 80mm, drop 125mm
Headset
FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings
Seat
Saddle
Prologo Dimension T4.0 size143 mm
Seatpost
OC2 27.2 Offset 20
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.36 mm | 1.37 mm | 1.4 mm | 1.43 mm | 1.46 mm | 1.48 mm | 1.52 mm |
| Bottom Bracket Height | 269.5 mm | 269.5 mm | 269.5 mm | 271.5 mm | 271.5 mm | 271.5 mm | 271.5 mm |
| Front Center | 576 mm | 580 mm | 584 mm | 584 mm | 595 mm | 605 mm | 619 mm |
| Rake | 49 mm | 49 mm | 49 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 64 mm | 61 mm | 56 mm | 58 mm | 57 mm | 55 mm | 55 mm |
| Stack | 512 mm | 521 mm | 539 mm | 558 mm | 578 mm | 596 mm | 622 mm |
| Reach | 376 mm | 381 mm | 386 mm | 391 mm | 397 mm | 404 mm | 410 mm |
| Top Tube Length | 516 mm | 528 mm | 542 mm | 554.8 mm | 566 mm | 582 mm | 596 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.7 ° | 73.5 ° | 73.5 ° | 73.2 ° | 73.2 ° |
| Seat Tube Length | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72.2 ° | 72.8 ° | 73 ° | 73.2 ° | 73.2 ° |
| Head Tube Length | 104 mm | 111 mm | 130 mm | 148 mm | 168 mm | 186 mm | 213 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 985 mm | 989 mm | 993 mm | 994 mm | 1005 mm | 1015 mm | 1029 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 735 mm | 748 mm | 764 mm | 786 mm | 806 mm | 823 mm | 850 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 159 cm | 165 cm | 171 cm | 178 cm | 184 cm | 190 cm |
| Rider Max Height | 161 cm | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 207 cm |

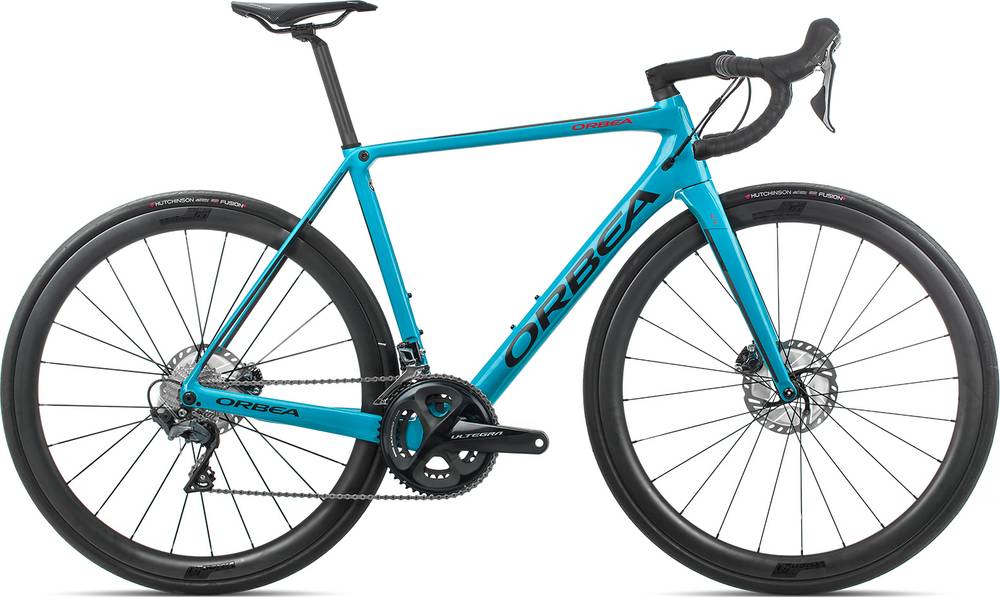

About this model
ORCA M25TEAM-D is part of the Orbea Orca model. Orbea launched 214 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Orbea ORCA M40 2020 is the most economical model, with a starting price of 1799$. Orbea ORCA M11eLTD-D 2020 on the other hand costs 9599$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 3999$. Comparing the average cost of a Race bike to this one, you will see that ORCA M25TEAM-D price is 19.37% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Orbea ORCA M25TEAM-D 2020, has a 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Orbea ORCA M25TEAM-D has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 155 cm – 207 cm (5.09 ft – 6.79 ft). In conclusion, finding one for you shouldn’t be a problem.
