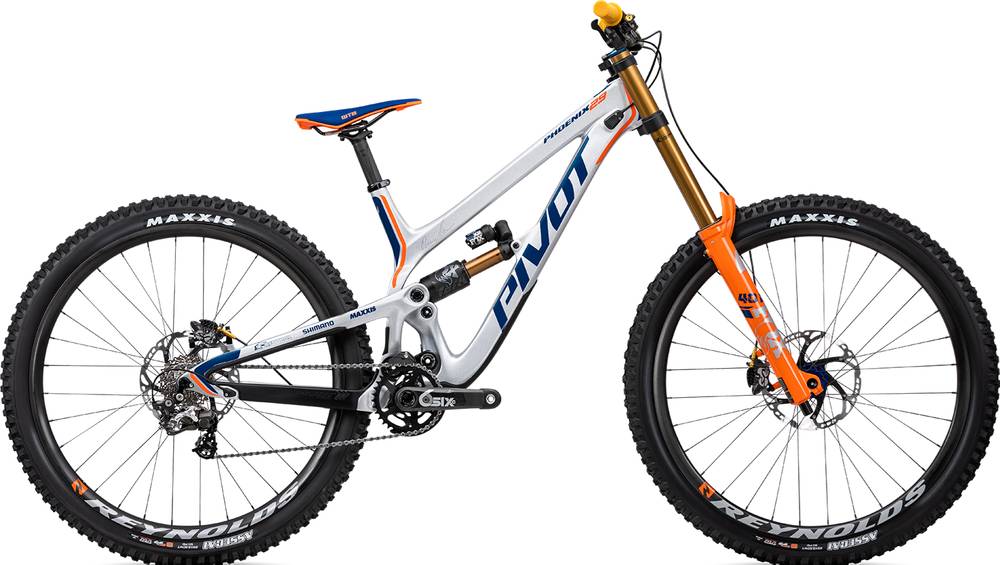

Pivot Phoenix 29 Bernard Kerr Collectors Edition 2021
2021 Mountain
Estimate price |
9,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 – 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint Shadow+ 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face SIXC 36t w/ chainguide
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Reynolds Bernard Kerr Special Edition Blacklabel DH w/ Industry Nine hub, 28mm - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Disk Rotors
Shimano XT 6-bolt - 203mm Shimano XT 6-bolt - 203mm
Cockpit
Stem
Renthal Integra 50mm - Black/AluGold
Handlebar
Renthal Fatbar 30mm Rise - AluGold
Grips
DMR DeathGrip Flange - Thin - Gum
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
WTB Bernard Kerr Team High Tail
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Phoenix 29 Bernard Kerr Collectors Edition completes the Pivot Phoenix model. Pivot released 35 bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Pivot Phoenix 29 Race Zee 2021 is the cheapest bike model and costs 6199$. Pivot Phoenix 29 Pro Saint w/ Carbon Wheels 2021 is the most expensive one and costs 9349$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2021, its price was 9199$. If we compare this with the average Downhill bike cost we notice that the price is 171.28% more expensive.
Overview of components
Fork
The Phoenix 29 Bernard Kerr Collectors Edition comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Phoenix 29 Bernard Kerr Collectors Edition has a rear shock with a travel of 190mm. The model Fox Factory Float X2 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
As for the wheels, Pivot Phoenix 29 Bernard Kerr Collectors Edition 2021, has a 29″ carbon model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Phoenix 29 Bernard Kerr Collectors Edition has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Phoenix 29 Bernard Kerr Collectors Edition comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
