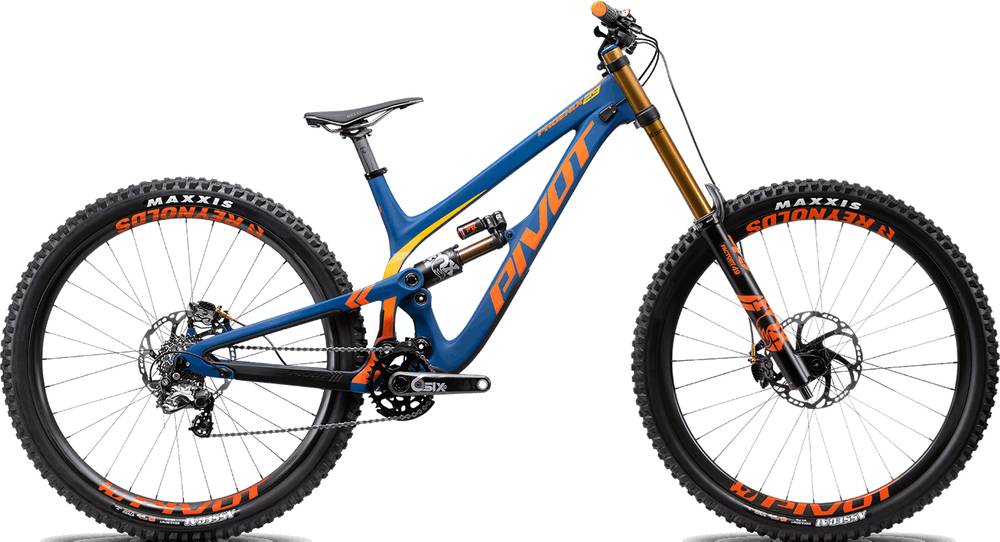

Pivot Phoenix 29 Race Zee w/ Factory Fork 2020
2020 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Fork Fox Factory Float 40
-
Groupset Zee, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 – 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Zee 10-Speed
Shift Levers
Shimano Zee M640 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face Atlas 36t
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Zee M640 4-piston
Disk Rotors
Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Phoenix 29 Race Zee w/ Factory Fork completes the Pivot Phoenix model. Pivot launched 35 bikes of this model so far. You can easily view all of the Pivot Phoenix bikes models from 2020, here.
Model range prices
The most economical model, the Pivot Phoenix Race Zee 2020 has a starting price of 3899$. Pivot Phoenix 29 Pro Saint 2020 on the other hand is the most expensive at 7599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
Our math shows that the average cost of a dependable Downhill bike is 3391$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Downhill bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6499$. If we compare this with the average Downhill bike cost we notice that the price is 91.65% higher.
Overview of components
Fork
The Phoenix 29 Race Zee w/ Factory Fork comes factory-installed with the Fox Factory Float 40 fork. This has a travel range of 203mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Phoenix 29 Race Zee w/ Factory Fork 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Phoenix 29 Race Zee w/ Factory Fork comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Phoenix 29 Race Zee w/ Factory Fork comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
