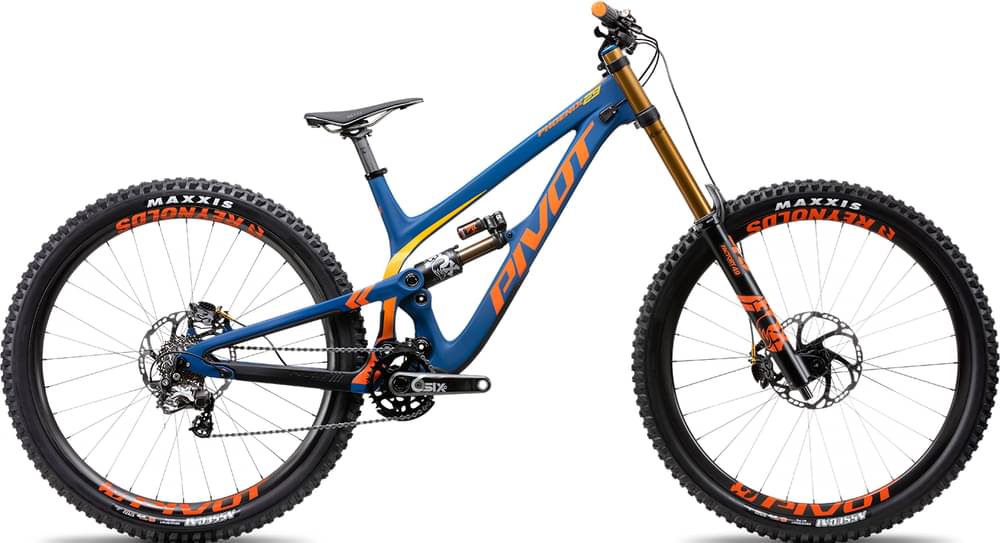

Pivot Phoenix 29 Race Zee w/ Factory Fork 2021
2021 Mountain
Estimate price |
6,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset Saint, Zee -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 - 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint M820 10-Speed
Shift Levers
Shimano Zee M640 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face Atlas 34t
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29" 20x110 F/12x157 R
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Disk Rotors
Shimano SLX RT66 6-bolt - 203mm Shimano SLX RT66 6-bolt - 203mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail Trail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Phoenix 29 Race Zee w/ Factory Fork completes the Pivot Phoenix model. There are 35 bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Pivot Phoenix 29 Race Zee 2021 is the most affordable bike of this model and has a price of 6199$. On the other hand, Pivot Phoenix 29 Pro Saint w/ Carbon Wheels 2021, is the most expensive and costs 9349$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 6999$. Doing a quick comparison, we notice that Phoenix 29 Race Zee w/ Factory Fork price is 106.4% higher than the average cost of a Downhill bike.
Overview of components
Fork
This bike has the Fox Factory Float 40 fork installed. The fork’s travel is 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Phoenix 29 Race Zee w/ Factory Fork bike has the Fox Factory Float X2 model installed, and has a travel of 190mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The Phoenix 29 Race Zee w/ Factory Fork 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Phoenix 29 Race Zee w/ Factory Fork is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Phoenix 29 Race Zee w/ Factory Fork comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
