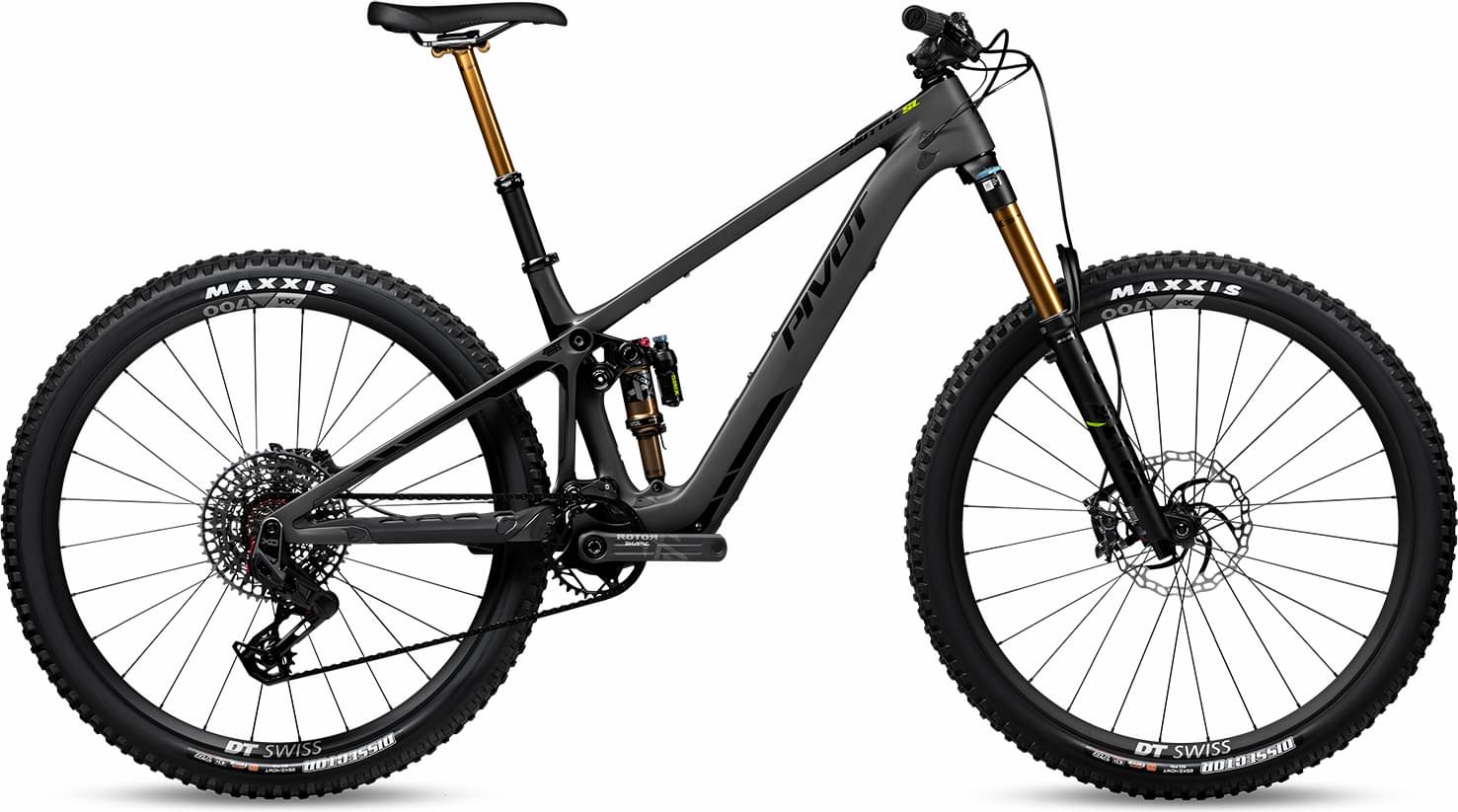

Pivot Shuttle SL Pro X0 Eagle Transmission 2023
2023 E-bike
Estimate price |
10,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Fazua mid-drive -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle SL
Suspension Fork
Fox Factory E-MTB 36 29", 44mm offset, GRIP2 - 150mm
Rear Shock
Fox Factory Float X
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM X0 1295 Eagle Transmission 10-52t
Crank
ROTOR EKAPIC E-MTB 34t
Chain
SRAM X0 Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29"
15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon -780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Motor & Battery
Motor
FAZUA RIDE 60
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.34 mm | 1.32 mm | 1.28 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 755 mm | 792 mm | 807 mm | 835 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 127 mm | 127 mm | 127 mm | 126 mm |
| Stack | 612 mm | 628 mm | 632 mm | 644 mm |
| Reach | 437 mm | 467 mm | 480 mm | 502 mm |
| Top Tube Length | 600 mm | 634 mm | 648 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76.8 ° |
| Seat Tube Length | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 112 mm | 117 mm | 130 mm |
| Chainstay Length | 434 mm | 434 mm | 436 mm | 440 mm |
| Wheelbase | 1188 mm | 1225 mm | 1242 mm | 1274 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 667 mm | 670 mm | 676 mm | 680 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Shuttle SL Pro X0 Eagle Transmission is a Pivot E Shuttle Sl model. 9 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Pivot Shuttle SL Ride SLX/XT 2023 is the most affordable e-bike of this model and has a price of 8999$. On the other hand, Pivot Shuttle SL World Cup XTR 2023, is the most expensive and costs 13199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 10999$. Comparing this to the average Enduro e-bike price, we see that the price is 129.86% higher.
Overview of components
Fork
Pivot Shuttle SL Pro X0 Eagle Transmission 2023 e-bike is equipped with the Fox Factory Float 36 fork, and has 150mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Pivot Shuttle SL Pro X0 Eagle Transmission 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Shuttle SL Pro X0 Eagle Transmission is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Pivot Shuttle SL Pro X0 Eagle Transmission e-bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Shuttle SL Pro X0 Eagle Transmission. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
