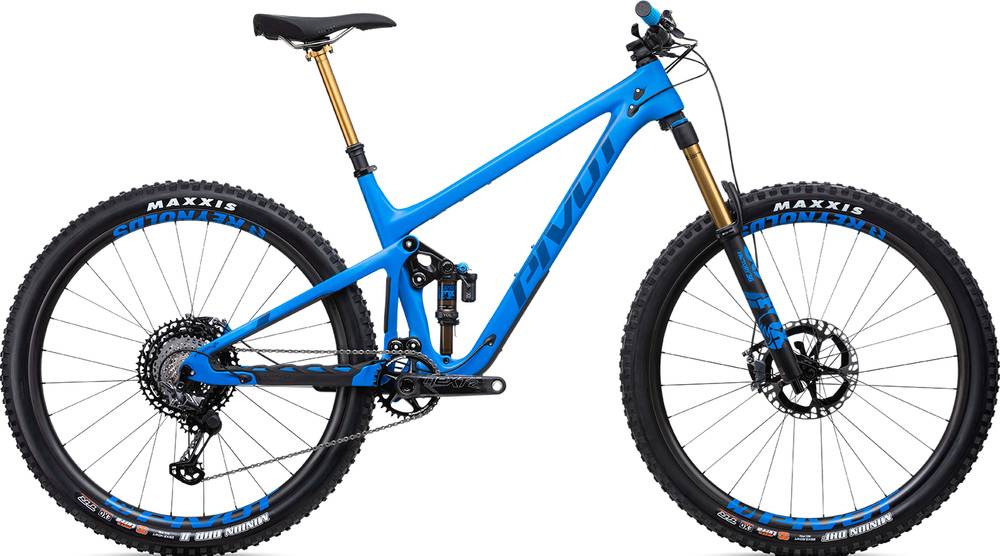

Pivot Switchblade Team XTR w/ Fox Live Valve – 29″ 2020
2020 Mountain
Estimate price |
10,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Factory Live 36 29", 44mm offset, FIT LIVE - 160mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-Piston
Disk Rotors
Shimano XTR CenterLock - 203mmShimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS-SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD), 175mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 604 mm | 608 mm | 619 mm | 624 mm | 635 mm |
| Reach | 404 mm | 424 mm | 449 mm | 464 mm | 484 mm |
| Top Tube Length | 563 mm | 586 mm | 614 mm | 632 mm | 655 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1141 mm | 1163 mm | 1187 mm | 1210 mm | 1235 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 642 mm | 662 mm | 688 mm | 690 mm | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade Team XTR w/ Fox Live Valve – 29″ is part of the Pivot Switchblade model. There are 108 bikes that carry this model name. Take a sneak peek at all Pivot Switchblade bikes models from 2020, by clicking here.
Model range prices
Pivot Switchblade Race XT – 29″ 2020 is the cheapest bike model and costs 5499$. Pivot Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ 2020 is the most expensive one and costs 12399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 10899$. Comparing the average cost of an Enduro bike to this one, you will see that Switchblade Team XTR w/ Fox Live Valve – 29″ price is 202.83% higher.
Switchblade Team XTR w/ Fox Live Valve – 29″ components
Fork
The Switchblade Team XTR w/ Fox Live Valve – 29″ comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Switchblade Team XTR w/ Fox Live Valve – 29″ model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Switchblade Team XTR w/ Fox Live Valve – 29″ has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
