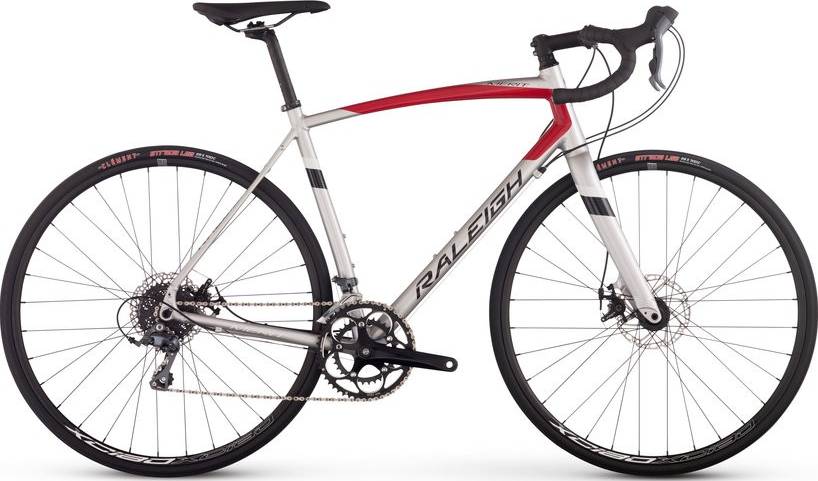

Raleigh Merit 2 2017
2017 Road
Estimate price |
849$
Weight | 10.66 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Double Butted Alloy Disc Frame with Thru-Axles
Suspension Fork
Custom Alloy SPF 1-1/8" to 1.5 taper, Thru-Axle with Post Disc Mounts
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 8spd STI, Shimano SP41 Shift Housing
Cassette
Shimano 8spd (11-32t)
Crank
Compact 34/50t
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC Z82
Pedals
Test Ride Pedals
Wheels
Front Hub
Formula Alloy Disc 15mm Thru-Axle
Rear Hub
Joytech Alloy Disc, 32H, 142x12mm Thru-Axle Cassette
Rims
Weinmann XC180 Double Wall 23mm Wide
Spokes
14g Stainless Steel
Tires
Clement Strada LGG 60TPI, 700x28c
Brakes
Brakes
TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors
Brake Levers
Shimano Claris STI
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8, 90/100/110mm
Handlebar
Raleigh 200 Series Road, 31.8 Short Drop, 40/42/44cm
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh 200 series Saddle
Seatpost
Alloy Micro Adjust 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.5 mm | 1.5 mm | 1.51 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 258 mm | 261 mm | 261 mm | 263 mm | 263 mm | 263 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 547 mm | 567 mm | 583 mm | 599 mm | 614 mm | 629 mm |
| Reach | 375 mm | 378 mm | 388 mm | 396 mm | 403 mm | 413 mm |
| Top Tube Length | 540 mm | 550 mm | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 73 ° | 74 ° | 73.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 175 mm | 195 mm | 210 mm | 225 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Bottom Bracket Drop | 77 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 765 mm | 785 mm | 805 mm | 825 mm | 840 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Merit 2 completes the Raleigh Merit model. Raleigh launched 8 bikes of this model so far. Take a sneak peek at all Raleigh Merit bikes models from 2017, by clicking here.
Model range prices
Raleigh Merit 1 2017 is the most affordable bike of this model and has a price of 849$. On the other hand, Raleigh Merit Elite 2017, is the most expensive and costs 2599$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Endurance bikes
If you want an acceptable Endurance bike you should know that the average price is 2346$. However, you could also get a good Endurance bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Raleigh Merit 2 price was 849$. Doing a quick comparison, we notice that Merit 2 price is 176.33% lower than the average cost of an Endurance bike.
Average weight for Endurance bikes
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, Merit 2 has a weight of 10.66 kg (23.5 lbs). In short, the average Endurance bike weight is 30% lower than this one.
Merit 2 components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Merit 2 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
