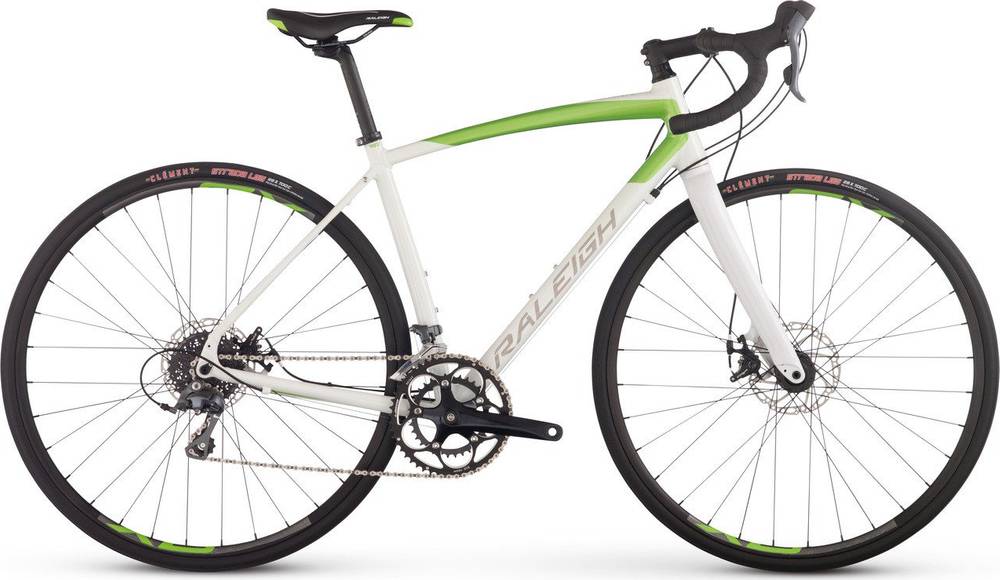

Raleigh Revere 2 (2018) 2017
2017 Road
Estimate price |
1,299$
Weight | 10.52 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Women's Specific AL-6061 Double Butted Alloy Disc Frame with Thru-Axles
Suspension Fork
Custom Alloy SPF 1-1/8" to 1.5 taper, Thru-Axle with Post Disc Mounts
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Shimano Claris
Shift Levers
Shimano Claris 8spd STI, Shimano SP41 Shift Housing
Cassette
Shimano 8spd (11-32t)
Crank
Compact 34/50t
Bottom Bracket
Sealed Cartridge Square Taper
Chain
KMC Z82
Pedals
Test Ride Pedals
Wheels
Front Hub
Formula Alloy Disc 15mm Thru-Axle
Rear Hub
Joytech Alloy Disc, 32H, 142x12mm Thru-Axle Cassette
Rims
Weinmann XC180 Double Wall 23mm Wide
Spokes
14g Stainless Steel
Tires
Clement Strada LGG 60TPI, 700x28c
Brakes
Brakes
TRP Spyre C dual actuated mechanical disc brakes, w/160mm rotors
Brake Levers
Shimano Claris STI
Cockpit
Stem
Raleigh 7° 3D Forged, 31.8, 90/100/110mm
Handlebar
Raleigh 200 Series Road, 31.8 Short Drop, 40/42/44cm
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh 200 series Saddle
Seatpost
Alloy Micro Adjust 27.2x300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 50cm | 52cm | 54cm | 56cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.44 mm | 1.51 mm | 1.52 mm | 1.54 mm |
| Bottom Bracket Height | 263 mm | 263 mm | 263 mm | 266 mm | 266 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 502 mm | 527 mm | 548 mm | 562 mm | 583 mm |
| Reach | 362 mm | 365 mm | 364 mm | 370 mm | 378 mm |
| Top Tube Length | 501 mm | 516 mm | 526 mm | 541 mm | 556 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 460 mm | 485 mm | 510 mm | 535 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 105 mm | 130 mm | 150 mm | 165 mm | 185 mm |
| Chainstay Length | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 706 mm | 731 mm | 756 mm | 776 mm | 801 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model
Revere 2 (2018) is a Raleigh Revere model. 6 bikes variations carry this model name so far. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Raleigh Revere 2 2017 is the most affordable bike of this model and has a price of 799$. On the other hand, Raleigh Revere 3 2017, is the most expensive and costs 1299$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2017 for 1299$. In conclusion, this bike price is 80.6% lower than the price of the average Endurance bike.
Average weight for Endurance bikes
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Revere 2 (2018) weighs 10.52 kg (23.19 lbs) and is much heavier than the average. In short, the average Endurance bike weight is 28.29% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on Revere 2 (2018) are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Revere 2 (2018) comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
