Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105, Praxis -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AL-6061 Alloy Gravel, Thru-Axle, Disc Tabs, Taper HT
Suspension Fork
Carbon/Alloy Tapered Steerer, Thru-Axle, Disc Post Mount
Drivetrain
Rear Derailleur
Shimano 105 RD-5800, 11 Speed
Front Derailleur
Shimano 105 FD-5801
Shift Levers
Shimano 105 ST-5800, 11 Speed
Cassette
Shimano 105 11 Speed, 11-32
Crank
Praxis Works Alba M30, 48/32, Direct Mount
Bottom Bracket
Praxis Works M30 External Bearings
Chain
KMC X11EL-1
Pedals
Resin Platform Pedal
Wheels
Front Hub
Alloy Disc, Cartridge Bearing, 15mm Thru Axle, 28 Hole
Rear Hub
Alloy Disc, Cartridge Bearing, Thru Axle, 28 Hole
Rims
HED Tomcat Disc, 28 Hole, Tubless Compatible
Spokes
14g Stainless with Brass Nipples
Tires
Clement X'PLOR MSO, 700x40c, 60TPI
Brakes
Brakes
TRP Spyre Mechanical Disc, 160mm Rotors
Brake Levers
Shimano 105
Cockpit
Stem
HED Eroica, 31.8, Lengths:/90/100/110/mm
Handlebar
HED Eroica, 31.8 with 16 Degree Flare, 38/40/42/44/46
Headset
Integrated Cartridge Bearings
Seat
Saddle
Raleigh Series Saddle with Chromo Rail
Seatpost
HED Eroica, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.51 mm | 1.51 mm | 1.56 mm | 1.56 mm | 1.56 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 598 mm | 598 mm | 614 mm | 619 mm | 634 mm | 650 |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 68 mm | 67 mm | 67 mm | 64 mm | 64 mm | 64 mm |
| Stack | 554 mm | 571 mm | 585 mm | 608 mm | 622 mm | 641 mm |
| Reach | 383 mm | 377 mm | 388 mm | 390 mm | 400 mm | 410 mm |
| Top Tube Length | 535 mm | 550 mm | 565 mm | 580 mm | 595 mm | 610 mm |
| Seat Tube Angle | 74.3 ° | 73 ° | 73 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 120 mm | 140 mm | 155 mm | 180 mm | 195 mm | 215 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1032 mm | 1032 mm | 1048 mm | 1054 mm | 1069 mm | 1085 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 775 mm | 795 mm | 810 mm | 830 mm | 850 mm | 870 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

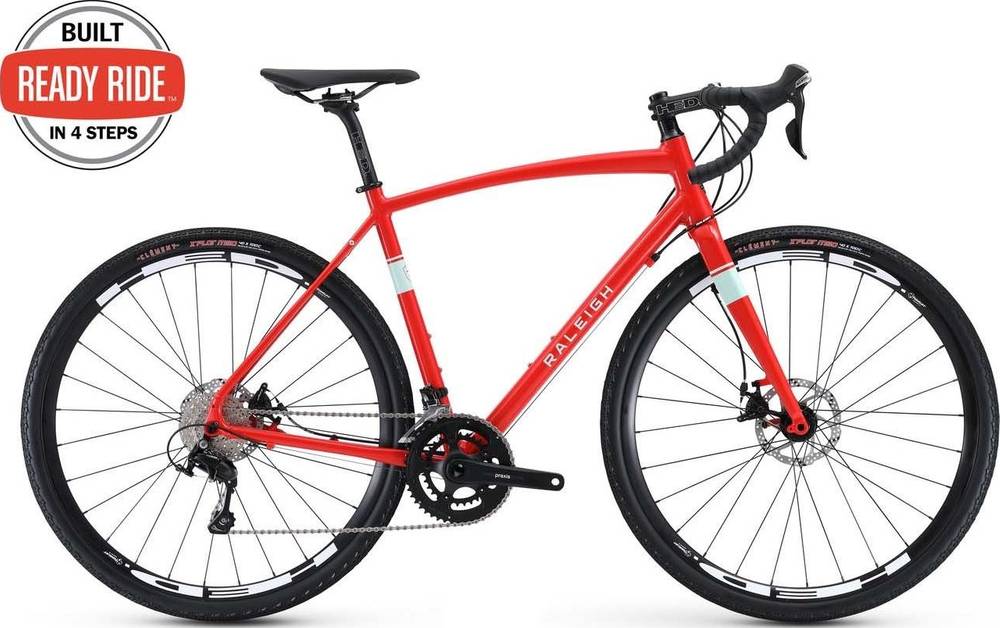

Willard 4 belongs to the Raleigh Willard model. Raleigh released 12 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Raleigh Willard 1 2018 is the most economical model, with a starting price of 849$. Raleigh Willard 3 2018 on the other hand costs 1399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2018 and its price was 1299$. In conclusion, this bike price is 89.53% lower than the price of the average Gravel bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Willard 4 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Raleigh Willard 4 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
