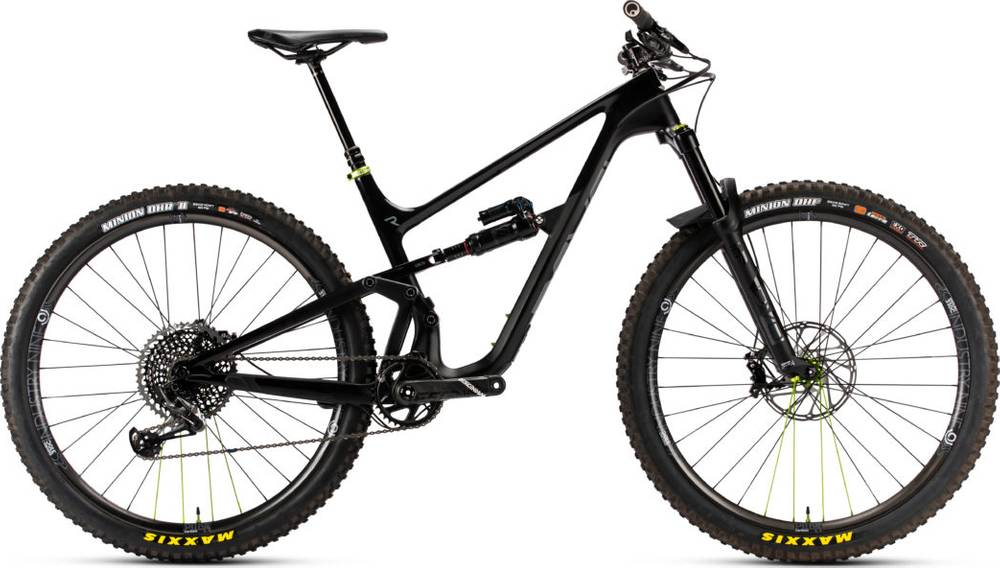

Revel Rascal – X01 Eagle 2020
2020 Mountain
Estimate price |
7,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, Truvativ Descendant Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Pike Ultimate RCT3 140mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle
Cassette
SRAM X01 Eagle
Crank
SRAM Descendant Carbon DUB 170mm or 175mm 32t(options available at checkout)
Bottom Bracket
Threaded (73mm English threaded)
Chain
SRAM X01 Eagle
Chain Guide
Custom Revel guide included
Wheels
Rims
RW30 Industry 9 1/1 Wheelset (options available at checkout)
Tires
Maxxis Minion DHF 29? x 2.5? EXO+ Front, Maxxis DHR II 29? x 2.4? EXO+ Rear
Brakes
Brakes
SRAM G2 RSC
Disk Rotors
Avid Centerline 180mm
Cockpit
Stem
Truvativ Descendant 31.8mm x 40mm
Handlebar
ENVE M6 Carbon 31.8mm x 780mm
Grips
Ergon GE10 Black
Headset
CaneCreek 40-series IS42/IS52
Seat
Saddle
Ergon SM10 Standard Black
Seatpost
Crank Brothers Highline 7 or 2020 Rockshox Reverb Stealth 1x 31.6 x 150mm, 175mm or 200mm(options available at checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 335 mm | 335 mm |
| Front Center | 752 mm | 772 mm | 790 mm | 817 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 602 mm | 612 mm | 620 mm | 630 mm |
| Reach | 426 mm | 446 mm | 466 mm | 491 mm |
| Top Tube Length | 590 mm | 612 mm | 635 mm | 662 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 415 mm | 445 mm | 475 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 96 mm | 107 mm | 116 mm | 127 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1184 mm | 1204 mm | 1222 mm | 1249 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Rascal – X01 Eagle completes the Revel Rascal model. Revel released 28 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Revel Rascal – GX Eagle 2020 is the most affordable bike of this model and has a price of 4999$. On the other hand, Revel Rascal – XX1 Eagle AXS 2020, is the most expensive and costs 9999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 7199$. If we compare this with the average Trail bike cost we notice that the price is 160.64% higher.
Overview of components
Fork
Revel Rascal – X01 Eagle 2020 bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Rascal – X01 Eagle model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Rascal – X01 Eagle has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Revel Rascal – X01 Eagle comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
