Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Revel Gravel Fork 12×100 47mm
Drivetrain
Rear Derailleur
Shimano GRX RX812
Shift Levers
Shimano GRX RX810 11spd
Cassette
Shimano GRX M8000 11 Speed
Crank
Shimano GRX RX810 172.5mm 40T
Bottom Bracket
BSA 68mm English Threaded
Chain
Shimano GRX HG701
Wheels
Rims
Industry Nine 700c 1/1 GRCX Centerlock (*upgrade available)
Tires
Maxxis Rambler 700x40c
Brakes
Brakes
Shimano GRX RX810
Disk Rotors
Shimano GRX RT-MT800 Centerlock 160mm
Cockpit
Stem
Zipp Service Course SL 80 or 90mm
Handlebar
Zipp Service Course SL 70 XPLR 44cm
Grips
Lizard Skins Tape 2.5mm Black
Headset
IS42 Upper / IS52 Lower
Seat
Saddle
WTB Volt CroMo Black
Seatpost
Revel Carbon Seat Post 27.2 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 606 mm | 624 mm | 639 mm | 654 mm | 672 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Stack | 534 mm | 559 mm | 579 mm | 599 mm | 624 mm |
| Reach | 396 mm | 406 mm | 414 mm | 422 mm | 432 mm |
| Top Tube Length | 539 mm | 556 mm | 569 mm | 582 mm | 599 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 490 mm | 520 mm | 550 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 110 mm | 136 mm | 157 mm | 178 mm | 205 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1015 mm | 1033 mm | 1048 mm | 1063 mm | 1081 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

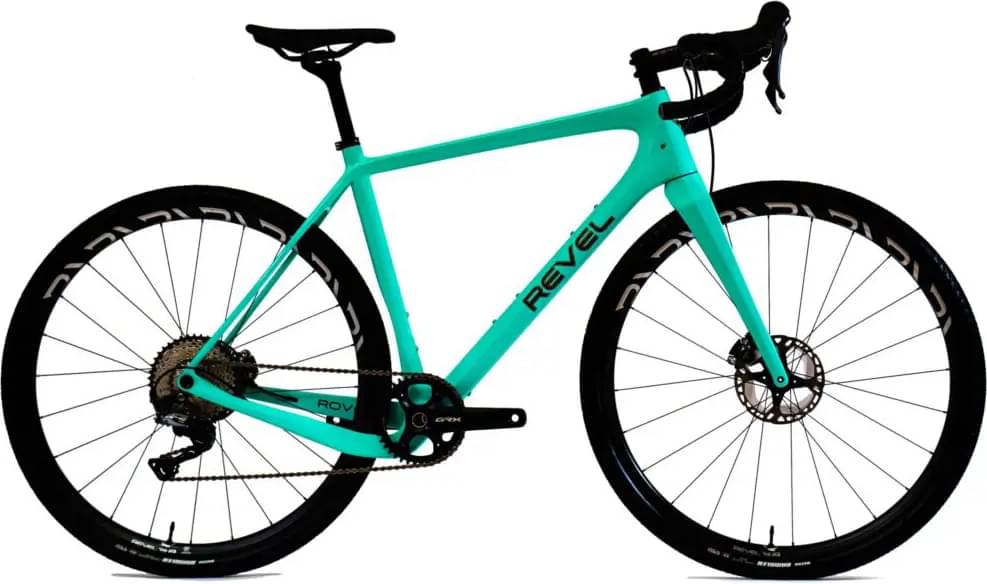

Rover – SHIMANO GRX belongs to the Revel Rover model. Revel released 16 bikes variations of this model so far. Take a sneak peek at all Revel Rover bikes models from 2022, by clicking here.
Model range prices
Revel Rover – Sram Rival 2022 is the most economical model, with a starting price of 3999$. Revel Rover SRAM RED AXS KIT 2022 on the other hand costs 8199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Revel released this model in 2022, its price was 4600$. Comparing the average cost of a Gravel bike to this one, you will see that Rover – SHIMANO GRX price is 86.84% more expensive.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on Rover – SHIMANO GRX are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Revel Rover – SHIMANO GRX has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
