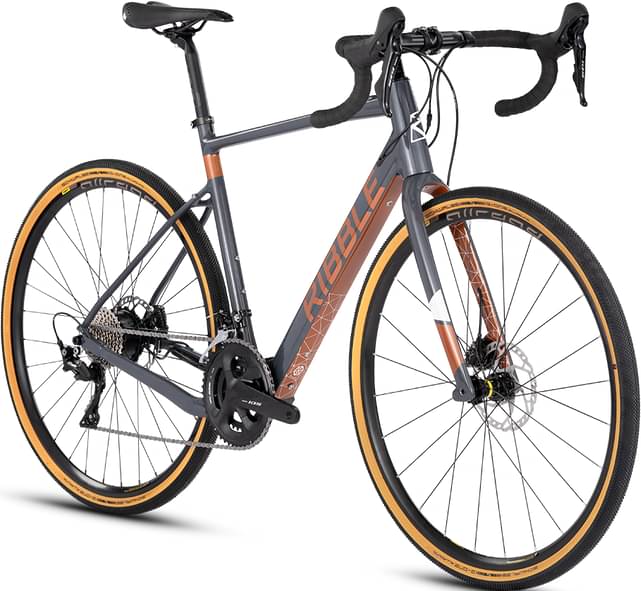

Ribble CGR AL e – Enthusiast, Shimano 105 2022
2022 E-bike
Estimate price |
4,147$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic I250 18650GA-10S/2P, 250Wh. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed 11-32T<./div>, Chain - Shimano 105 R7000 11-Speed Super Narrow. Front Derailleur - Shimano 105 R7000 Braze-On. Rear Derailleur - Shimano 105 R7000 Medium Cage. Disc Rotors - Shimano RT-66 6-Bolt 160mm.
Crank
Shimano 105 R7000, 2x11, 50-34T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano 105 R7000 11-Speed Super Narrow.
Wheels
Rims
Mavic Allroad Disc Alloy, 12x100F/12x142R.
Tires
Schwalbe G-One Allround TR, 700x40c, Tan Wall.
Brakes
Brakes
Shimano 105 R7070 Flat Mount Hydraulic Disc.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+, M1, 250W.
Battery
Panasonic I250 18650GA-10S/2P, 250Wh.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL e – Enthusiast, Shimano 105 is part of the Ribble E Cgr model. There are 33 e-bikes that carry this model name. You can easily view all of the Ribble E Cgr e-bikes models from 2022, here.
Model range prices
Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 is the cheapest e-bike model and costs 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 is the most expensive one and costs 4135$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 3770$. Comparing this to the average Gravel e-bike price, we see that the price is 3.51% higher.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the CGR AL e – Enthusiast, Shimano 105 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL e – Enthusiast, Shimano 105 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Ribble CGR AL e – Enthusiast, Shimano 105 e-bike has 5 sizes, in the range of 162 cm – 194 cm (5.31 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
