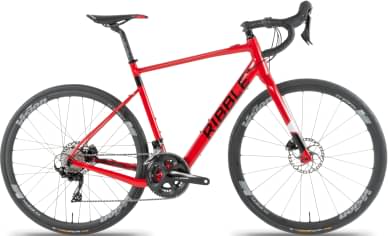

Ribble CGR AL e – Shimano 105 2022
2022 E-bike
Estimate price |
3,143$
Weight | 13.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon,Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Shift Levers
Shimano 105 R7020 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-32T
Crank
Shimano 105 R7000 50-34T .
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano HG601 11 Speed.
Wheels
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x142.
Tires
Continental Ultra Sport III Wire Bead, 700x28c, Black.
Brakes
Brakes
Shimano 105 R7070 Hydraulic Disc.
Disk Rotors
Shimano 105 R7000 Braze-On.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied With UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
Model Overview
CGR AL e – Shimano 105 is a Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. You can easily view all of the Ribble E Cgr e-bikes models from 2022, here.
Model range prices
The most economical model, the Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 has a starting price of 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 on the other hand is the most expensive at 4135$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2909$. Comparing this to the average Gravel e-bike price, we see that the price is 25.2% smaller.
Average weight for Gravel e-bikes
If we make a quick analysis of the average weight of a Gravel e-bike, we get 13.58 kg (29.94 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, CGR AL e – Shimano 105 has a weight of 13.3 kg (29.32 lbs). To sum up, it’s 2.11% lighter than the average weight of Gravel e-bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The CGR AL e – Shimano 105 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble CGR AL e – Shimano 105 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
CGR AL e – Shimano 105 comes in 5 sizes, that range from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
