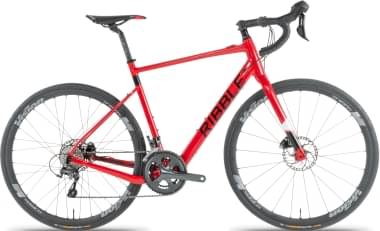

Ribble CGR AL e – Shimano Tiagra 2022
2022 E-bike
Estimate price |
3,344$
Weight | 13.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Tiagra, FSA -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 Medium Cage.
Shift Levers
Shimano Tiagra 4700 11-Speed.
Cassette
Shimano HG500 10-Speed 11-32T
Crank
FSA Omega MegaExo, 19mm, 50-34T.
Bottom Bracket
FSA MegaExo BB86.
Chain
Shimano HG54 10-Speed.
Wheels
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x142 Bolt-On Rear.
Tires
Continental Ultra Sport III Wire Bead, 700x28c, Black.
Brakes
Brakes
Tektro MD510 Mechanical Disc.
Disk Rotors
Shimano Tiagra 4700 Braze-On.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL e – Shimano Tiagra is a Ribble E Cgr model. 33 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 is the cheapest e-bike model and costs 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 is the most expensive one and costs 4135$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3040$. Comparing the average cost of a Gravel e-bike to this one, you will see that CGR AL e – Shimano Tiagra price is 19.8% smaller.
Average weight for Gravel e-bikes
Gravel e-bikes have an average weight of 13.58 kg (29.94 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, CGR AL e – Shimano Tiagra has a weight of 13.8 kg (30.42 lbs). In other words, this model is 1.62% heavier than the average Gravel e-bike.
CGR AL e – Shimano Tiagra components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the CGR AL e – Shimano Tiagra e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CGR AL e – Shimano Tiagra has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This e-bike is available in 5 sizes. They vary from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
