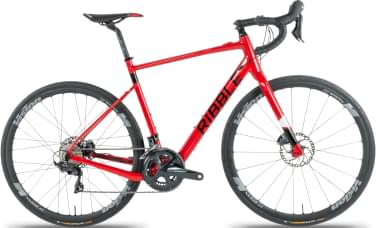

Ribble CGR AL e – Shimano Ultegra 2022
2022 E-bike
Estimate price |
3,480$
Weight | 13.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano Ultegra R8000 11-Speed.
Front Derailleur
Shimano Ultegra R8000 Braze-On.
Shift Levers
Shimano Ultegra R8020 11-Speed Hydraulic.
Cassette
Shimano Ultegra R8000 11-Speed.
Crank
Shimano Ultegra R8000 2x11 Speed .
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano HG701 11-Speed.
Wheels
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x142.
Tires
Continental Ultra Sport III Rigid, 700x28c, Black.
Brakes
Brakes
Shimano Ultegra R8070 Hydraulic Disc.
Disk Rotors
Shimano RT66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Black.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK or US Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm | 280 mm | 280 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 69 mm | 67 mm | 63 mm | 60 mm | 62 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL e – Shimano Ultegra is a Ribble E Cgr model. 33 e-bikes variations carry this model name so far. Take a sneak peek at all Ribble E Cgr e-bikes models from 2022, by clicking here.
Model range prices
Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 is the most affordable e-bike of this model and has a price of 2494$. On the other hand, Ribble CGR AL e – Pro, Shimano Ultegra 2022, is the most expensive and costs 4135$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3221$. Comparing this to the average Gravel e-bike price, we see that the price is 13.07% smaller.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.1 kg (28.88 lbs), the CGR AL e – Shimano Ultegra model is slightly lighter than average. In other words, this model is 3.66% lighter than the average Gravel e-bike.
CGR AL e – Shimano Ultegra components
Fork material
CGR AL e – Shimano Ultegra has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the CGR AL e – Shimano Ultegra e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL e – Shimano Ultegra is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Ribble CGR AL e – Shimano Ultegra e-bike has 5 sizes, in the range of 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, you won’t have a problem finding one that suits you.
