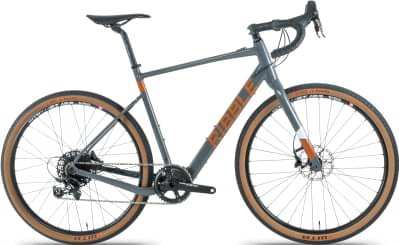

Ribble CGR AL e – SRAM Apex 1x 2022
2022 E-bike
Estimate price |
3,030$
Weight | 13.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Groupset Apex, Apex 1 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
162cm - 171cm
SM
169cm - 176cm
MD
174cm - 181cm
LG
179cm - 186cm
XL
184cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
CGR AL e Disc, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex, 1x11, Long cage.
Shift Levers
SRAM Apex 1 HRD LH, Apex HRD RH.
Cassette
SRAM PG-1130 11-Speed, 11-42T.
Crank
SRAM Apex 1 GXP, 1x11, 42T.
Bottom Bracket
SRAM GXP Team Pressfit BB86.
Chain
SRAM PC-1110 11-Speed with Powerlock.
Wheels
Rims
Mavic Allroad 650b DCL,12x100F/12x142.
Tires
WTB Horizon Road Plus TCS, 650bx47, Tan Wall.
Brakes
Brakes
SRAM Apex HRD Hydraulic Disc.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Stem
LEVEL 1 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL 52, 42-52mm, Tapered.
Seat
Saddle
Prologo Kappa RS, Black.
Seatpost
LEVEL 1 6061 Alloy, Black.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1 250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.5 mm | 1.55 mm | 1.59 mm | 1.57 mm |
| Front Center | 595 mm | 605 mm | 611 mm | 616 mm | 630 mm |
| Rake | 51 mm | 50 mm | 51 mm | 51 mm | 49 mm |
| Trail | 63 mm | 61 mm | 57 mm | 54 mm | 56 mm |
| Stack | 558 mm | 570 mm | 591 mm | 612 mm | 622 mm |
| Reach | 367 mm | 379 mm | 382 mm | 385 mm | 397 mm |
| Top Tube Length | 522 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 510 mm | 530 mm | 555 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 140 mm | 150 mm | 170 mm | 190 mm | 200 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1023 mm | 1033 mm | 1038 mm | 1043 mm | 1057 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 162 cm | 169 cm | 174 cm | 179 cm | 184 cm |
| Rider Max Height | 171 cm | 176 cm | 181 cm | 186 cm | 194 cm |
About this model
CGR AL e – SRAM Apex 1x belongs to the Ribble E Cgr model. Ribble released 33 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 is the cheapest e-bike model and costs 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 is the most expensive one and costs 4135$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ribble CGR AL e – SRAM Apex 1x price was 2805$. If we compare this with the average Gravel e-bike cost we notice that the price is 29.84% smaller.
Gravel e-bikes average weight
If we make a quick analysis of the average weight of a Gravel e-bike, we get 13.58 kg (29.94 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Ribble CGR AL e – SRAM Apex 1x it’s weighing 13.6 kg (29.98 lbs). At this weight, is slightly heavier than average. In conclusion, the average Gravel e-bike weighs 0.15% less than CGR AL e – SRAM Apex 1x.
Overview of components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When leaving the production line, the CGR AL e – SRAM Apex 1x model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 5 sizes. They vary from 162 cm – 194 cm (5.31 ft – 6.36 ft). In conclusion, it won’t take much to find one that’s right for you.
