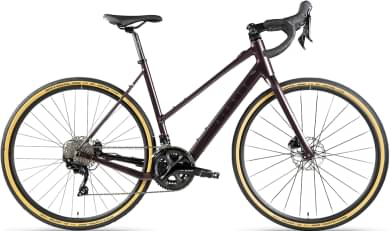

Ribble CGR AL e Step Through – Enthusiast, Shimano 105 2022
2022 E-bike
Estimate price |
3,143$
Weight | 13.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Heat Treated Aluminium, Seamless Weld.
Suspension Fork
CGR AL e Step Through, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
Shimano 105 R7000 Medium Cage.
Front Derailleur
Shimano 105 R7000 Braze-On.
Shift Levers
Shimano 105 R7000 11-Speed Hydraulic.
Cassette
Shimano 105 R7000 11-Speed 11-32T.
Crank
Shimano 105 R7000 50-34T.
Bottom Bracket
Shimano Press Fit BB71-41B, 86.5x41.
Chain
Shimano HG601 11-Speed.
Pedals
Plastic Flat Platform, Black.
Wheels
Front Hub
MAHLE Smartbike Systems X35+ M1, 36V/250W.
Rear Hub
MAHLE Smartbike Systems X35+ M1, 36V/250W.
Rims
Mavic Ksyrium S Disc UST, 12x100F/12x142 Bolt-On Rear.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Shimano 105 BR-7070 Hydraulic Disc.
Disk Rotors
Shimano RT-66 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL 1 6061 Alloy, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royal Vivo Ergo Sport, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Motor & Battery
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with US or UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 280 mm | 280 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
About this model
CGR AL e Step Through – Enthusiast, Shimano 105 is part of the Ribble E Cgr model. There are 33 e-bikes that carry this model name. You can easily view all of the Ribble E Cgr e-bikes models from 2022, here.
Model range prices
The most economical model, the Ribble CGR AL e Step Through – Sport, Shimano Tiagra 2022 has a starting price of 2494$. Ribble CGR AL e – Pro, Shimano Ultegra 2022 on the other hand is the most expensive at 4135$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel e-bikes
According to our calculations, the average cost of a Gravel e-bike that is reliable is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Ribble CGR AL e Step Through – Enthusiast, Shimano 105 price was 2909$. Comparing the average cost of a Gravel e-bike to this one, you will see that CGR AL e Step Through – Enthusiast, Shimano 105 price is 25.2% smaller.
Average weight for Gravel e-bikes
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, CGR AL e Step Through – Enthusiast, Shimano 105 has a weight of 13.8 kg (30.42 lbs). To sum up, it’s 1.62% heavier than the average weight of Gravel e-bikes.
CGR AL e Step Through – Enthusiast, Shimano 105 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the CGR AL e Step Through – Enthusiast, Shimano 105 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Ribble CGR AL e Step Through – Enthusiast, Shimano 105 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 2 sizes. They vary from 155 cm – 180 cm (5.09 ft – 5.91 ft). In short, it won’t be difficult to find the right one for you.
