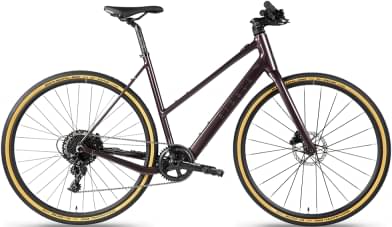

Ribble Hybrid AL e Step Through 2022
2022 E-bike
Estimate price |
2,582$
Weight | 13.75 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Apex, Apex 1 -
Suspension Rigid -
Motor MAHLE 250W hub-drive -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Weld.
Suspension Fork
Hybrid AL e ST, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex 1x11-Speed Long Cage.
Shift Levers
SRAM Apex 11-Speed R/H Flat Bar.
Cassette
SRAM PG-1130 11-Speed 11-42T.
Crank
SRAM Apex 1 GXP, 1x11, 42T.
Bottom Bracket
SRAM GXP Team Press Fit BB86.
Chain
SRAM PC-1110 11-Speed with Powerlock.
Pedals
Flat Plastic, Black.
Wheels
Rims
Mavic Allroad Disc UST, 12x100F/12x142mm.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Tektro HD-R280 Hydraulic Disc.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL Urban 6061 Alloy, 640mm, Black.
Grips
LEVEL Lock-On Urban Gel, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royal Vivo Ergo Sport, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm, Black.
Motor & Battery
Motor
MAHLE SmartBike Systems X35+ M1, 36V/250W.
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
Model Overview
Hybrid AL e Step Through belongs to the Ribble E Hybrid model. Ribble released 14 e-bikes variations of this model so far. Take a sneak peek at all Ribble E Hybrid e-bikes models from 2022, by clicking here.
Model range prices
Ribble Hybrid AL e – Standard Edition 2022 is the most economical model, with a starting price of 2286$. Ribble Hybrid AL e Trail, SRAM Apex 1x 2022 on the other hand costs 3161$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Ribble Hybrid AL e Step Through price was 2390$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Hybrid AL e Step Through price is 3.77% lower.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Hybrid AL e Step Through has a weight of 13.75 kg (30.31 lbs). In other words, this model is 73.02% lighter than the average Hybrid e-bike.
Hybrid AL e Step Through components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the Hybrid AL e Step Through model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 2 sizes available for this model. Rider height can be anywhere between 155 cm – 180 cm (5.09 ft – 5.91 ft). In conclusion, finding one for you shouldn’t be a problem.
