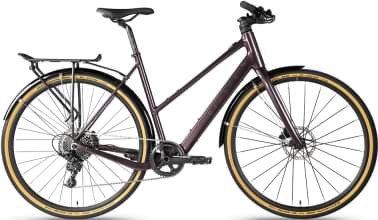

Ribble Hybrid AL e Step Through, Fully Loaded Edition 2022
2022 E-bike
Estimate price |
2,694$
Weight | 15 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Apex, Apex 1 -
Suspension Rigid -
Battery Panasonic 36V/250Wh, 18650GA-10S/2P. -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 169cm
MD/LG
167cm - 180cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Suspension Fork
Hybrid AL e, Full Carbon, Tapered Steerer.
Drivetrain
Rear Derailleur
SRAM Apex, 1x11, Long Cage.
Shift Levers
SRAM Apex 11-Speed R/H Flat Bar.
Cassette
SRAM PG-1130 11-Speed 11-42T.
Crank
SRAM Apex 1 GXP, 1x11, 42T.
Bottom Bracket
SRAM GXP Team Press Fit BB86.
Chain
SRAM PC-1110 11-Speed with Powerlock.
Pedals
Flat Plastic, Black.
Wheels
Front Hub
MAHLE SmartBike Systems X35+ M1, 36V/250W.
Rear Hub
MAHLE SmartBike Systems X35+ M1, 36V/250W.
Rims
Mavic Allroad Disc UST, 12x100F/12x142mm.
Tires
Schwalbe G-One, Tubeless-Ready, 700x40mm, Black/Tan.
Brakes
Brakes
Tektro HD-R280 Hydraulic Disc.
Disk Rotors
SRAM Centreline 6-Bolt 160mm.
Cockpit
Stem
LEVEL 2 3D-Forged 6061 Alloy, Black.
Handlebar
LEVEL Urban 6061 Alloy, 640mm, Black.
Grips
LEVEL Urban Lock-On, Black.
Headset
LEVEL H56 Integrated, Black.
Seat
Saddle
Selle Royal Vivo Ergo Sport, Black.
Seatpost
LEVEL 1 6061 Alloy, 27.2mm, 350mm, Black.
Motor & Battery
Battery
Panasonic 36V/250Wh, 18650GA-10S/2P.
Charger
Supplied with UK Power Cable.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | MD/LG |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.53 mm |
| Front Center | 596 mm | 627 mm |
| Rake | 51 mm | 50 mm |
| Trail | 69 mm | 71 mm |
| Stack | 549 mm | 578 mm |
| Reach | 357 mm | 379 mm |
| Top Tube Length | 512 mm | 542 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 520 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° |
| Head Tube Length | 140 mm | 170 mm |
| Chainstay Length | 427 mm | 427 mm |
| Wheelbase | 1013 mm | 1045 mm |
| Bottom Bracket Drop | 69 mm | 69 mm |
| Wheels | 700 | 700 |
| Rider Min Height | 155 cm | 167 cm |
| Rider Max Height | 169 cm | 180 cm |
About this model
Hybrid AL e Step Through, Fully Loaded Edition completes the Ribble E Hybrid model. 14 e-bikes variations carry this model name so far. Take a sneak peek at all Ribble E Hybrid e-bikes models from 2022, by clicking here.
Model range prices
The most economical model, the Ribble Hybrid AL e – Standard Edition 2022 has a starting price of 2286$. Ribble Hybrid AL e Trail, SRAM Apex 1x 2022 on the other hand is the most expensive at 3161$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Ribble Hybrid AL e Step Through, Fully Loaded Edition price was 2494$. Comparing this to the average Hybrid e-bike price, we see that the price is 0.56% higher.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 15 kg (33.07 lbs), the Hybrid AL e Step Through, Fully Loaded Edition model is much lighter than average. In conclusion, the average Hybrid e-bike weighs 58.6% more than Hybrid AL e Step Through, Fully Loaded Edition.
Hybrid AL e Step Through, Fully Loaded Edition components
Fork material
Hybrid AL e Step Through, Fully Loaded Edition has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The Hybrid AL e Step Through, Fully Loaded Edition 2022 e-bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Ribble Hybrid AL e Step Through, Fully Loaded Edition has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Ribble Hybrid AL e Step Through, Fully Loaded Edition e-bike has 2 sizes, in the range of 155 cm – 180 cm (5.09 ft – 5.91 ft). In conclusion, finding one for you shouldn’t be a problem.
