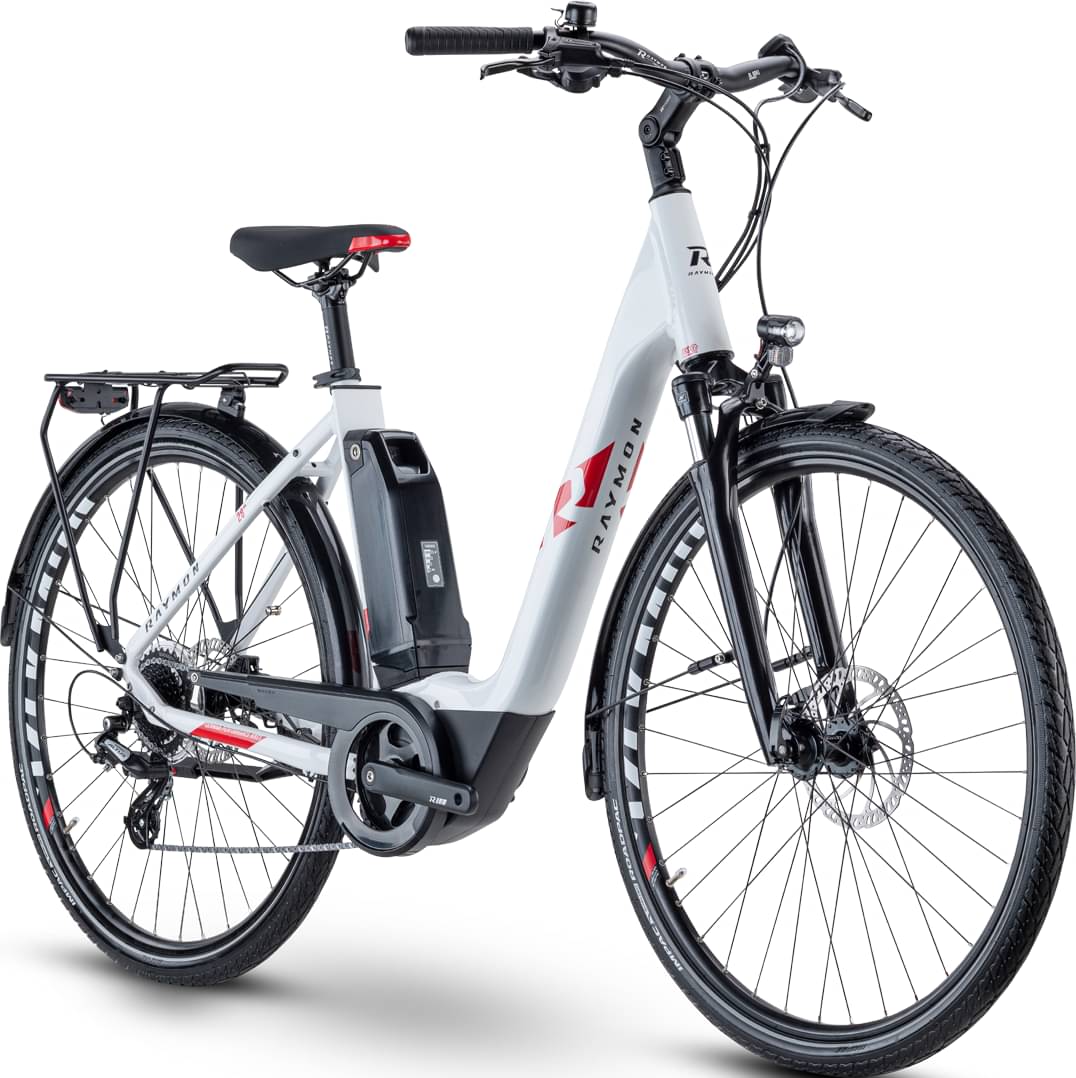

rraymon R RAYMON CityRay E 1.0 500 2021
2021 E-bike
Estimate price |
3,024$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Altus -
Suspension Hardtail -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25, Coil, 50 mm
Drivetrain
Rear Derailleur
Shimano Altus, RD-M310, 8-S
Shift Levers
Integrated into display
Cassette
Shimano CS-HG31, 11-34 T
Crank
R Raymon, 38 T
Chain
KMC X8
Pedals
R Raymon, aluminum
Wheels
Rims
Shimano CS-HG31, 11-34 T
Tires
Impac Roadpac, Reflex, 47-559, 26x1.85
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Seatpost
R Raymon, 30.9 mm
Motor & Battery
Motor
Yamaha PW-CE, 250 W, 50 Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.62 mm |
| Front Center | 681 mm | 691 mm | 702 mm |
| Rake | 49 mm | 48 mm | 49 mm |
| Trail | 75 mm | 76 mm | 75 mm |
| Stack | 661 mm | 671 mm | 680 mm |
| Reach | 407 mm | 414 mm | 421 mm |
| Top Tube Length | 627 mm | 637 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay E 1.0 500 completes the Rraymon E Cityray model. There are 21 e-bikes that carry this model name. You can easily view all of the Rraymon E Cityray e-bikes models from 2021, here.
Model range prices
R RAYMON CityRay E 1.0 2021 is the cheapest e-bike model and costs 2653$. R RAYMON CityRay E 7.0 CB 2021 is the most expensive one and costs 3397$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2021 and its price was 2760$. Comparing this to the average Commuter e-bike price, we see that the price is 7.43% more expensive.
CityRay E 1.0 500 components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the CityRay E 1.0 500 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CityRay E 1.0 500 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
R RAYMON CityRay E 1.0 500 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
