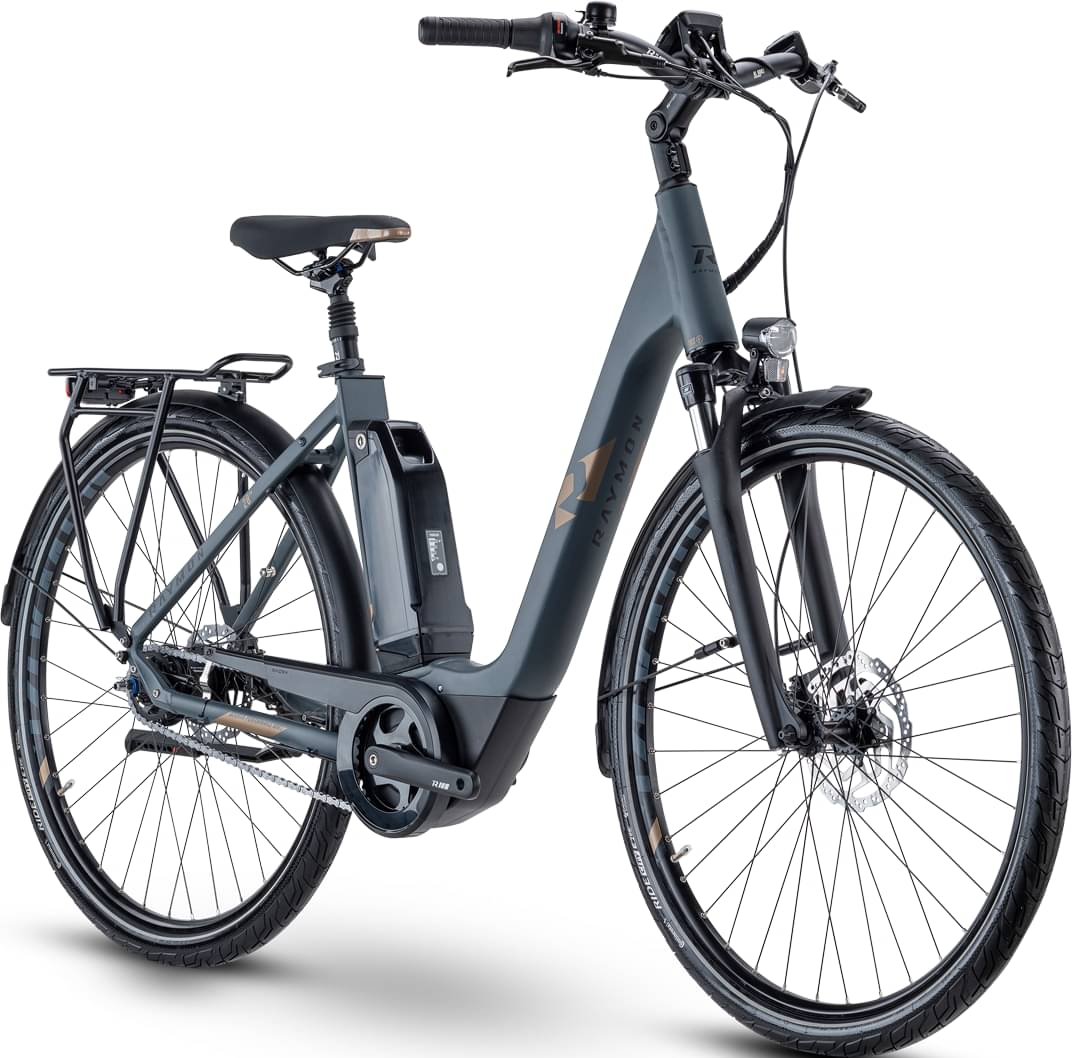

rraymon R RAYMON CityRay E 6.0 FW 2021
2021 E-bike
Estimate price |
3,373$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha EX500, 500 Wh, 36 V -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
26", Alloy 6061, External battery
Suspension Fork
SR SUNTOUR NEX-E25
Drivetrain
Shift Levers
Shimano Nexus, SL-C7000-5, Revoshift, 5-speed
Chain
KMC Z1 EPT
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 630E, Front Hub: Shimano HB-TX505, 9x100mm, Rear Hub: Shimano SG-C7000-5D
Tires
Continental Ride City, Reflex, 47-622, 28x1.75
Brakes
Brakes
Shimano BR-MT200, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, lowerable
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha EX500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.62 mm |
| Front Center | 681 mm | 691 mm | 702 mm |
| Rake | 49 mm | 48 mm | 49 mm |
| Trail | 75 mm | 76 mm | 75 mm |
| Stack | 661 mm | 671 mm | 680 mm |
| Reach | 407 mm | 414 mm | 421 mm |
| Top Tube Length | 627 mm | 637 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 500 mm | 540 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 484 mm | 484 mm | 484 mm |
| Wheelbase | 1159 mm | 1169 mm | 1180 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CityRay E 6.0 FW belongs to the Rraymon E Cityray model. R RAYMON launched 21 e-bikes of this model so far. Take a sneak peek at all Rraymon E Cityray e-bikes models from 2021, by clicking here.
Model range prices
R RAYMON CityRay E 1.0 2021 is the most affordable e-bike of this model and has a price of 2653$. On the other hand, R RAYMON CityRay E 7.0 CB 2021, is the most expensive and costs 3397$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, even though the average price of a Commuter e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3078$. Comparing the average cost of a Commuter e-bike to this one, you will see that CityRay E 6.0 FW price is 19.81% higher.
CityRay E 6.0 FW components
Fork
The CityRay E 6.0 FW comes factory-installed with the Suntour NEX fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, R RAYMON CityRay E 6.0 FW 2021, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CityRay E 6.0 FW has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
