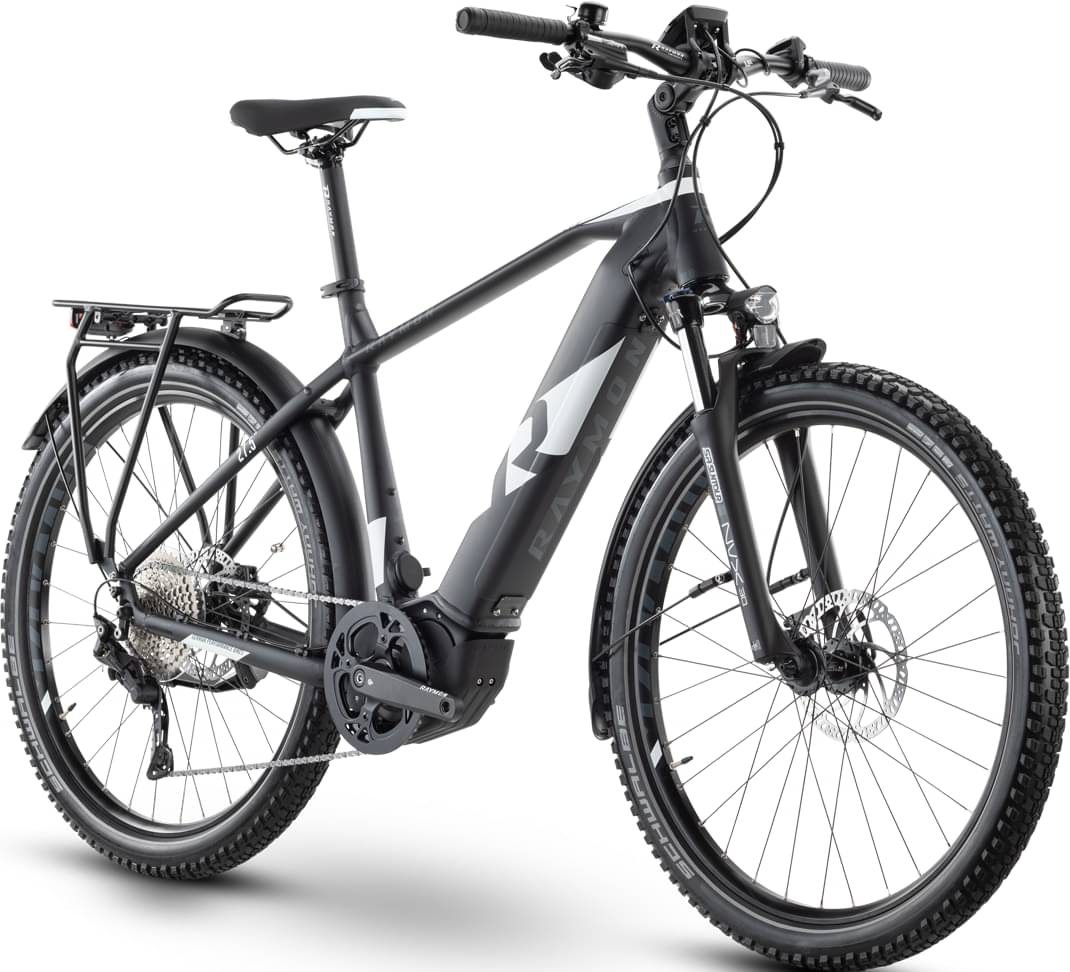

rraymon R RAYMON CrossRay E 6.0 2021
2021 E-bike
Estimate price |
3,669$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Fork Suntour -
Groupset Deore -
Suspension Hardtail -
Motor Yamaha 250W 70Nm mid-drive -
Battery Yamaha ML500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, Integrated battery
Suspension Fork
SR SUNTOUR NVX
Drivetrain
Rear Derailleur
Shimano Deore, RD-M4120, Shadow, 10-S
Shift Levers
Shimano Deore, SL-M4100, Rapidfire Plus, 10-speed
Cassette
Shimano CS-M4100, 11-42 T
Chain
KMC e10S
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Front Hub: R Raymon MD-JA159F, 9x100mm, Rear Hub: R Raymon MD-JA251R, 9x141mm
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35
Brakes
Brakes
Tektro HD-M500, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon 31.8 mm, 700 mm, Sweep: 9 °, Rise: 15 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-ST, 250W, 70Nm
Battery
Yamaha ML500, 500 Wh, 36 V
Remote
Yamaha Display C, LCD-Display, Bluetooth
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.39 mm | 1.38 mm | 1.37 mm |
| Front Center | 696 mm | 710 mm | 723 mm | 737 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 76 mm | 76 mm | 76 mm |
| Stack | 609 mm | 618 mm | 628 mm | 637 mm |
| Reach | 435 mm | 445 mm | 455 mm | 465 mm |
| Top Tube Length | 611 mm | 624 mm | 636 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 130 mm | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1160 mm | 1174 mm | 1187 mm | 1201 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CrossRay E 6.0 completes the Rraymon E Crossray model. R RAYMON released 13 e-bikes variations of this model so far. You can easily view all of the Rraymon E Crossray e-bikes models from 2021, here.
Model range prices
R RAYMON CrossRay E 4.0 2021 is the most economical model, with a starting price of 2972$. R RAYMON CrossRay E 8.0 2021 on the other hand costs 4246$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3397$. Doing a quick comparison, we notice that CrossRay E 6.0 price is 36.98% higher than the average cost of a Hybrid e-bike.
CrossRay E 6.0 components
Fork
This e-bike has the Suntour fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The CrossRay E 6.0 2021 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CrossRay E 6.0 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
