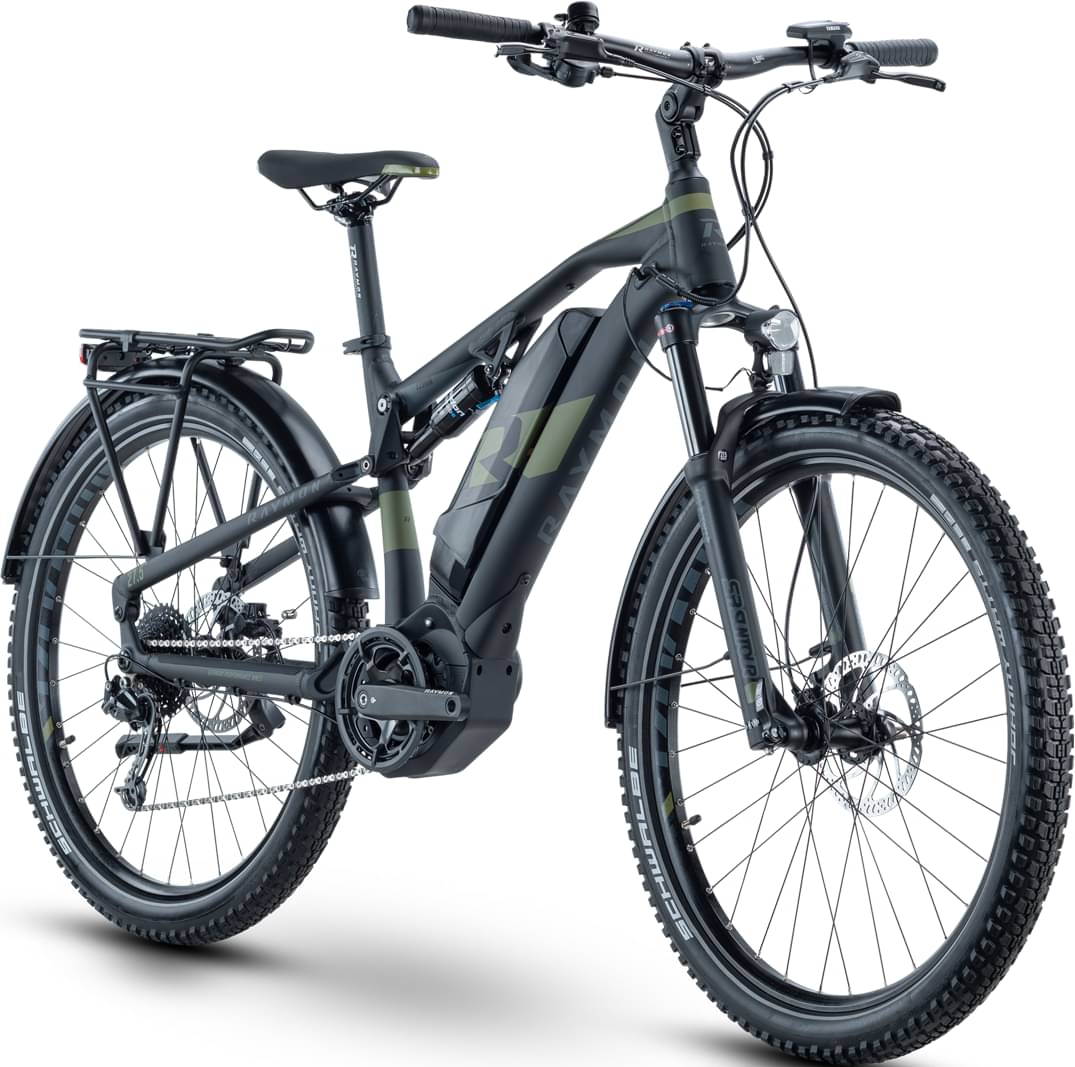

rraymon R RAYMON CrossRay E FS 4.0 2021
2021 E-bike
Estimate price |
3,554$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Travel Rear 120mm -
Fork Suntour XCR 34 -
Groupset Deore, Altus -
Suspension Full -
Motor Yamaha 250W 50Nm mid-drive -
Battery Yamaha DT500, 500 Wh, 36 V -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5", Alloy 6061, External battery, 120 mm
Suspension Fork
SR SUNTOUR XCR34 Boost LO
Rear Shock
SR SUNTOUR Raidon LO, 190x51 mm
Drivetrain
Rear Derailleur
Shimano Deore, RD-M592 Shadow, 9-S
Shift Levers
Shimano Altus, SL-M2010, Rapidfire Plus, 9-speed
Chain
KMC e9s
Pedals
R Raymon, Alloy
Wheels
Rims
Rim: Mach1 Trucky30, Hubs: R Raymon DA211, 15x110/12x148mm
Tires
Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5x2.35
Brakes
Brakes
Tektro HD-T275, 2-piston, Hydraulic disc brake
Cockpit
Stem
R Raymon 31.8, adjustable
Handlebar
R Raymon Ergo 31.8 mm, 640 mm, Sweep: 35 °, Rise: 25 mm
Grips
R Raymon Ergo, Lock-on grips
Seat
Saddle
R Raymon Ergo
Seatpost
R Raymon, 30.9 mm, Patent
Motor & Battery
Motor
Yamaha PW-CE, 250W, 50Nm
Battery
Yamaha DT500, 500 Wh, 36 V
Remote
Yamaha Display A, LCD-Display
Charger
Yamaha rapid charger, 4 A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.31 mm | 1.27 mm |
| Front Center | 709 mm | 730 mm | 750 mm | 771 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 88 mm | 88 mm | 88 mm | 88 mm |
| Stack | 609 mm | 614 mm | 618 mm | 623 mm |
| Reach | 433 mm | 452 mm | 470 mm | 489 mm |
| Top Tube Length | 606 mm | 626 mm | 646 mm | 666 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 125 mm | 130 mm | 135 mm | 140 mm |
| Chainstay Length | 483 mm | 483 mm | 483 mm | 483 mm |
| Wheelbase | 1192 mm | 1213 mm | 1233 mm | 1254 mm |
| Bottom Bracket Drop | 16 mm | 16 mm | 16 mm | 16 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CrossRay E FS 4.0 belongs to the Rraymon E Crossray model. 13 e-bikes variations carry this model name so far. Take a sneak peek at all Rraymon E Crossray e-bikes models from 2021, by clicking here.
Model range prices
The most economical model, the R RAYMON CrossRay E 4.0 2021 has a starting price of 2972$. R RAYMON CrossRay E 8.0 2021 on the other hand is the most expensive at 4246$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2021 and its price was 3290$. Comparing this to the average Hybrid e-bike price, we see that the price is 32.66% more expensive.
Overview of components
Fork
This e-bike has the Suntour XCR 34 fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the SR SUNTOUR Raidon LO rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the CrossRay E FS 4.0 e-bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
For your safety, it is important to have quality breaks on your bike. R RAYMON CrossRay E FS 4.0 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
