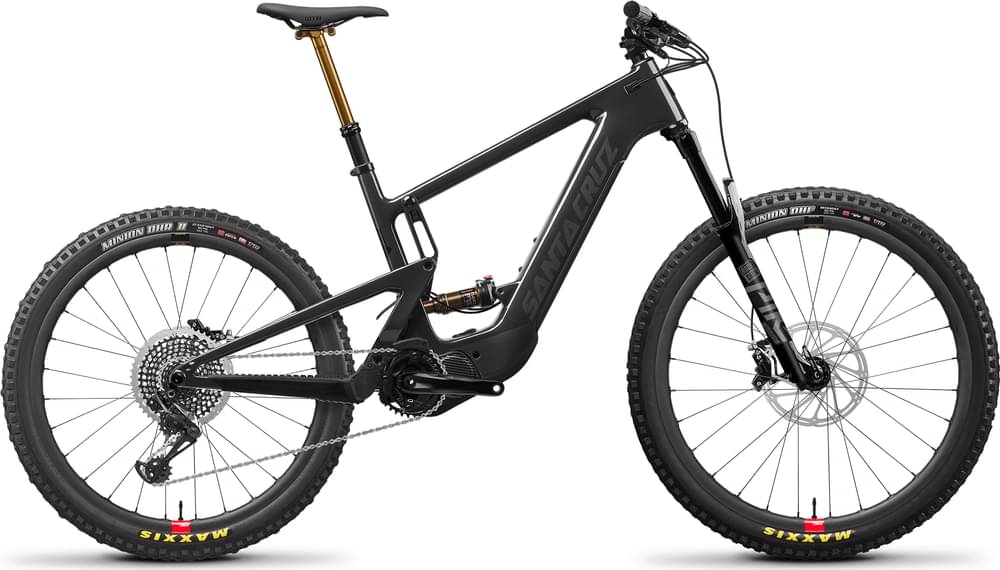

Santa Cruz Heckler X01 RSV / Carbon CC / MX 2021
2021 E-bike
Estimate price |
12,099$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
174cm - 187cm
XL
184cm - 194cm
XXL
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler X01 RSV / Carbon CC / MX
Suspension Fork
RockShox Pike Ultimate, 140mm, 29"
Rear Shock
FOX Float Factory DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Shift Levers
SRAM X01 Eagle Single Click, 12spd
Cassette
SRAM XG1295 Eagle, 12spd, 10-52t
Crank
Shimano EM900 HollowTech Crank Arms, 165mm
Chain
SRAM X01 Eagle 12 SPD
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT Swiss 350, 12x148, XD, 28h
Rims
Santa Cruz Reserve 30 V2 29" Carbon Rims / Santa Cruz Reserve 30 V2 27.5" Carbon Rims
Spokes
Sapim D-light
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO+
Brakes
Brakes
SRAM Code RSC
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Fox Transfer Factory
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit SC-EM800
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 763 mm | 790 mm | 821 mm | 865 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 618 mm | 632 mm | 646 mm | 669 mm |
| Reach | 441 mm | 461 mm | 486 mm | 510 mm |
| Top Tube Length | 603 mm | 628 mm | 657 mm | 690 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1240 mm | 1271 mm | 1306 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 749 mm | 747 mm | 762 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 177 cm | 187 cm | 194 cm | 200 cm |
Model Overview
Heckler X01 RSV / Carbon CC / MX is part of the Santacruz E Heckler model. There are 48 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz Heckler R / Carbon CC / MX 2021 has a starting price of 7699$. Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021 on the other hand is the most expensive at 12099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Santa Cruz Heckler X01 RSV / Carbon CC / MX price was 12099$. Comparing the average cost of a Trail e-bike to this one, you will see that Heckler X01 RSV / Carbon CC / MX price is 259.55% more expensive.
Heckler X01 RSV / Carbon CC / MX components
Fork
Santa Cruz Heckler X01 RSV / Carbon CC / MX 2021 e-bike is equipped with the RockShox Pike Ultimate fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX Float Factory DPS model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Heckler X01 RSV / Carbon CC / MX e-bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz Heckler X01 RSV / Carbon CC / MX is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 165 cm – 200 cm (5.41 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
