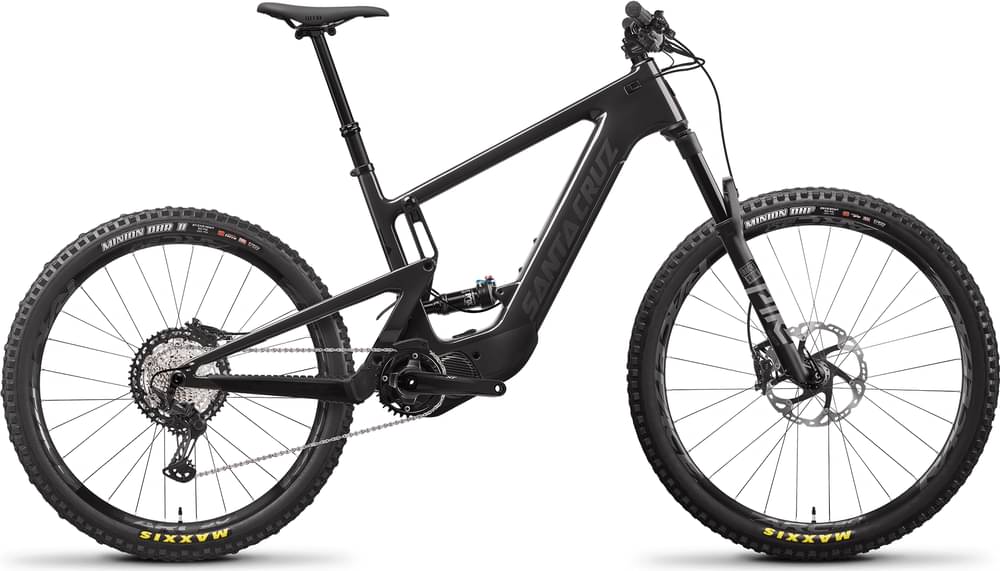

Santa Cruz Heckler XT / Carbon CC / MX 2021
2021 E-bike
Estimate price |
9,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" / 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Pike Select
-
Groupset XT -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano 504Wh Integrated -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
174cm - 187cm
XL
184cm - 194cm
XXL
192cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Heckler XT / Carbon CC / MX
Suspension Fork
RockShox Pike Select+, 140mm, 29"
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
Shimano XT M8100, 12spd
Shift Levers
Shimano XT M8100, 12spd
Cassette
Shimano XT M8100, 12spd, 10-51t
Crank
Shimano XT M8150 Crank Arms, 165mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT, 12spd
Chain Guide
E13 E-Spec+ AL
Wheels
Front Hub
DT Swiss 350, 15x110, 28h
Rear Hub
DT 350, 12x148, MicroSpline, 32h
Rims
RaceFace ARC Offset 30 29" Rim (F) / RaceFace ARC Offset 30 27.5" Rim (R)
Spokes
Sapim Race
Tires
Front: Maxxis Minion DHF 29"x2.5, 3C, MaxxGrip, EXO, TR, Rear: Maxxis Minion DHR II 27.5"x2.4", 3C, EXO+
Brakes
Brakes
Shimano XT 8120
Disk Rotors
Shimano XT, Ice Tech, Centerlock, 203mm
Cockpit
Stem
Burgtec Enduro MK3 42mm
Handlebar
Santa Cruz Bicycles Carbon Di2 Riser
Grips
Santa Cruz Palmdale Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Team Saddle
Seatpost
Fox Transfer Performance Elite
Motor & Battery
Motor
Shimano DU-EP800
Battery
Shimano 504Wh Integrated
Remote
Shimano Display Unit SC-EM800
Charger
Shimano Battery Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 348 mm |
| Front Center | 763 mm | 790 mm | 821 mm | 865 mm |
| Rake | 35 mm | 35 mm | 35 mm | 35 mm |
| Trail | 139 mm | 139 mm | 139 mm | 139 mm |
| Stack | 618 mm | 632 mm | 646 mm | 669 mm |
| Reach | 441 mm | 461 mm | 486 mm | 510 mm |
| Top Tube Length | 603 mm | 628 mm | 657 mm | 690 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 405 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 64.6 ° | 64.6 ° | 64.6 ° | 64.6 ° |
| Head Tube Length | 120 mm | 135 mm | 150 mm | 175 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1213 mm | 1240 mm | 1271 mm | 1306 mm |
| Bottom Bracket Drop | 6 mm | 6 mm | 6 mm | 6 mm |
| Standover Height | 749 mm | 747 mm | 762 mm | 744 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm | 192 cm |
| Rider Max Height | 177 cm | 187 cm | 194 cm | 200 cm |
Model Overview
Heckler XT / Carbon CC / MX belongs to the Santacruz E Heckler model. Santa Cruz launched 48 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Santa Cruz Heckler R / Carbon CC / MX 2021 has a starting price of 7699$. Santa Cruz Heckler X01 RSV / Carbon CC / 27.5 2021 on the other hand is the most expensive at 12099$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Santa Cruz released this model in 2021, its price was 9899$. Comparing this to the average Trail e-bike price, we see that the price is 194.18% higher.
Overview of components
Fork
Santa Cruz Heckler XT / Carbon CC / MX 2021 e-bike is equipped with the RockShox Pike Select fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float Performance Elite DPS model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Santa Cruz Heckler XT / Carbon CC / MX 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Heckler XT / Carbon CC / MX has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 165 cm – 200 cm (5.41 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Santa Cruz model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
