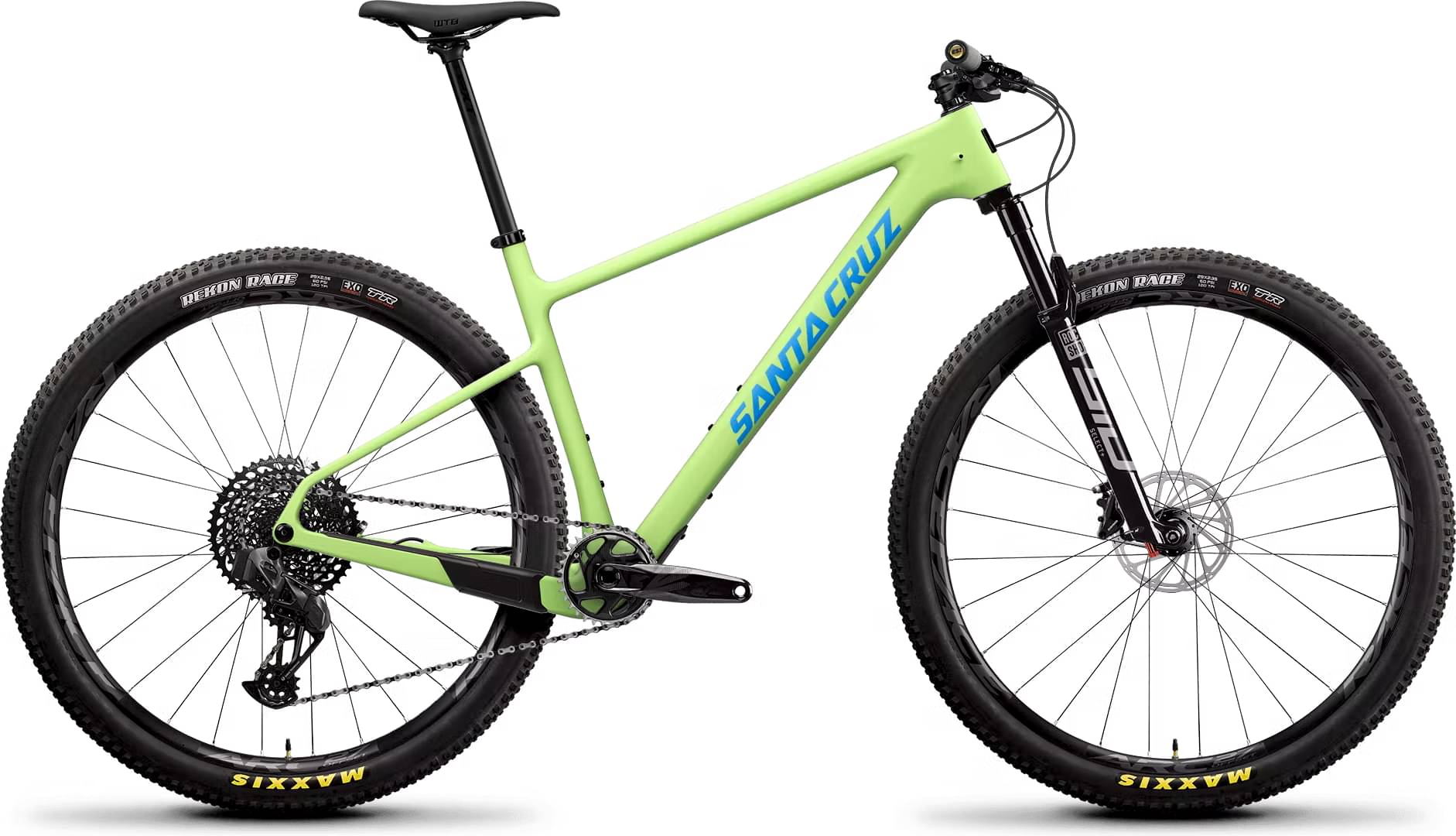

Santa Cruz HIGHBALL GX AXS / Carbon C 2023
2023 Mountain
Estimate price |
5,799$
Weight | 10.27 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Select
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 166cm
MD
164cm - 179cm
LG
177cm - 186cm
XL
184cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HIGHBALL GX AXS / Carbon C
Suspension Fork
RockShox Sid SL Select+, 100mm, w/Remote
Drivetrain
Rear Derailleur
SRAM GX AXS Eagle, 12spd
Shift Levers
GX AXS Controller
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Crank
SRAM GX Eagle 148 DUB, 34t
Bottom Bracket
SRAM DUB 68/73mm Threaded BB
Chain
SRAM GX Eagle, 12spd
Wheels
Front Hub
Front: i9 1/1, 15x110, Centerlock, 28h, Rear: i9 1/1, 12x148, XD, Centerlock, 28h
Rear Hub
Front: i9 1/1, 15x110, Centerlock, 28h, Rear: i9 1/1, 12x148, XD, Centerlock, 28h
Rims
Front: RaceFace ARC Offset 27 29", Rear: RaceFace ARC Offset 27 29"
Tires
Front: Maxxis Rekon Race 29"x2.35", EXO, TR, Rear: Maxxis Rekon Race 29"x2.35", EXO, TR
Brakes
Brakes
SRAM Level TL
Cockpit
Stem
SRAM Atmos 6k Stem, 70mm
Handlebar
Santa Cruz Bicycles Carbon, 760x7mm rise
Grips
ESI Chunky Grips
Headset
Cane Creek 40 IS Integrated Headset
Seat
Saddle
WTB Silverado Medium CroMo
Seatpost
RaceFace Next, 27.2, 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 313 mm | 313 mm | 313 mm | 313 mm |
| Front Center | 693 mm | 719 mm | 743 mm | 781 mm |
| Rake | 50 mm | 48 mm | 48 mm | 48 mm |
| Trail | 105 mm | 107 mm | 107 mm | 107 mm |
| Stack | 601 mm | 610 mm | 619 mm | 638 mm |
| Reach | 420 mm | 445 mm | 465 mm | 495 mm |
| Top Tube Length | 600 mm | 624 mm | 647 mm | 682 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 405 mm | 430 mm | 470 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1124 mm | 1150 mm | 1174 mm | 1212 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 712 mm | 709 mm | 744 mm | 760 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 164 cm | 177 cm | 184 cm |
| Rider Max Height | 166 cm | 179 cm | 186 cm | 198 cm |
About this model
HIGHBALL GX AXS / Carbon C is part of the Santacruz Highball model. Santa Cruz launched 49 bikes of this model so far. You can easily view all of the Santacruz Highball bikes models from 2023, here.
Model range prices
Santa Cruz HIGHBALL R / Carbon C 2023 is the most affordable bike of this model and has a price of 3549$. On the other hand, Santa Cruz HIGHBALL X01 AXS RSV / Carbon CC 2023, is the most expensive and costs 8299$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 5799$. If we compare this with the average Crosscountry bike cost we notice that the price is 204.41% more expensive.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
much lighter than average, HIGHBALL GX AXS / Carbon C has a weight of 10.27 kg (22.64 lbs). In other words, this model is 19.86% lighter than the average Crosscountry bike.
HIGHBALL GX AXS / Carbon C components
Fork
The fork installed on this bike is the RockShox SID SL Select model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Santa Cruz HIGHBALL GX AXS / Carbon C 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Santa Cruz HIGHBALL GX AXS / Carbon C is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
HIGHBALL GX AXS / Carbon C comes in 4 sizes, that range from 152 cm – 198 cm (4.99 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
