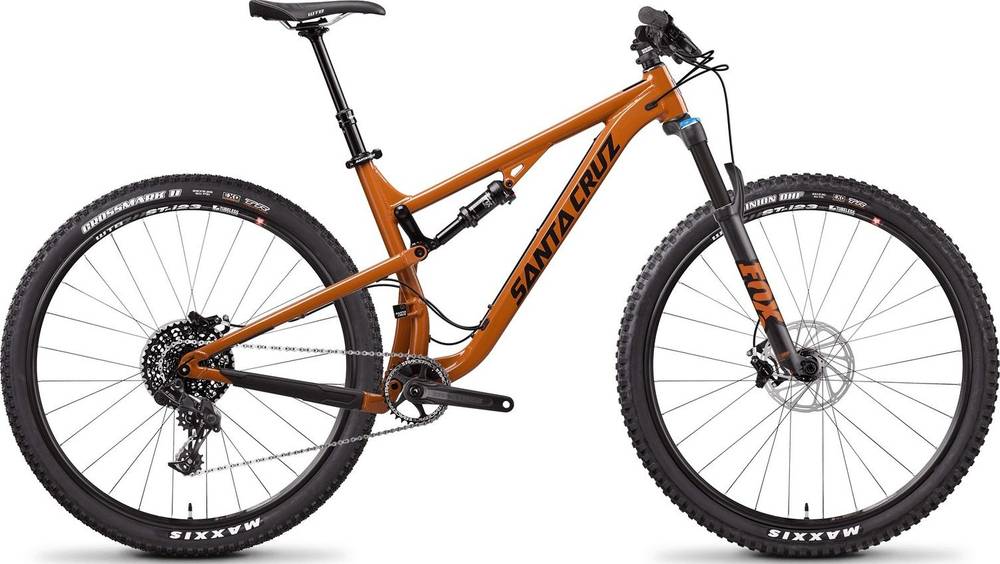

Santa Cruz Tallboy Aluminum R 2018
2018 Mountain
Estimate price |
3,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Rhythm Float 34
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Fox Rhythm 34
Rear Shock
Fox FLOAT Performance DPS
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11 speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM XG1150 CS, 10-42 tooth, 11 speed
Crank
Race Face Aeffect
Bottom Bracket
threaded
Chain
SRAM PC1110, 11 speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole
Rear Hub
Front: Novatec D711, 15mm x 110mm, 28 hole, Rear: Novatec D462, 12mm x 148mm, 28 hole
Rims
WTB ST i23 TCS
Spokes
DT Competition with Sapim secure lock brass nipples
Tires
Front: Maxxis Crossmark II, 2.25", DC EXO TR, Rear: Maxxis Minion 2.3" DHF EXO TR
Brakes
Brakes
SRAM Level T, 180mm Centerline rotors front and rear
Brake Levers
SRAM Level
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm wide
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 10
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Aeffect
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Tallboy Aluminum R completes the Santacruz Tallboy model. Santa Cruz released 64 bikes variations of this model so far. Take a sneak peek at all Santacruz Tallboy bikes models from 2018, by clicking here.
Model range prices
Santa Cruz Tallboy Aluminum D 2018 is the cheapest bike model and costs 2699$. Santa Cruz Tallboy Carbon CC XX1 2018 is the most expensive one and costs 9199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2018 and its price was 3299$. In conclusion, this bike price is 73.18% higher than the price of the average Crosscountry bike.
Tallboy Aluminum R components
Fork
The Fox Rhythm Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is Fox FLOAT Performance DPS, with a travel distance of 110mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Tallboy Aluminum R are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Santa Cruz Tallboy Aluminum R bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Tallboy Aluminum R. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
