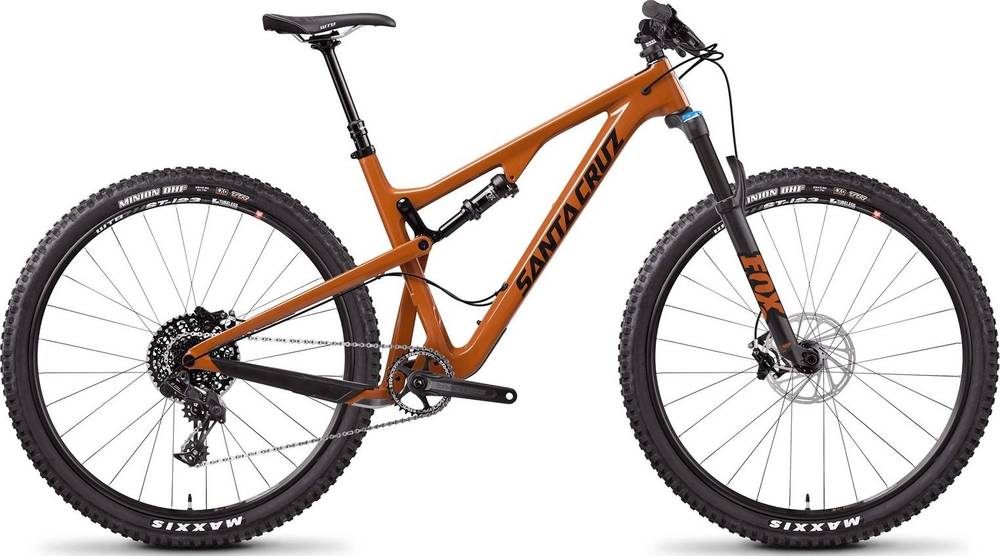

Santa Cruz Tallboy Carbon C R 2018
2018 Mountain
Estimate price |
3,899$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Rhythm Float 34
-
Groupset NX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Fox Rhythm 34
Rear Shock
Fox Float Performance DPS
Drivetrain
Rear Derailleur
SRAM NX, long cage, 11 speed
Front Derailleur
N/A
Shift Levers
SRAM NX, 11 speed
Cassette
SRAM XG1150 CS, 10-42 tooth, 11 speed
Crank
Race Face Aeffect
Bottom Bracket
threaded
Chain
SRAM PC1110, 11 speed
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D711, 15mm x 110mm, 32 hole, Rear: Novatec D462, 12mm x 148mm, 32 hole
Rear Hub
Front: Novatec D711, 15mm x 110mm, 32 hole, Rear: Novatec D462, 12mm x 148mm, 32 hole
Rims
WTB ST i23 TCS
Spokes
DT Competition with Sapim secure lock brass nipples
Tires
Front: Maxxis Crossmark II, 2.25", DC EXO TR, Rear: Maxxis Minion 2.3" DHF EXO TR
Brakes
Brakes
SRAM Level T, 180mm Centerline rotors front and rear
Brake Levers
SRAM Level T
Cockpit
Stem
Race Face Ride, 50mm
Handlebar
Race Face Ride, 35mm diameter, 760mm wide
Grips
Santa Cruz Palmdale, lock-on
Headset
Cane Creek 10
Seat
Saddle
WTB Volt Race
Seatpost
Race Face Aeffect
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm | 638 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm | 696 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm | 1238 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Tallboy Carbon C R completes the Santacruz Tallboy model. There are 64 bikes that carry this model name. Take a sneak peek at all Santacruz Tallboy bikes models from 2018, by clicking here.
Model range prices
Santa Cruz Tallboy Aluminum D 2018 is the most economical model, with a starting price of 2699$. Santa Cruz Tallboy Carbon CC XX1 2018 on the other hand costs 9199$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3899$. In conclusion, this bike price is 104.67% more expensive than the price of the average Crosscountry bike.
Tallboy Carbon C R components
Fork
The Tallboy Carbon C R comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Santa Cruz Tallboy Carbon C R bike has the Fox Float Performance DPS model installed, and has a travel of 110mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Tallboy Carbon C R are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Santa Cruz Tallboy Carbon C R comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
