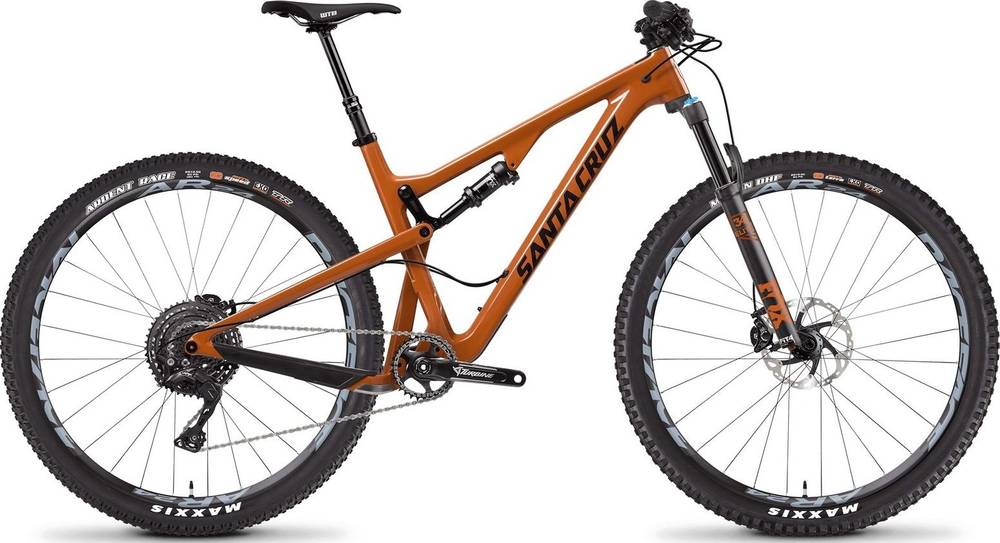

Santa Cruz Tallboy Carbon C XE 2018
2018 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 110mm -
Fork Fox Performance Elite Float 34
-
Groupset XT, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Float Performance Elite 34
Rear Shock
FOX Float Performance Elite DPS
Drivetrain
Rear Derailleur
Shimano XT M8000, 11 speed
Front Derailleur
N/A
Shift Levers
Shimano XT M8000, 11 speed
Cassette
e*thirteen TRS Race, 11 speed, 9-46 tooth
Crank
Race Face Turbine
Bottom Bracket
threaded
Chain
Shimano SLX M7000
Chain Guide
none
Pedals
none
Wheels
Front Hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole
Rear Hub
Front: Novatec D641, 15mm x 110mm, 32 hole, Rear: Novatec D642, 12mm x 148mm, 32 hole
Rims
Race Face AR 24, 32 hole
Spokes
DT Competition with Sapim secure lock silver nipples
Tires
Front: Maxxis Minion DHF, 2.3", 3c EXO TR, Rear: Maxxis Ardent Race, 2.35" EXO TR
Brakes
Brakes
Shimano XT M8000, 180mm Shimano Ice Tech rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Race Face Turbine, 50mm
Handlebar
Santa Cruz XC, 31.8mm diameter, 750 wide, flat
Grips
Santa Cruz Palmdale lock-on
Headset
Cane Creek 40, integrated
Seat
Saddle
WTB Silverado Pro
Seatpost
RockShox Reverb Stealth
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.4 mm | 1.33 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Stack | 601 mm | 610 mm | 610 mm | 624 mm | 638 mm |
| Reach | 412 mm | 437 mm | 457 mm | 482 mm | 512 mm |
| Top Tube Length | 581 mm | 610 mm | 630 mm | 660 mm | 696 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1123 mm | 1152 mm | 1172 mm | 1202 mm | 1238 mm |
| Bottom Bracket Drop | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Standover Height | 712 mm | 713 mm | 714 mm | 716 mm | 711 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Tallboy Carbon C XE completes the Santacruz Tallboy model. There are 64 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Santa Cruz Tallboy Aluminum D 2018 has a starting price of 2699$. Santa Cruz Tallboy Carbon CC XX1 2018 on the other hand is the most expensive at 9199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5499$. In conclusion, this bike price is 188.66% more expensive than the price of the average Crosscountry bike.
Tallboy Carbon C XE components
Fork
The fork installed on this bike is the Fox Performance Elite Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Tallboy Carbon C XE has a rear shock with a travel of 110mm. The model FOX Float Performance Elite DPS is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Tallboy Carbon C XE are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz Tallboy Carbon C XE has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the Tallboy Carbon C XE. Therefore, climbing or descending will be a breeze.
