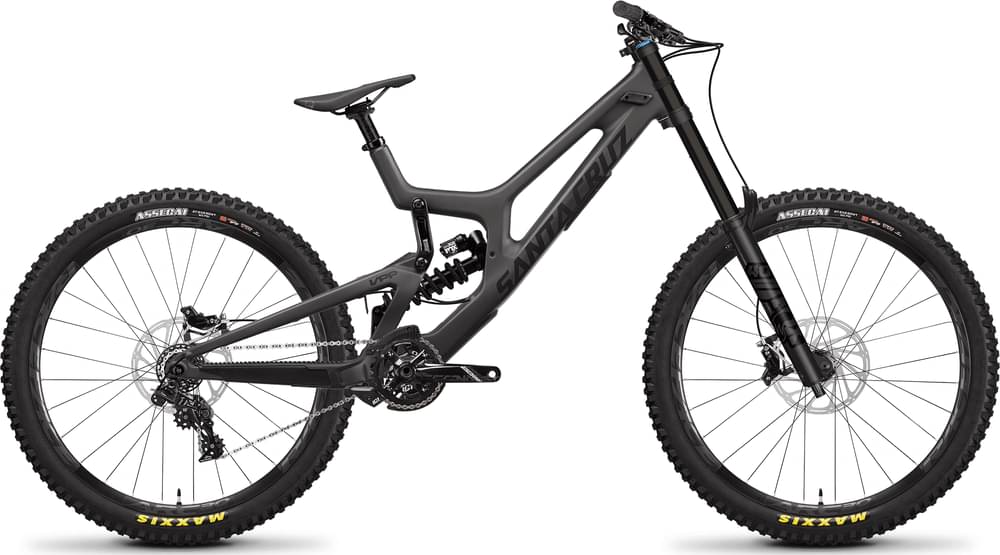

Santa Cruz V10 DH S / Carbon CC / 27.5 2021
2021 Mountain
Estimate price |
6,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 203mm -
Travel Rear 215mm -
Fork Fox Performance Float 40
-
Groupset GX, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM Low
154cm - 167cm
SM High
154cm - 167cm
MD Low
170cm - 177cm
MD High
170cm - 177cm
LG Low
175cm - 185cm
LG High
175cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
V10 DH S / Carbon CC / 27.5
Suspension Fork
Fox 40 Performance, 203mm, 27.5"
Rear Shock
Fox DHX2 Performance Elite Coil
Drivetrain
Rear Derailleur
SRAM GX DH, 7spd
Shift Levers
SRAM GX, 7spd
Cassette
SRAM PG720 DH, 11-25t
Crank
SRAM Descendant DH, 165mm, 36t
Bottom Bracket
SRAM DUB 83mm
Chain
SRAM PC1110, 11spd
Chain Guide
E.13 LG1
Wheels
Front Hub
DT Swiss 350, 20x110, Boost, 32h
Rear Hub
DT Swiss 350 ISO, 12x157, HG, 32h
Rims
RaceFace ARC HD 30 27.5" Rims
Spokes
Sapim Race
Tires
Front: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP, Rear: Maxxis Assegai 27.5"x2.5", 3C, MaxxGRIP
Brakes
Brakes
SRAM Code R
Disk Rotors
Avid Centerline 200mm
Cockpit
Stem
Santa Cruz Direct Mount
Handlebar
Burgtec RideWide DH Alloy
Grips
Burgtec Bartender Pro Grip Minnar
Headset
Cane Creek 40 Hellbender, ZS49 upper/ EC49 lower
Seat
Saddle
Fizik Alpaca Gravita X5
Seatpost
RaceFace Chester
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low | SM High | MD Low | MD High | LG Low | LG High |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.46 mm | 1.4 mm | 1.4 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 351 mm | 356 mm | 351 mm | 356 mm | 351 mm | 356 mm |
| Front Center | 769 mm | 769 mm | 798 mm | 798 mm | 825 mm | 825 mm |
| Rake | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm | 52 mm |
| Trail | 121 mm | 118 mm | 121 mm | 118 mm | 121 mm | 118 mm |
| Stack | 603 mm | 604 mm | 611 mm | 613 mm | 616 mm | 617 mm |
| Reach | 411 mm | 413 mm | 436 mm | 438 mm | 461 mm | 463 mm |
| Seat Tube Length | 435 mm | 435 mm | 445 mm | 445 mm | 455 mm | 455 mm |
| Head Tube Angle | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° | 63.3 ° | 63.7 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 110 mm | 115 mm | 115 mm |
| Chainstay Length | 431 mm | 431 mm | 436 mm | 436 mm | 441 mm | 441 mm |
| Wheelbase | 1201 mm | 1200 mm | 1235 mm | 1234 mm | 1267 mm | 1266 mm |
| Bottom Bracket Drop | 3 mm | -2 mm | 3 mm | -2 mm | 3 mm | -2 mm |
| Standover Height | 708 mm | 713 mm | 708 mm | 713 mm | 708 mm | 713 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 154 cm | 154 cm | 170 cm | 170 cm | 175 cm | 175 cm |
| Rider Max Height | 167 cm | 167 cm | 177 cm | 177 cm | 185 cm | 185 cm |
About this model
V10 DH S / Carbon CC / 27.5 completes the Santacruz V10 model. 36 bikes variations carry this model name so far. You can easily view all of the Santacruz V10 bikes models from 2021, here.
Model range prices
Santa Cruz V10 DH S / Carbon CC / 29 2021 is the cheapest bike model and costs 6599$. Santa Cruz V10 DH X01 / Carbon CC / 29 2021 is the most expensive one and costs 8799$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Downhill bikes average price
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, you could also get a good Downhill bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6599$. Doing a quick comparison, we notice that V10 DH S / Carbon CC / 27.5 price is 94.6% more expensive than the average cost of a Downhill bike.
Overview of components
Fork
This bike has the Fox Performance Float 40 fork installed. The fork’s travel is 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The V10 DH S / Carbon CC / 27.5 has a rear shock with a travel of 215mm. The model Fox DHX2 Performance Elite Coil is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The V10 DH S / Carbon CC / 27.5 2021 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Santa Cruz V10 DH S / Carbon CC / 27.5 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 154 cm – 185 cm (5.05 ft – 6.07 ft). In conclusion, it won’t take much to find one that’s right for you.
