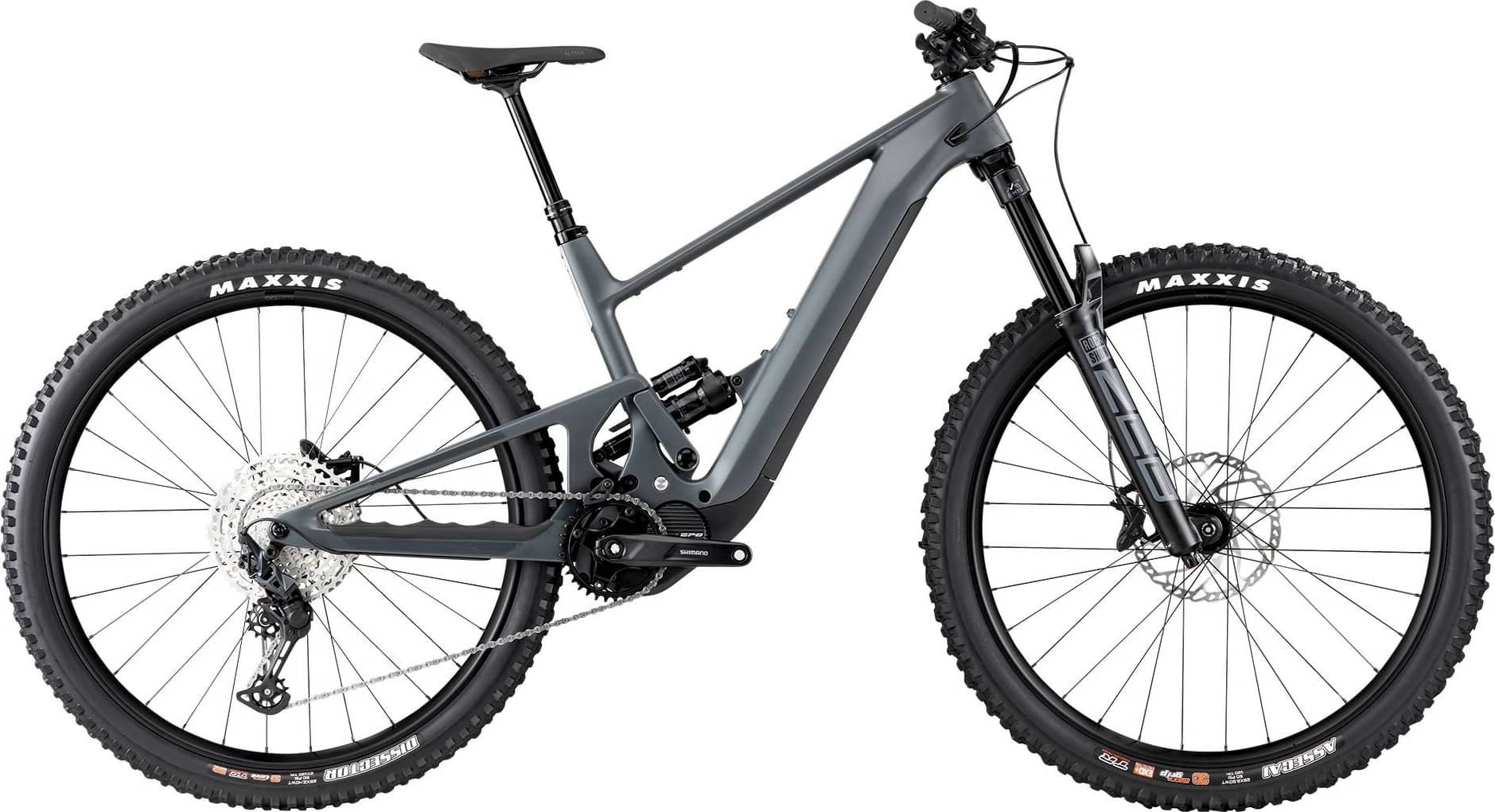

SCOR 4060 Z ST | SLX USA 2023
2023 E-bike
Estimate price |
7,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset SLX, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V | 720Wh | Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Fully guided internal cable routing | Boost 148 | SRAM UDH
Suspension Fork
RockShox ZEB | 150mm travel | 44mm rake
Rear Shock
RockShox Super Deluxe Select Suspension
Drivetrain
Rear Derailleur
SHIMANO Deore SLX (RD-M7100) | 12 speed
Shift Levers
SHIMANO Deore SLX (SL-M7100-R)
Cassette
Shimano Deore (CS-M6100-12) | 10-51T
Crank
Shimano FC-EM600 | 165mm length | 34T chainring (SM-CRE80-12-B)
Chain
Shimano Deore (CN-M6100)
Wheels
Rims
XDH-130 | 32 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
SCOR Alloy Stem | 3D forged | 31.6mm bar bore | 35mm lenght | 0deg angle
Handlebar
SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep
Grips
VP VPG-125A
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP800)
Battery
Darfon 36V | 720Wh | Shimano Steps service included
Charger
Darfon Smart Plus 100-240V | 4A | US
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 118 mm | 123 mm | 128 mm | 134 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 714 mm | 723 mm | 731 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model
4060 Z ST | SLX USA is a Scor E 4060 model. 18 e-bikes variations carry this model name so far. You can easily view all of the Scor E 4060 e-bikes models from 2023, here.
Model range prices
SCOR 4060 Z LT SLX 2023 is the cheapest e-bike model and costs 7411$. SCOR 4060 Z ST XT 2023 is the most expensive one and costs 9529$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 7499$. Doing a quick comparison, we notice that 4060 Z ST | SLX USA price is 56.72% more expensive than the average cost of an Enduro e-bike.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The 4060 Z ST | SLX USA comes factory-installed with the RockShox ZEB fork. This has a travel range of 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Select Suspension rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The wheels on 4060 Z ST | SLX USA are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. SCOR 4060 Z ST | SLX USA is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
SCOR 4060 Z ST | SLX USA e-bike has 4 sizes, in the range of 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
SCOR 4060 Z ST | SLX USA includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
