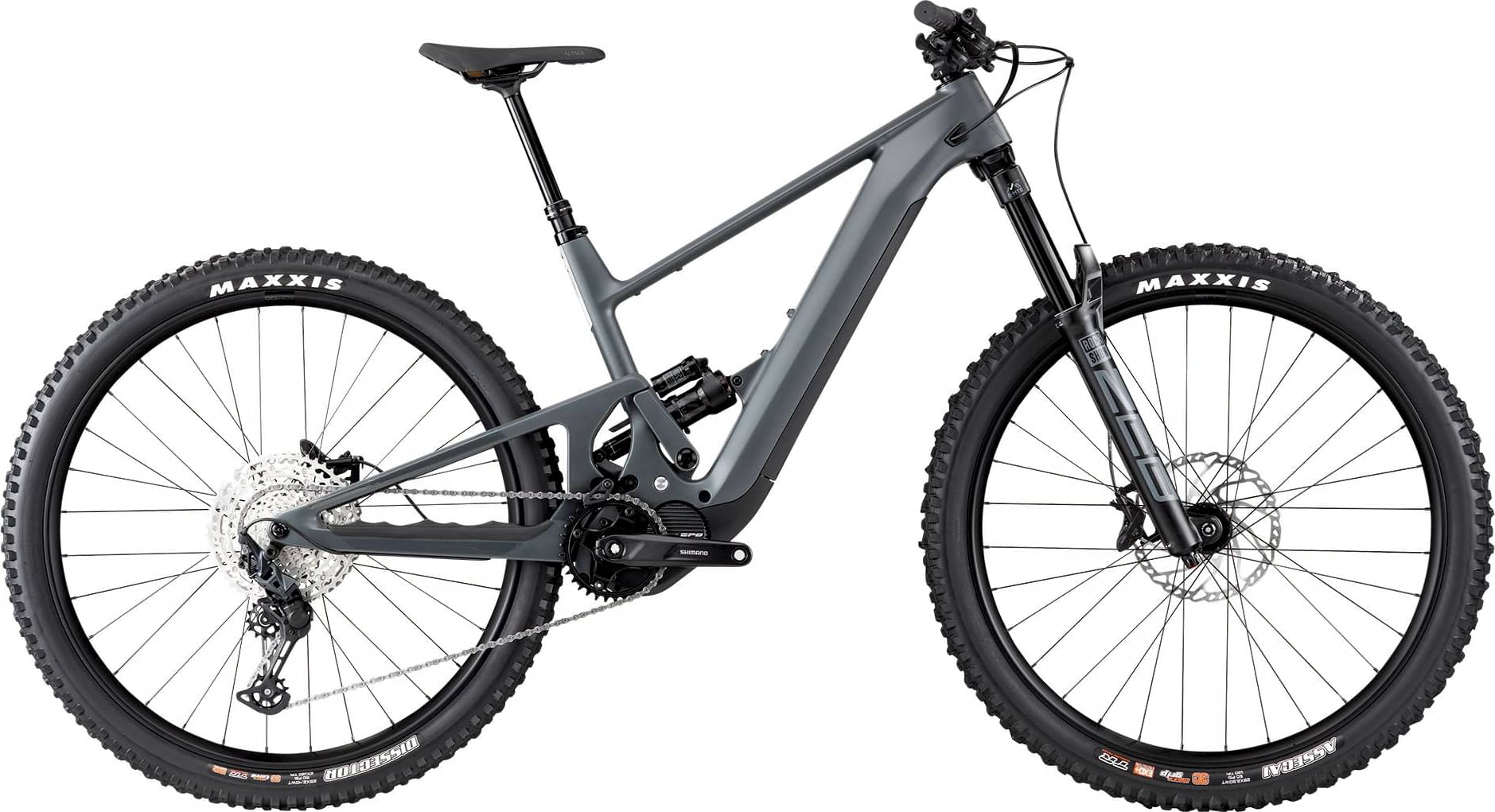

SCOR 4060 Z ST SLX USA 2023
2023 E-bike
Estimate price |
7,499$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 160mm -
Fork RockShox ZEB
-
Groupset Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Darfon 36V | 720Wh | Shimano Steps service included -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 170cm
MD
165cm - 180cm
LG
175cm - 190cm
XL
185cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCOR 4060 Z full carbon frame | Lower-Link Driven Instant Center linkage | 140 / 160mm rear travel | Fully guided internal cable routing | Boost 148 | SRAM UDH | Lower ISCG 05 mount / chainguide
Suspension Fork
RockShox ZEB | 150mm travel | 44mm rake
Rear Shock
RockShox Super Deluxe Select Suspension
Drivetrain
Cassette
Shimano Deore (CS-M6100-12) | 10-51T
Crank
Shimano FC-EM600 | 165mm length | 34T chainring (SM-CRE80-12-B)
Chain
Shimano Deore (CN-M6100)
Wheels
Rims
XDH-130 | 32 spokes | 6061-T6 alloy | welded joint | 30mm internal width | Tubeless ready
Tires
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
SCOR Alloy Stem | 3D forged | 31.6mm bar bore | 35mm lenght | 0deg angle
Handlebar
SCOR Alloy Bar | 31.8mm clamp | 800mm wide | 20mm rise | 5° upsweep | 9° backsweep
Grips
VP VPG-125A
Seat
Saddle
Fizik Terra Alpaca X5
Seatpost
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm travel
Motor & Battery
Motor
Shimano Steps EP8 (DU-EP800)
Battery
Darfon 36V | 720Wh | Shimano Steps service included
Charger
Darfon Smart Plus 100-240V | 4A | US
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.374 mm | 1.325 mm | 1.289 mm | 1.233 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 752 mm | 777 mm | 802 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 118 mm | 123 mm | 128 mm | 134 mm |
| Stack | 599 mm | 611 mm | 625 mm | 636 mm |
| Reach | 436 mm | 461 mm | 485 mm | 516 mm |
| Top Tube Length | 561 mm | 590 mm | 621 mm | 655 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 400 mm | 425 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 87 mm | 99 mm | 115 mm | 127 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1185 mm | 1210 mm | 1235 mm | 1265 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 714 mm | 723 mm | 731 mm | 741 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 200 cm |
About this model
4060 Z ST SLX USA belongs to the Scor E 4060 model. There are 16 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
SCOR 4060 Z LT SLX 2023 is the most affordable e-bike of this model and has a price of 7431$. On the other hand, SCOR 4060 Z ST XT 2023, is the most expensive and costs 9555$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When SCOR released this model in 2023, its price was 7499$. In conclusion, this e-bike price is 56.72% more expensive than the price of the average Enduro e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
This e-bike has the RockShox ZEB fork installed. The fork’s travel is 150mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The 4060 Z ST SLX USA has a rear shock with a travel of 160mm. The model RockShox Super Deluxe Select Suspension is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, SCOR 4060 Z ST SLX USA 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The 4060 Z ST SLX USA has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the 4060 Z ST SLX USA. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
