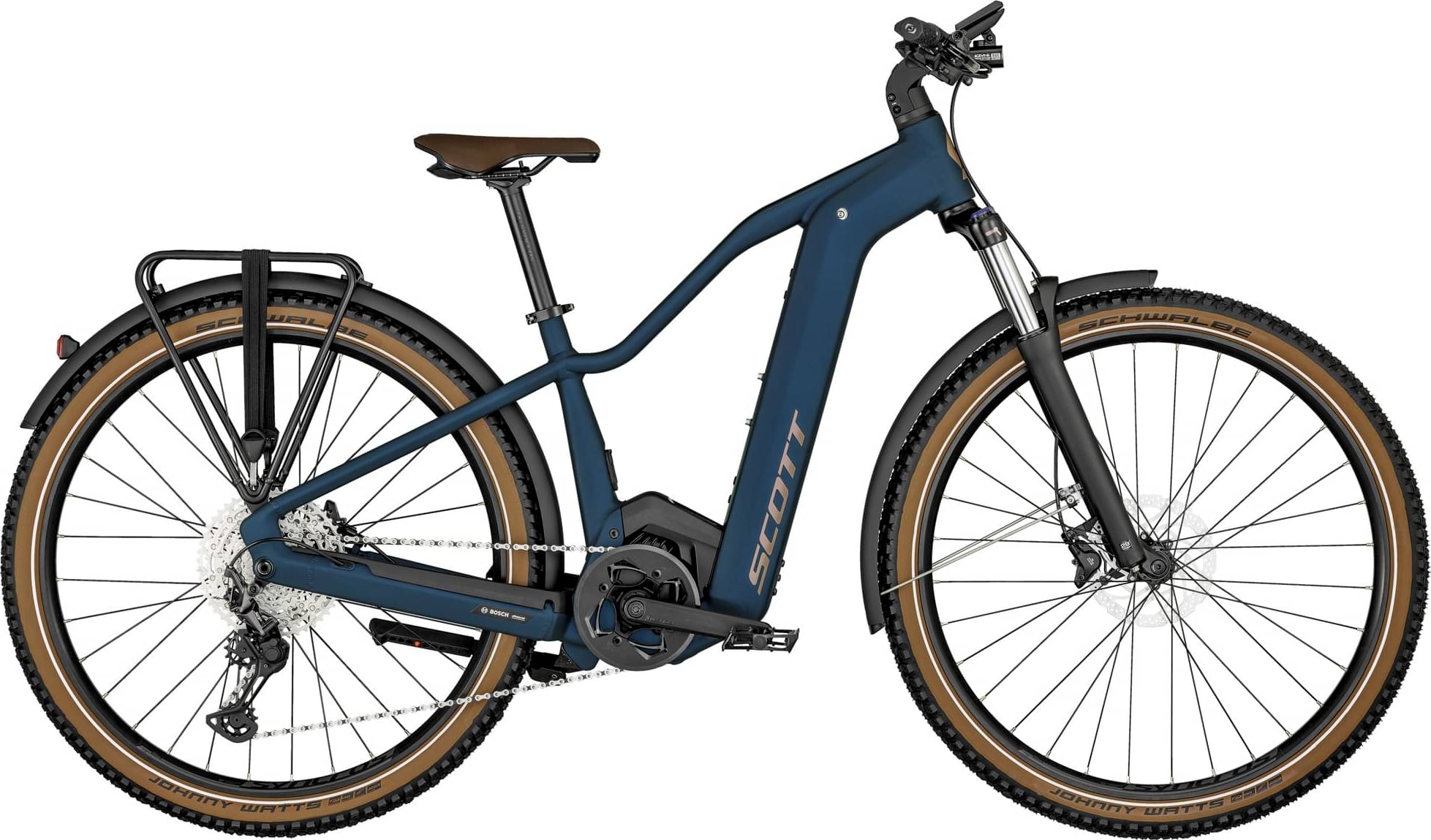

Scott Axis eRIDE 20 Lady 2023
2023 E-bike
Estimate price |
5,218$
Weight | 27.52 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing
Suspension Fork
SR Suntour XCM34 Coil / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Lock Out
Drivetrain
Rear Derailleur
Shimano RD M8100SGS / 12 Speed
Shift Levers
Shimano Deore Trigger SL-M6100RA
Cassette
Shimano CS-M6100-12 10-51T 12S
Crank
Miranda 172,5mm
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT510B / Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Shimano BR-MT410 2 Piston
Cockpit
Stem
Syncros with front Light mount and Intuvia 100 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX BES3
Battery
PowerTube 625Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm |
| Rake | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 646.6 mm | 655.8 mm | 665.1 mm |
| Reach | 398.5 mm | 405.8 mm | 413.1 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1178 mm | 1189 mm | 1200 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 778 mm | 773 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
Axis eRIDE 20 Lady is part of the Scott E Axis model. 36 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Scott Axis eRIDE 30 Lady 2023 is the cheapest e-bike model and costs 4074$. Scott Axis eRIDE FS 10 2023 is the most expensive one and costs 7905$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4743$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Axis eRIDE 20 Lady price is 91.25% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, Axis eRIDE 20 Lady has a weight of 27.52 kg (60.67 lbs). In short, the average Hybrid e-bike weight is 15.68% lower than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Axis eRIDE 20 Lady components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on Axis eRIDE 20 Lady are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Axis eRIDE 20 Lady comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Axis eRIDE 20 Lady comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
