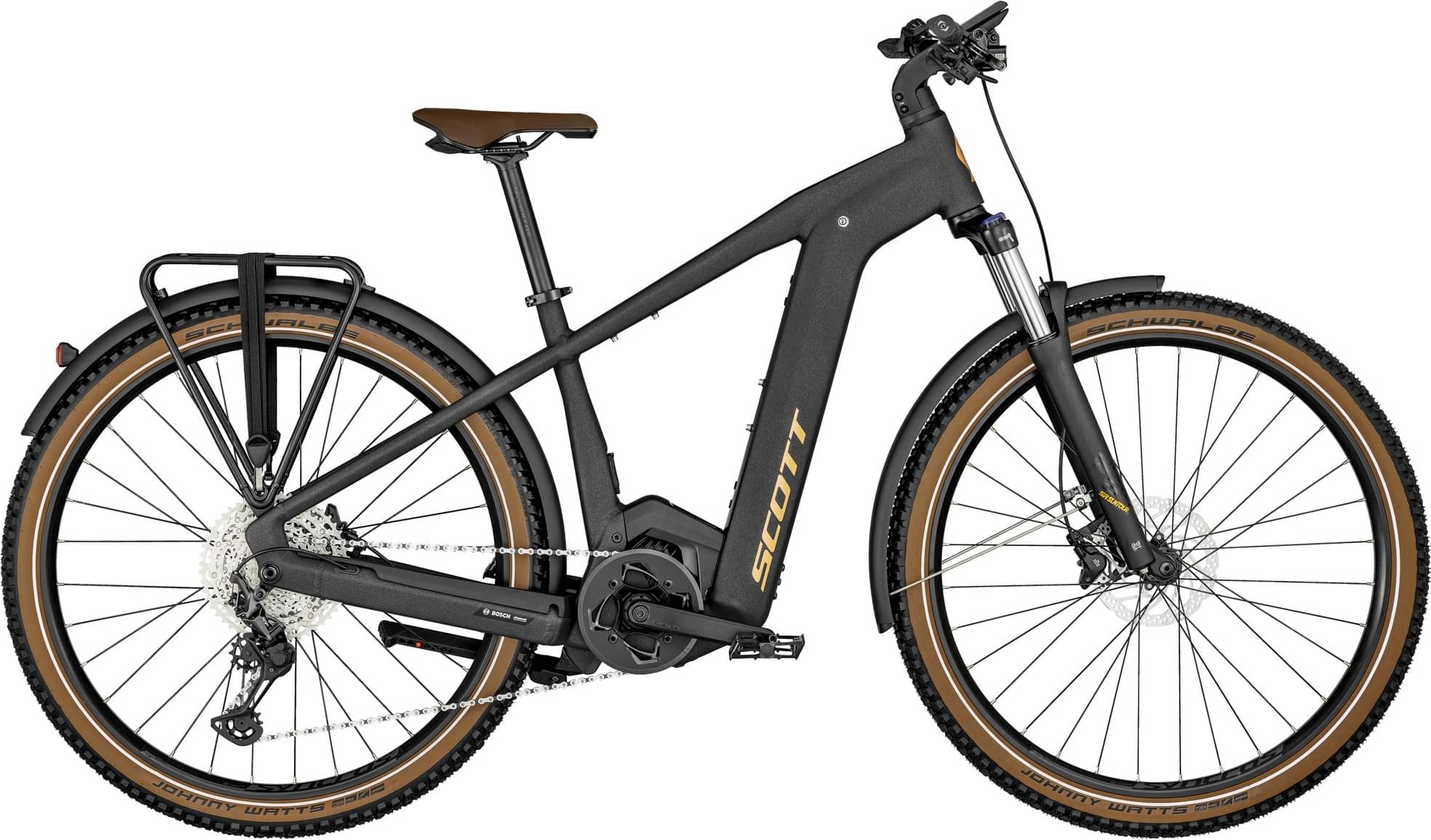

Scott Axis eRIDE 20 Men 2023
2023 E-bike
Estimate price |
5,218$
Weight | 27.86 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing
Suspension Fork
SR Suntour XCM34 Coil / Tapered / S-XL 29" / 120mm Travel / 15x110 bolt Axle / Lock Out
Drivetrain
Rear Derailleur
Shimano RD M8100SGS / 12 Speed
Shift Levers
Shimano Deore Trigger SL-M6100RA
Cassette
Shimano CS-M6100-12 10-51T 12S
Crank
Miranda 172,5MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT510B / Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe Johnny Watts 29x2.35" Wired, Rear: Schwalbe Johnny Watts 29x2.35" Wired
Brakes
Brakes
Shimano BR-MT410 2 Piston
Cockpit
Stem
Syncros with front Light mount and Intuvia 100 mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX BES3
Battery
PowerTube 625Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 646.6 mm | 655.8 mm | 665.1 mm | 683.7 mm |
| Reach | 398.5 mm | 405.8 mm | 413.1 mm | 417.8 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1178 mm | 1189 mm | 1200 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 801 mm | 822 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Axis eRIDE 20 Men is a Scott E Axis model. 36 e-bikes variations carry this model name so far. You can easily view all of the Scott E Axis e-bikes models from 2023, here.
Model range prices
Scott Axis eRIDE 30 Lady 2023 is the cheapest e-bike model and costs 4074$. Scott Axis eRIDE FS 10 2023 is the most expensive one and costs 7905$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4743$. Comparing the average cost of a Hybrid e-bike to this one, you will see that Axis eRIDE 20 Men price is 91.25% higher.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Axis eRIDE 20 Men weighs 27.86 kg (61.42 lbs) and is much heavier than the average. In other words, this model is 17.11% heavier than the average Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Axis eRIDE 20 Men comes factory-installed with the Suntour XCM fork. This has a travel range of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Axis eRIDE 20 Men e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Scott Axis eRIDE 20 Men has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
