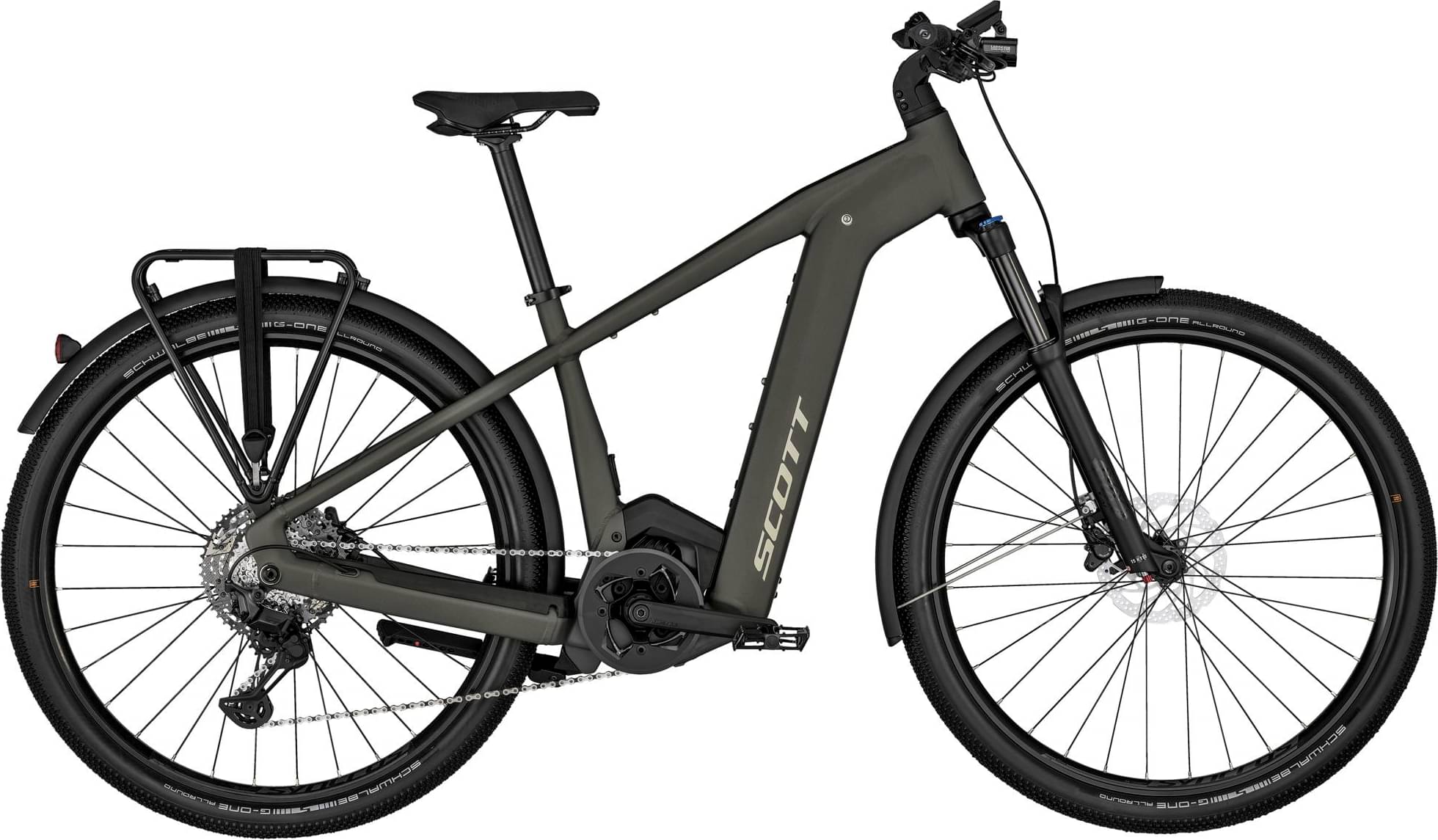

Scott Axis eRIDE EVO Tour Men 2023
2023 E-bike
Estimate price |
5,552$
Weight | 28.76 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery PowerTube 750Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / 6061 Alloy custom butted tubing Bosch Integr. removable Battery internal cable routing
Suspension Fork
SR Suntour XCR34 Air / Tapered / S-XL 29"/ 120mm Travel / 15x110 bolt Axle / Remote Lock Out
Drivetrain
Rear Derailleur
Shimano Durable Linkgilde XT / 11 Speed
Shift Levers
Shimano Deore Trigger SL-M8130 R
Cassette
Shimano CS-LG600-11 11-51T 11S
Crank
Miranda 172,5MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E11S
Pedals
VP VPE-506
Wheels
Front Hub
Shimano HB-MT400 / 15x110mm
Rear Hub
Shimano FH-MT510B / Boost 12x148mm
Rims
Syncros X18 Disc
Spokes
Black Spokes
Tires
Front: Schwalbe G-One Allround Performance 29x2.25" Wired, Rear: Schwalbe G-One Allround Performance 29x2.25" Wired
Brakes
Brakes
Shimano BR-MT520 4 Piston 203/F SM-RT64 CL and 203/R RT-EM600 CL rotor
Cockpit
Stem
Syncros UC3.0 with integrated Light
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Acros / 1.5"- 1.5" semi integ. OD 50/61mm / ID 44/55mm
Seat
Saddle
Syncros Capilano
Seatpost
Syncros M3.0 / 31.6
Motor & Battery
Motor
Bosch Performance CX BES3
Battery
PowerTube 750Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.62 mm | 1.61 mm | 1.64 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm | 312 mm |
| Front Center | 683 mm | 694 mm | 705 mm | 717 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 101.6 mm | 101.6 mm | 101.6 mm | 101.6 mm |
| Stack | 646.6 mm | 655.8 mm | 665.1 mm | 683.7 mm |
| Reach | 398.5 mm | 405.8 mm | 413.1 mm | 417.8 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm | 613 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 503 mm | 503 mm | 503 mm | 503 mm |
| Wheelbase | 1178 mm | 1189 mm | 1200 mm | 1213 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 783 mm | 801 mm | 822 mm | 853 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Axis eRIDE EVO Tour Men is part of the Scott E Axis model. Scott launched 36 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Scott Axis eRIDE 30 Lady 2023 is the most affordable e-bike of this model and has a price of 4074$. On the other hand, Scott Axis eRIDE FS 10 2023, is the most expensive and costs 7905$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Scott released this model in 2023, its price was 5047$. Comparing this to the average Hybrid e-bike price, we see that the price is 103.51% more expensive.
Average weight for Hybrid e-bikes
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 28.76 kg (63.4 lbs), the Axis eRIDE EVO Tour Men model is much heavier than average. In other words, this model is 20.89% heavier than the average Hybrid e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Axis eRIDE EVO Tour Men components
Fork
The Suntour XCR Air is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Axis eRIDE EVO Tour Men model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Scott Axis eRIDE EVO Tour Men e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
