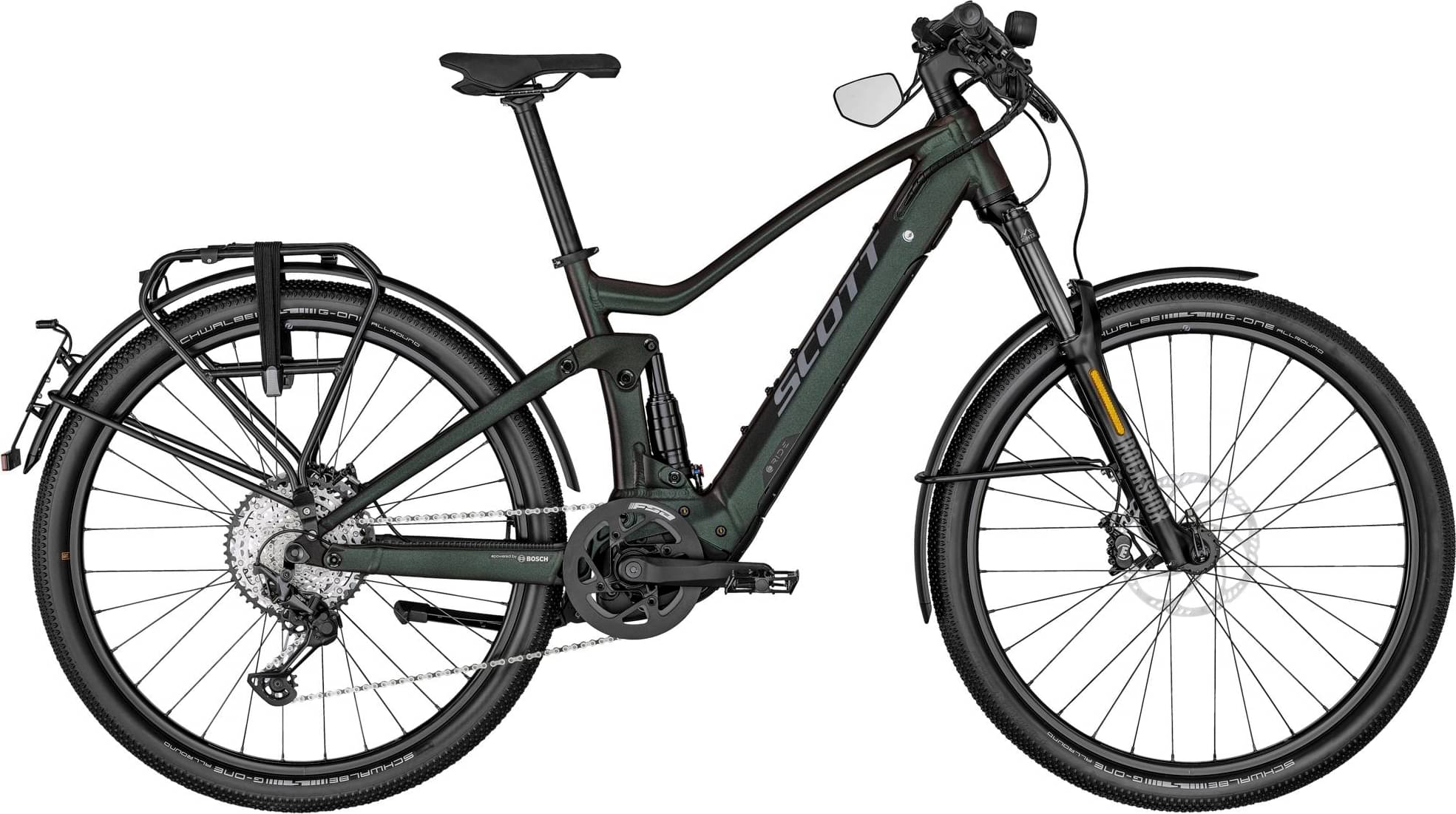

Scott Axis eRIDE FS Speed 2023
2023 E-bike
Estimate price |
6,881$
Weight | 26.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery PowerTube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alloy S-XL=29" / Virtual 4 link kinematic VLK 29" / Boost 148x12mm 140mm travel / Bosch Integrated Battery Range Booster Ready Tapered Headtube
Suspension Fork
Rock Shox Recon Silver Air / Tapered / S-XL 29"/ 140mm Travel / Maxle Lite / Remote Lock Out
Rear Shock
X-Fusion NUDE Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend Reb. Adj. Travel 130-85-Lockout / 185X50mm
Drivetrain
Rear Derailleur
Shimano XT 12 Speed
Front Derailleur
SCOTT Chainguide
Shift Levers
Shimano Deore Trigger SL-M6100RA
Cassette
Shimano CS-M7100-12 10-51T 12S
Crank
FSA CK-745 IS GEN4 MTB 170MM
Bottom Bracket
Bosch, press-fit
Chain
KMC E12S
Pedals
VP VPE-506
Wheels
Front Hub
Formula DC-711 / 15x110mm
Rear Hub
Formula EMSL-148S / Boost 12x148mm
Rims
Syncros MAXX Disc / 32H Tubeless ready
Spokes
Sapim double butted
Tires
Front: Schwalbe G-One Allround Performance 29x2.25" Wired, Rear: Schwalbe G-One Allround Performance 29x2.25" Wired
Brakes
Brakes
Magura MT5E 203/F and 203/R rotor
Cockpit
Stem
Syncros FL3.0 with front Light mount and Kiox mount
Handlebar
Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise Syncros Lock On Grip
Headset
Syncros FL2.0 Press Fit E2 / Tapered 1.5"-1 1/8" OD 50/62mm / ID 44/56mm
Seat
Saddle
Selle Royale Essenza
Seatpost
Syncros FL3.0 / 31.6
Motor & Battery
Motor
Bosch Performance Speed
Battery
PowerTube 625Wh
Charger
4A Charger
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.49 mm | 1.41 mm | 1.44 mm | 1.37 mm | 1.4 mm | 1.31 mm | 1.34 mm |
| Bottom Bracket Height | 337.9 mm | 347 mm | 337.9 mm | 347 mm | 338 mm | 347 mm | 338.1 mm | 347 mm |
| Front Center | 752 mm | 752 mm | 773 mm | 773 mm | 795 mm | 795 mm | 827 mm | 827 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 120.2 mm | 128.8 mm | 120.2 mm | 128.8 mm | 118.8 mm | 127.2 mm | 118.8 mm | 127.2 mm |
| Stack | 615.2 mm | 619.6 mm | 619.6 mm | 624.2 mm | 629.7 mm | 634.4 mm | 638.6 mm | 643.4 mm |
| Reach | 421.3 mm | 414.8 mm | 440.1 mm | 433.6 mm | 460.2 mm | 453.7 mm | 487.7 mm | 481.3 mm |
| Top Tube Length | 576.4 mm | 578 mm | 596.4 mm | 598 mm | 626.3 mm | 628 mm | 656.3 mm | 658 mm |
| Seat Tube Angle | 76 ° | 75.4 ° | 76 ° | 75.4 ° | 75.4 ° | 74.8 ° | 75.4 ° | 74.8 ° |
| Seat Tube Length | 410 mm | 410 mm | 440 mm | 440 mm | 490 mm | 490 mm | 540 mm | 540 mm |
| Head Tube Angle | 65.4 ° | 64.8 ° | 65.4 ° | 64.8 ° | 65.6 ° | 65 ° | 65.6 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 125 mm | 125 mm | 135 mm | 135 mm | 145 mm | 145 mm |
| Chainstay Length | 455 mm | 458 mm | 455 mm | 458 mm | 455 mm | 458 mm | 455 mm | 458 mm |
| Wheelbase | 1206 mm | 1208 mm | 1227 mm | 1229 mm | 1249 mm | 1251 mm | 1281 mm | 1283 mm |
| Bottom Bracket Drop | 22 mm | 30 mm | 22 mm | 30 mm | 22 mm | 30 mm | 21 mm | 30 mm |
| Standover Height | 741 mm | 755 mm | 746 mm | 759 mm | 778 mm | 791 mm | 790 mm | 802 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Axis eRIDE FS Speed is part of the Scott E Axis model. There are 36 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Scott Axis eRIDE 30 Lady 2023 has a starting price of 4074$. Scott Axis eRIDE FS 10 2023 on the other hand is the most expensive at 7905$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Scott Axis eRIDE FS Speed price was 6370$. Comparing this to the average Hybrid e-bike price, we see that the price is 156.85% higher.
Hybrid e-bikes average weight
The average weight for Hybrid e-bikes is 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
considerably heavier than average, Axis eRIDE FS Speed has a weight of 26.6 kg (58.64 lbs). To sum up, it’s 11.81% heavier than the average weight of Hybrid e-bikes.
Overview of components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the X-Fusion NUDE Trunnion SCOTT custom w. rear shock model, which has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Axis eRIDE FS Speed model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Scott Axis eRIDE FS Speed is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
