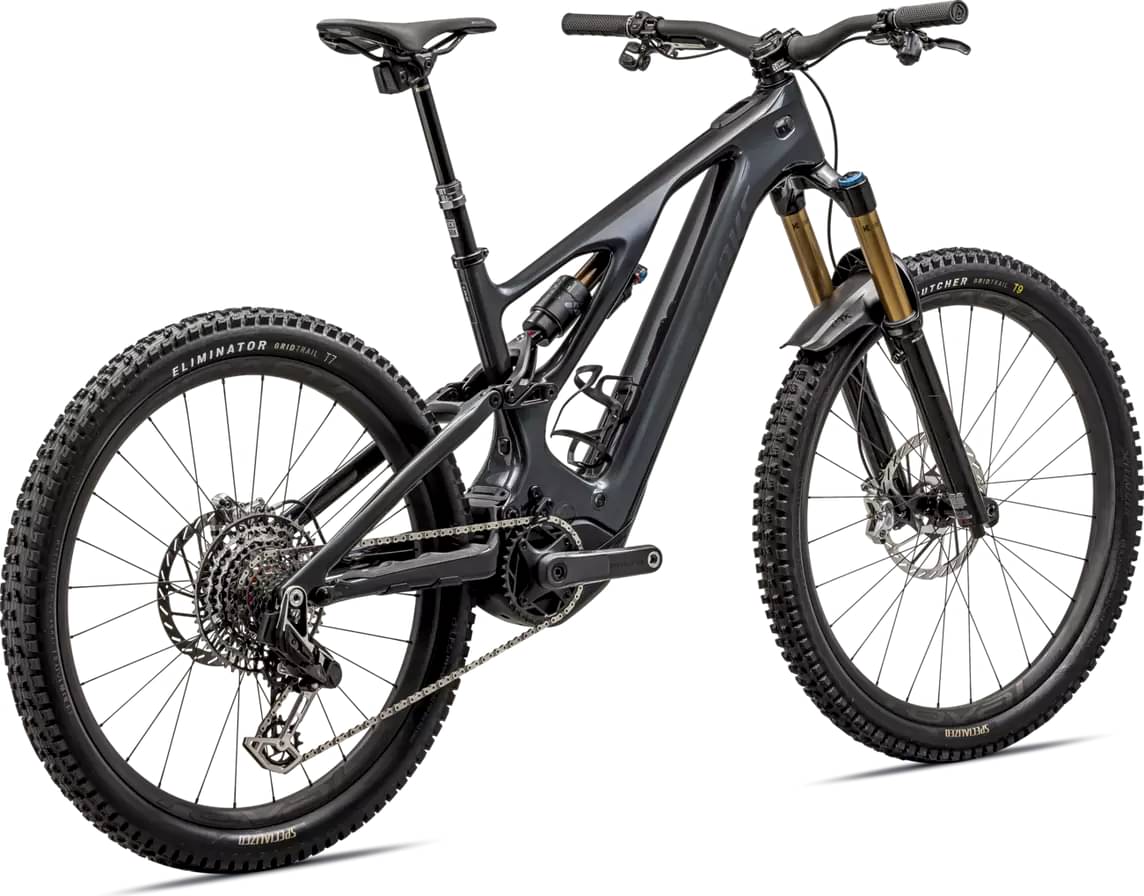

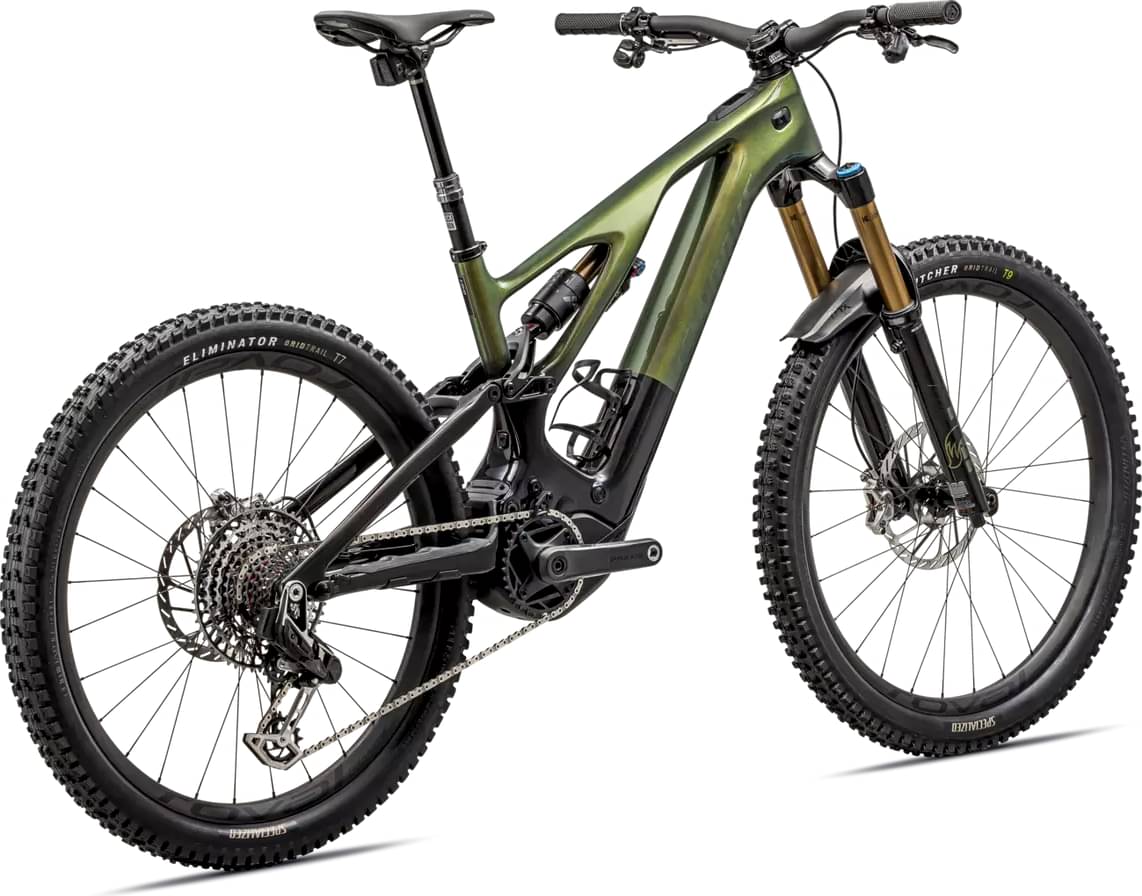

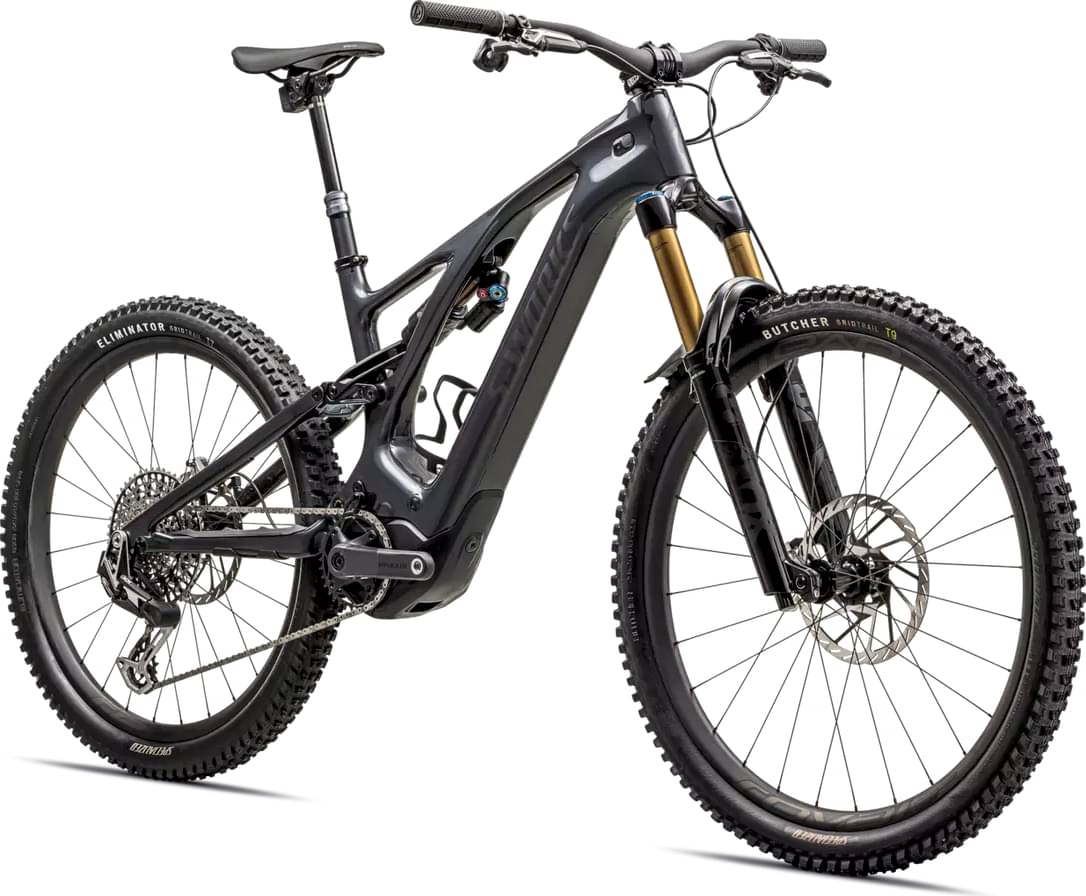

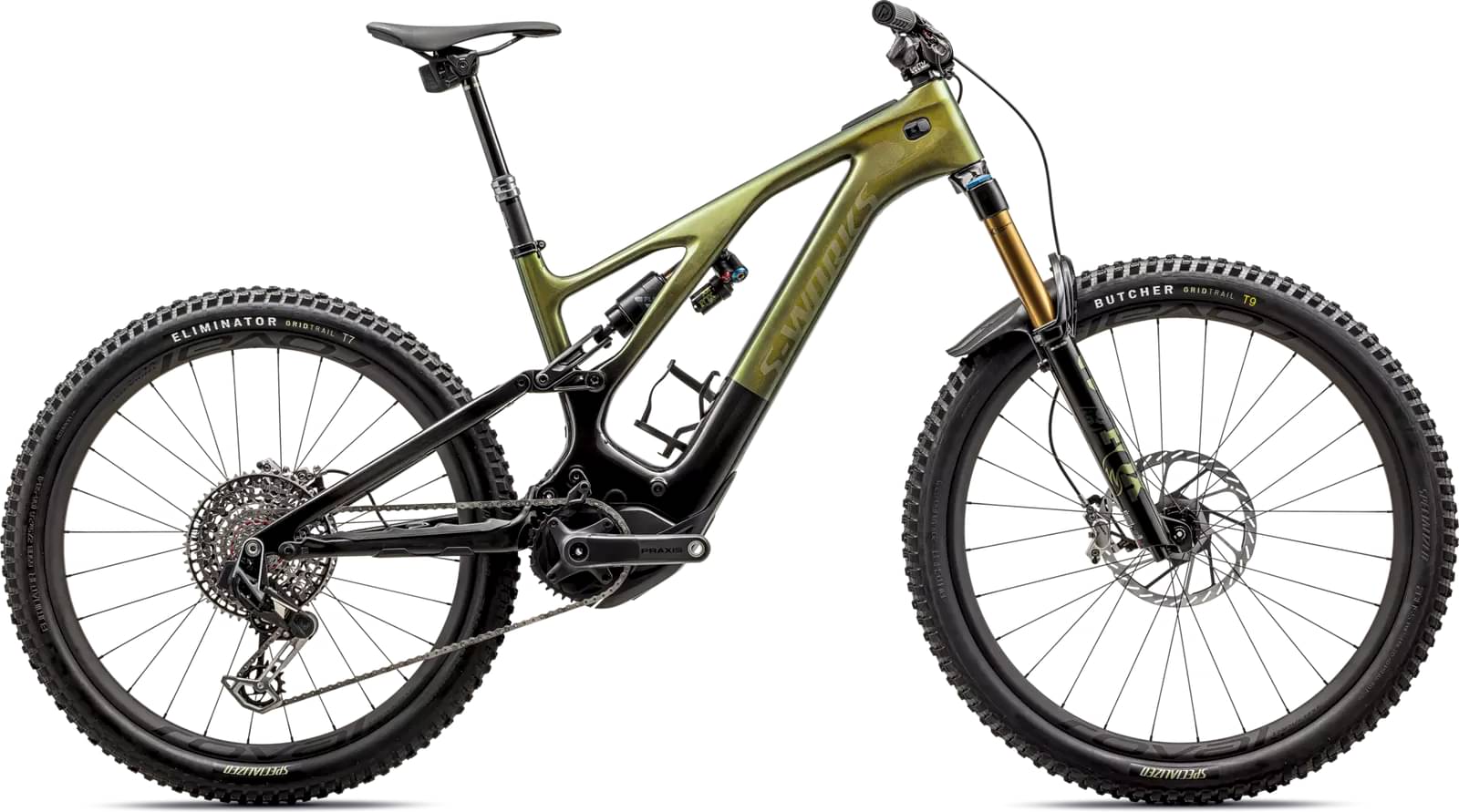

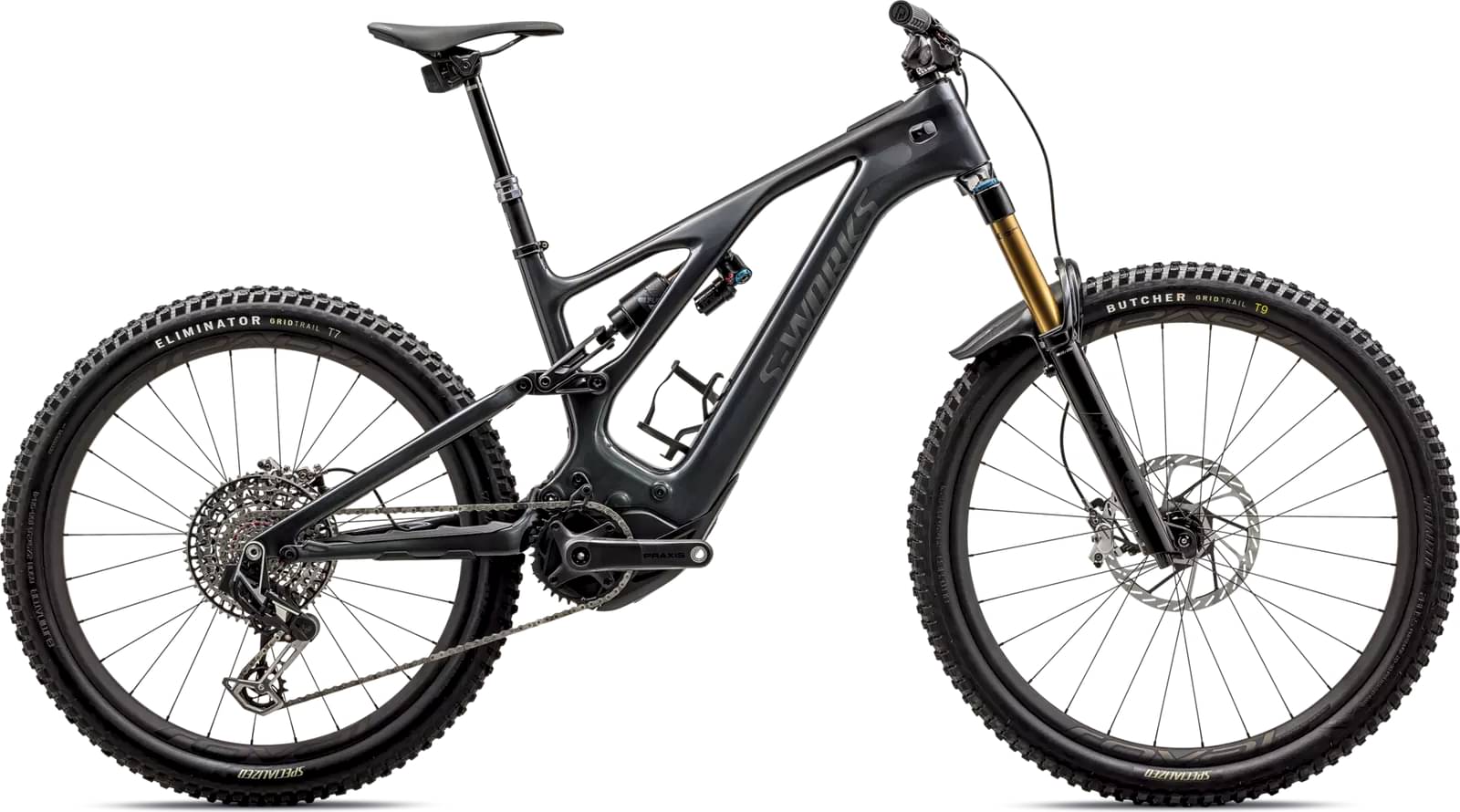

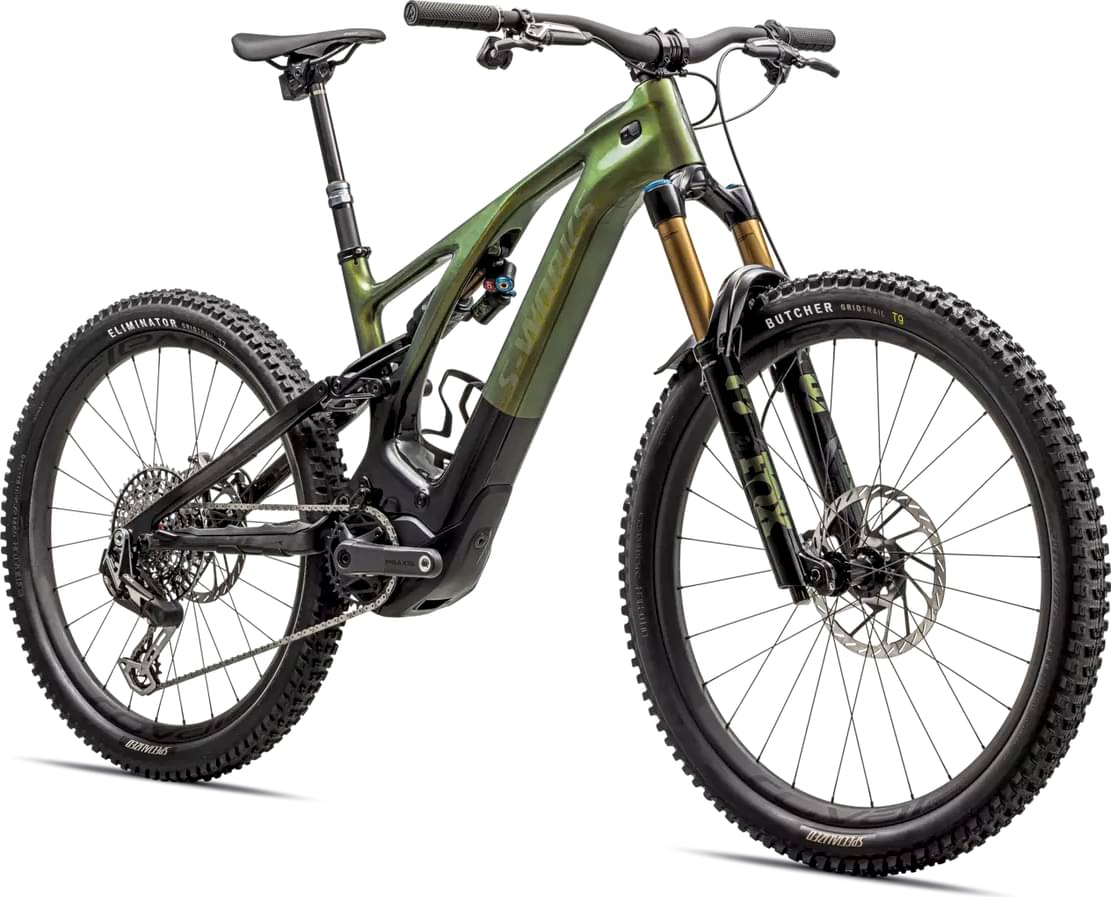

Specialized S-Works Turbo Levo G3 2024
2024 E-bike
Estimate price |
14,000$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, Praxis -
Suspension Full -

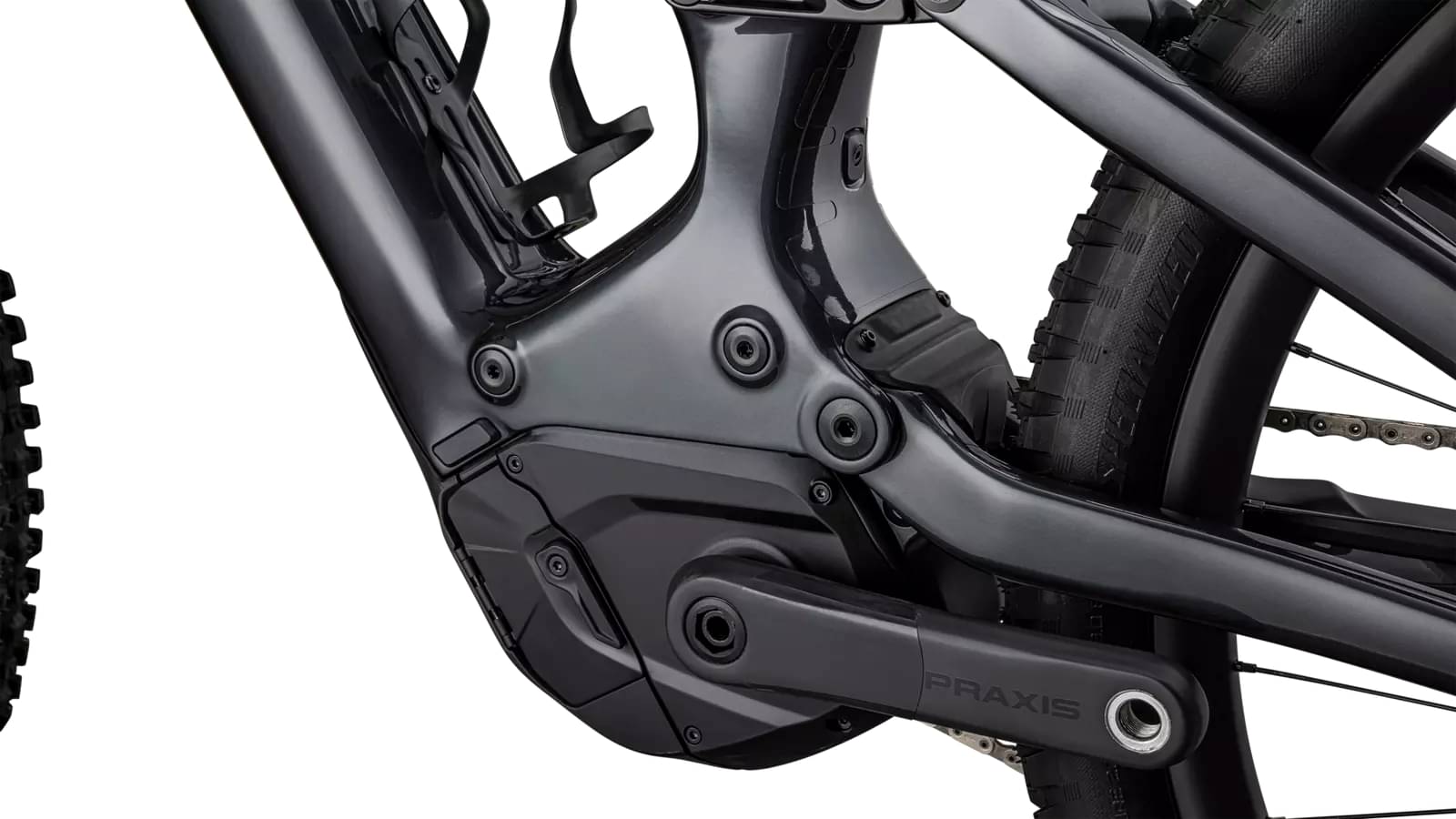

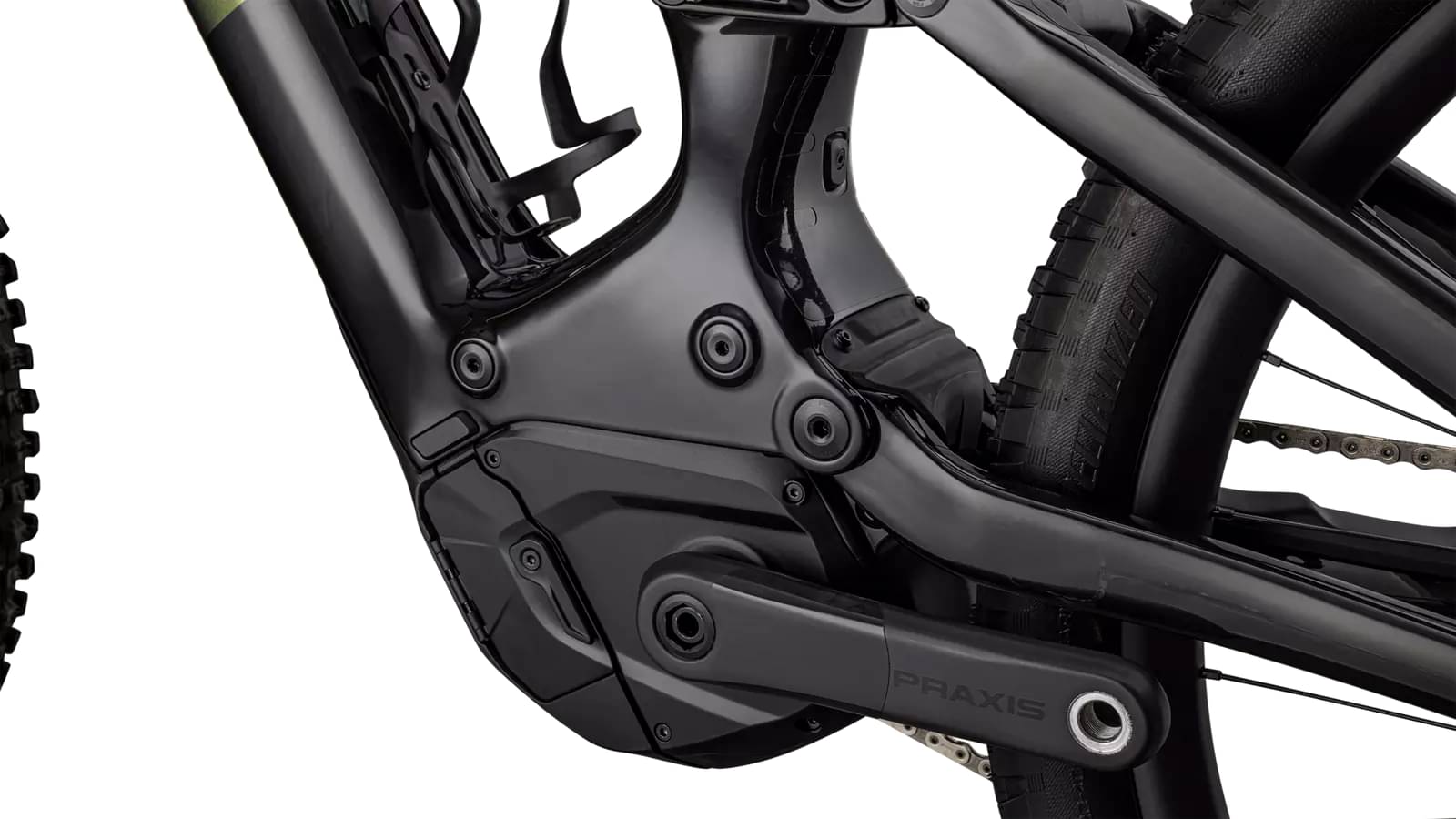

Motor Specialized mid-drive -
Battery Specialized M3-700, Integrated battery, 700Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
S2
157cm - 172cm
S3
165cm - 180cm
S4
172cm - 188cm
S5
177cm - 193cm
S6
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot
Suspension Fork
Fox 38 Factory, Grip 2 Damper, 29", 160mm Travel, Kashima, 44mm Offset
Rear Shock
Fox Float X2 Factory, Kashima, 210x55mm
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission Derailleur
Shift Levers
SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
Cassette
RockShox Reverb AXS, 30.9, 1X remote, (S1:100mm, S2: 125mm, S3: 150mm, S4-S6: 170mm)
Crank
Praxis Carbon/Custom Offset/ISIS Spindle Interface, 160mm, New SL 1.2 spider, 104BCD w/SRAM 32t Transmission compatible alloy ring
Chain
SRAM XX Eagle Transmission Flattop Chain
Wheels
Rims
Front: Roval Traverse SL 29, Rear: Roval Traverse SL 27.5, 148mm spacing, XD freehub body
Tires
Front: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6", Rear: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Brakes
Brakes
Front: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor, Rear: SRAM Code Stealth Ultimate, 4-piston caliper, hydraulic disc, 220mm rotor
Cockpit
Stem
Deity, 35.0mm

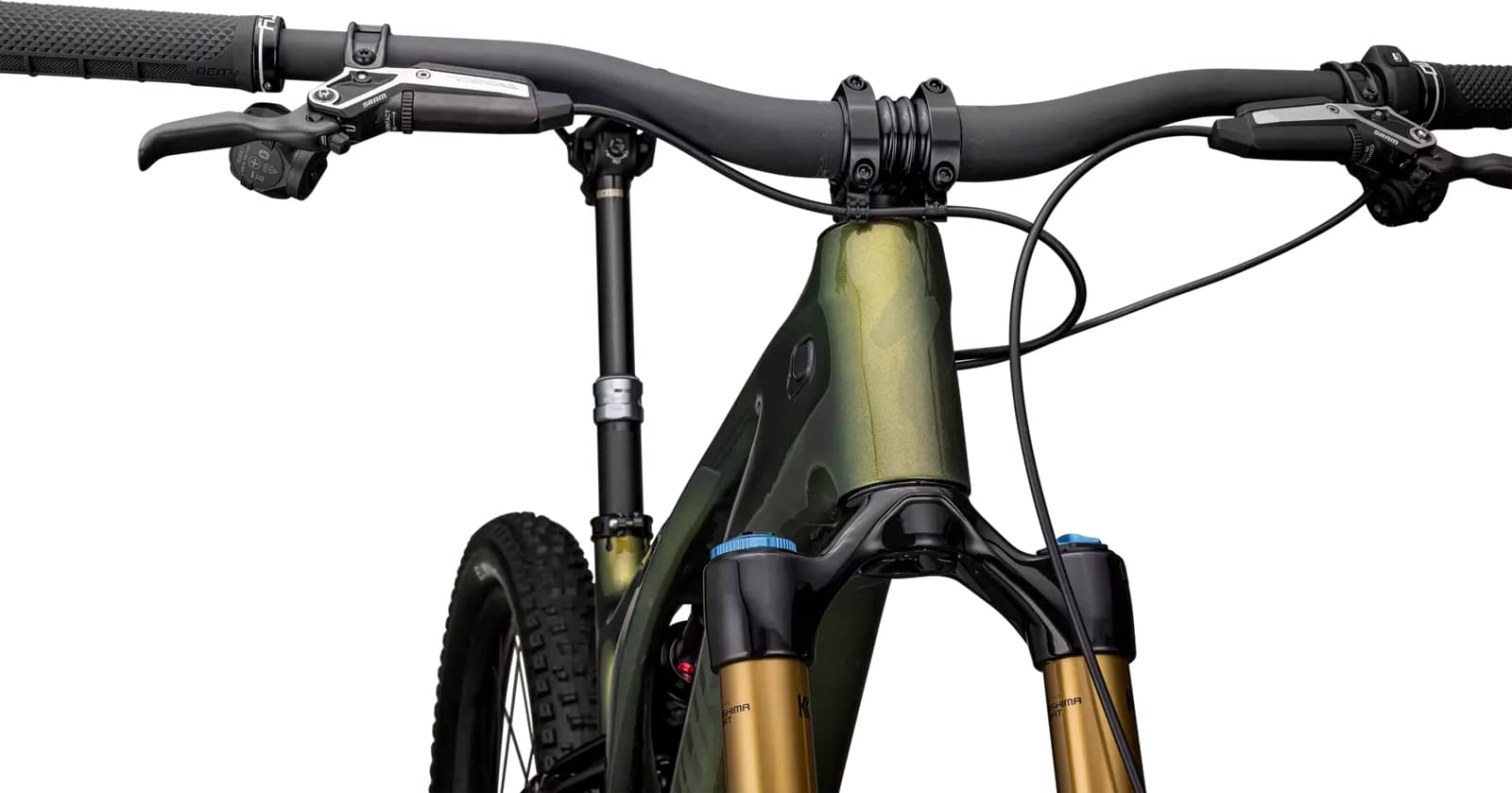

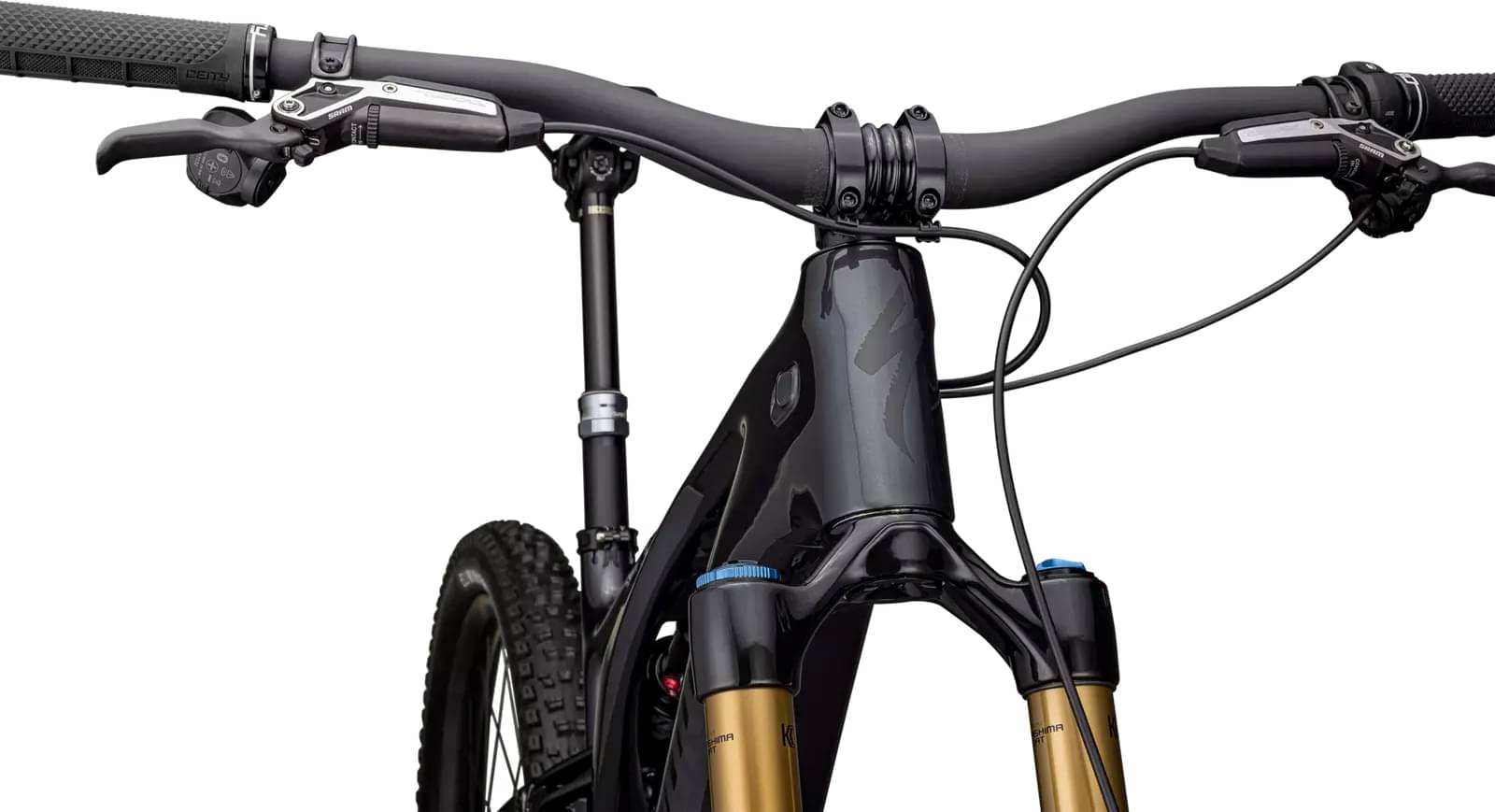

Handlebar
Roval Traverse SL Carbon, riser bar, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm, 35.0mm
Grips
Deity Grips
Seat
Saddle
Bridge, 155/143mm, Hollow Ti-rails
Seatpost
RockShox Reverb AXS, 30.9, 1X remote, (S2: 125mm, S3: 150mm, S4-S6: 170mm)
Motor & Battery
Motor
Specialized 2.2 Custom Rx Trail Tuned Motor
Battery
Specialized M3-700, Integrated battery, 700Wh
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S2 | S3 | S4 | S5 | S6 |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.38 mm | 1.33 mm | 1.28 mm | 1.22 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 760 mm | 784 mm | 814 mm | 843 mm | 878 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 624 mm | 633 mm | 642 mm | 651 mm | 660 mm |
| Reach | 439 mm | 459 mm | 484 mm | 509 mm | 539 mm |
| Seat Tube Angle | 77.2 ° | 76.7 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1207 mm | 1232 mm | 1262 mm | 1291 mm | 1325 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm | 27 mm |
| Standover Height | 783 mm | 790 mm | 794 mm | 795 mm | 797 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 157 cm | 165 cm | 172 cm | 177 cm | 188 cm |
| Rider Max Height | 172 cm | 180 cm | 188 cm | 193 cm | 203 cm |
Model Overview
S-Works Turbo Levo G3 is a Specialized E Turbo Levo model. Specialized launched 86 e-bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Specialized Turbo Levo Alloy 2024 is the most affordable e-bike of this model and has a price of 5500$. On the other hand, Specialized S-Works Turbo Levo – SRAM XX T-Type 2024, is the most expensive and costs 14334$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2024 and its price was 14000$. If we compare this with the average Enduro e-bike cost we notice that the price is 192.58% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.

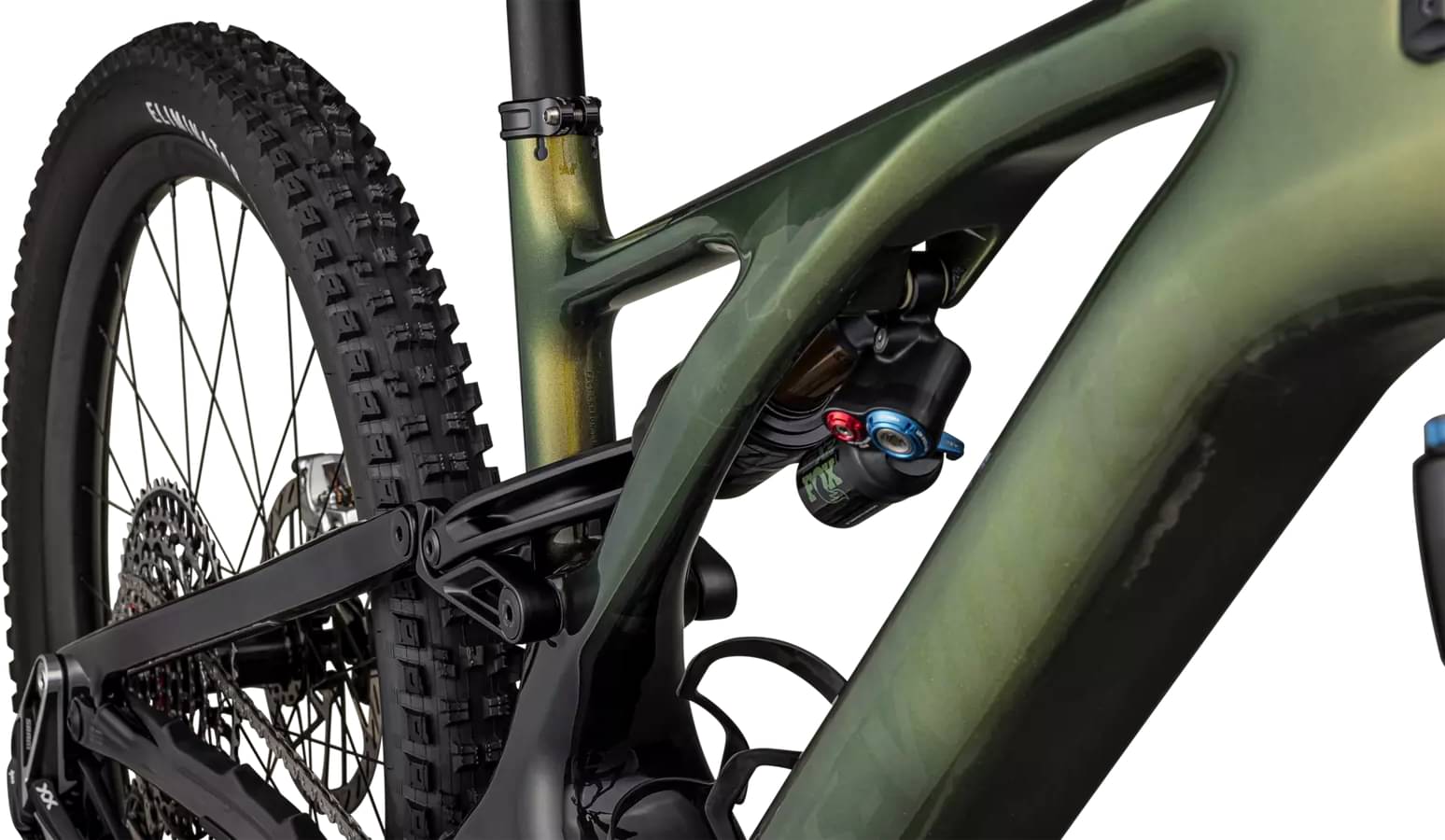

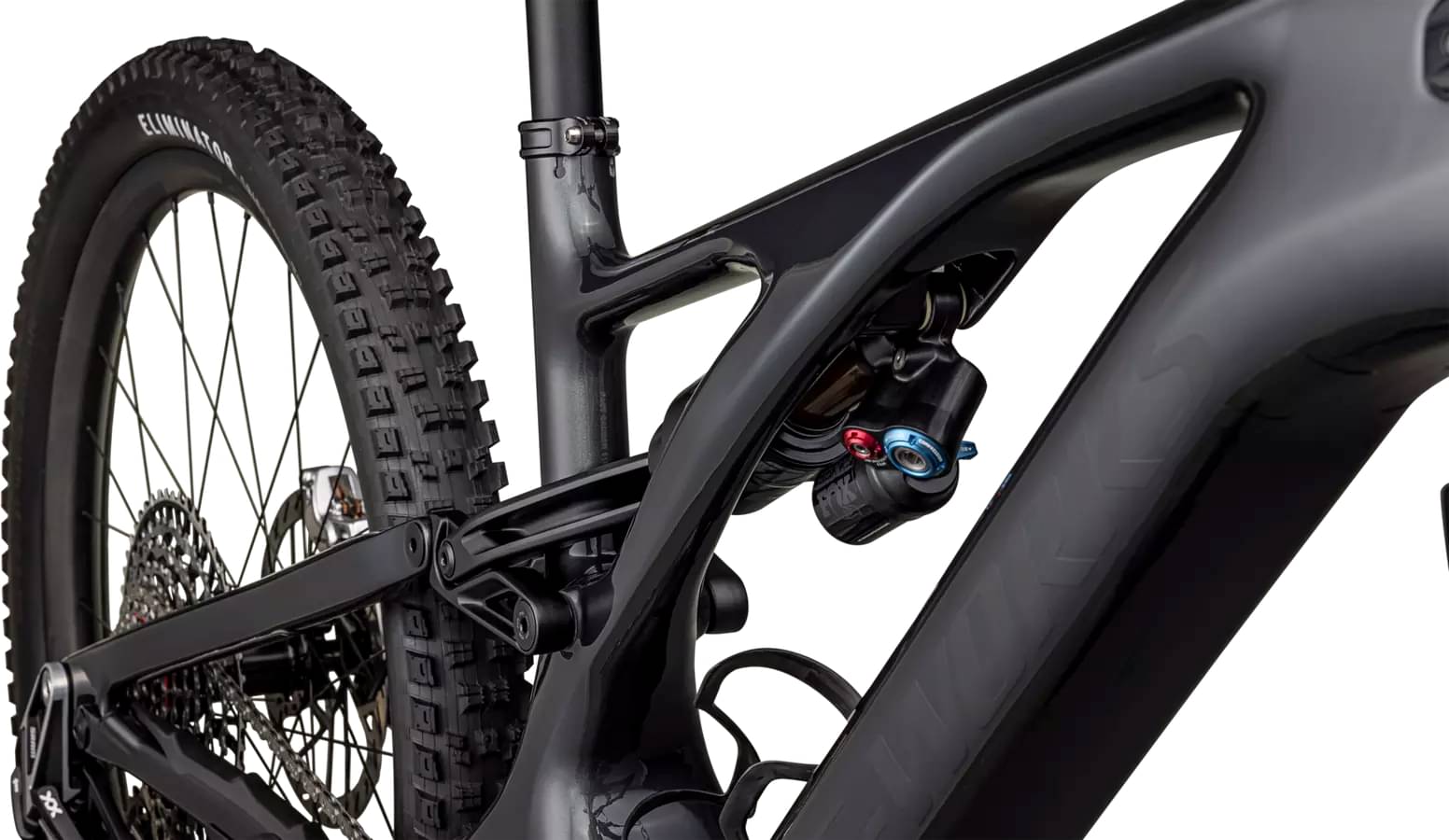

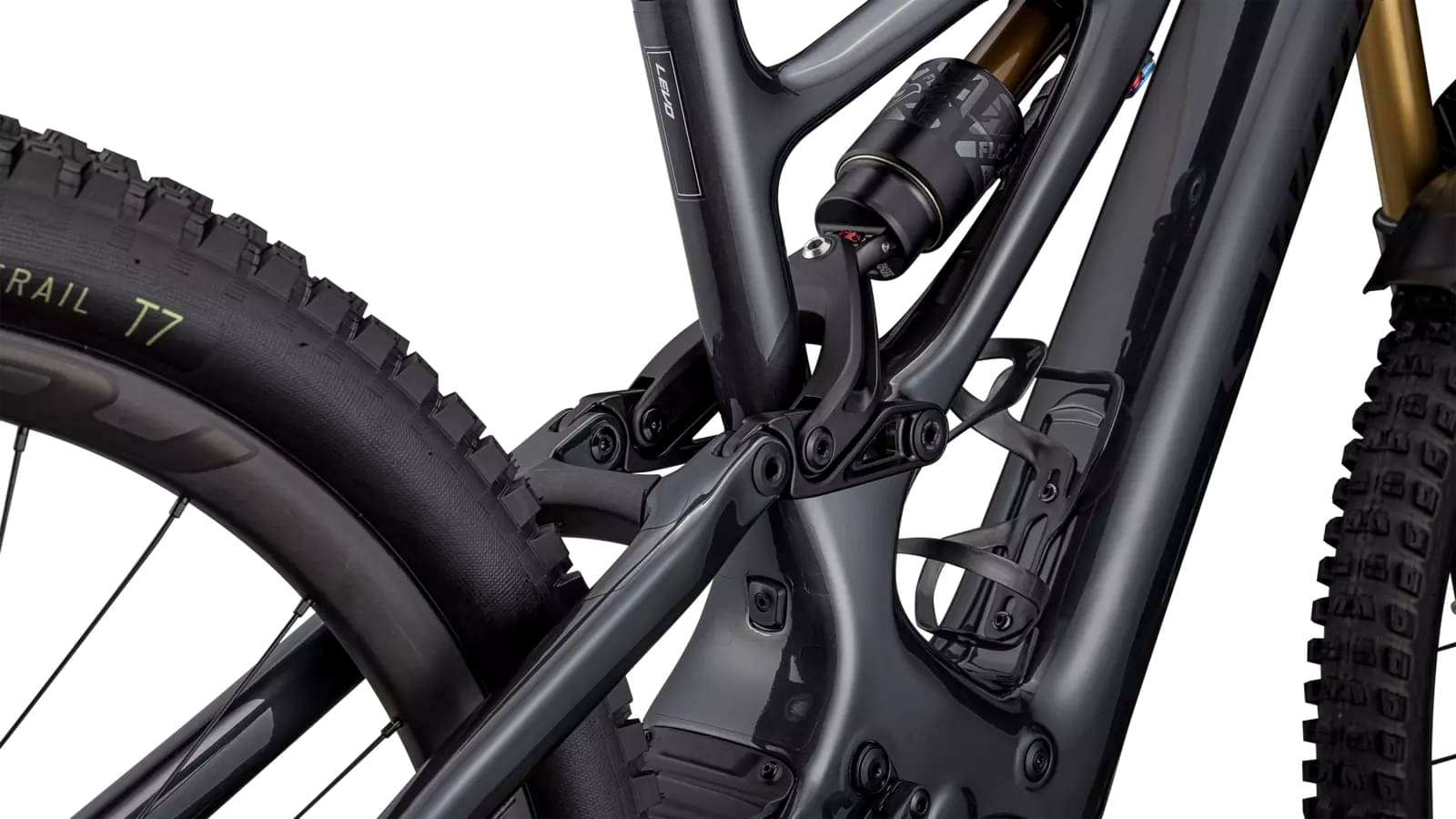

Rear Shock

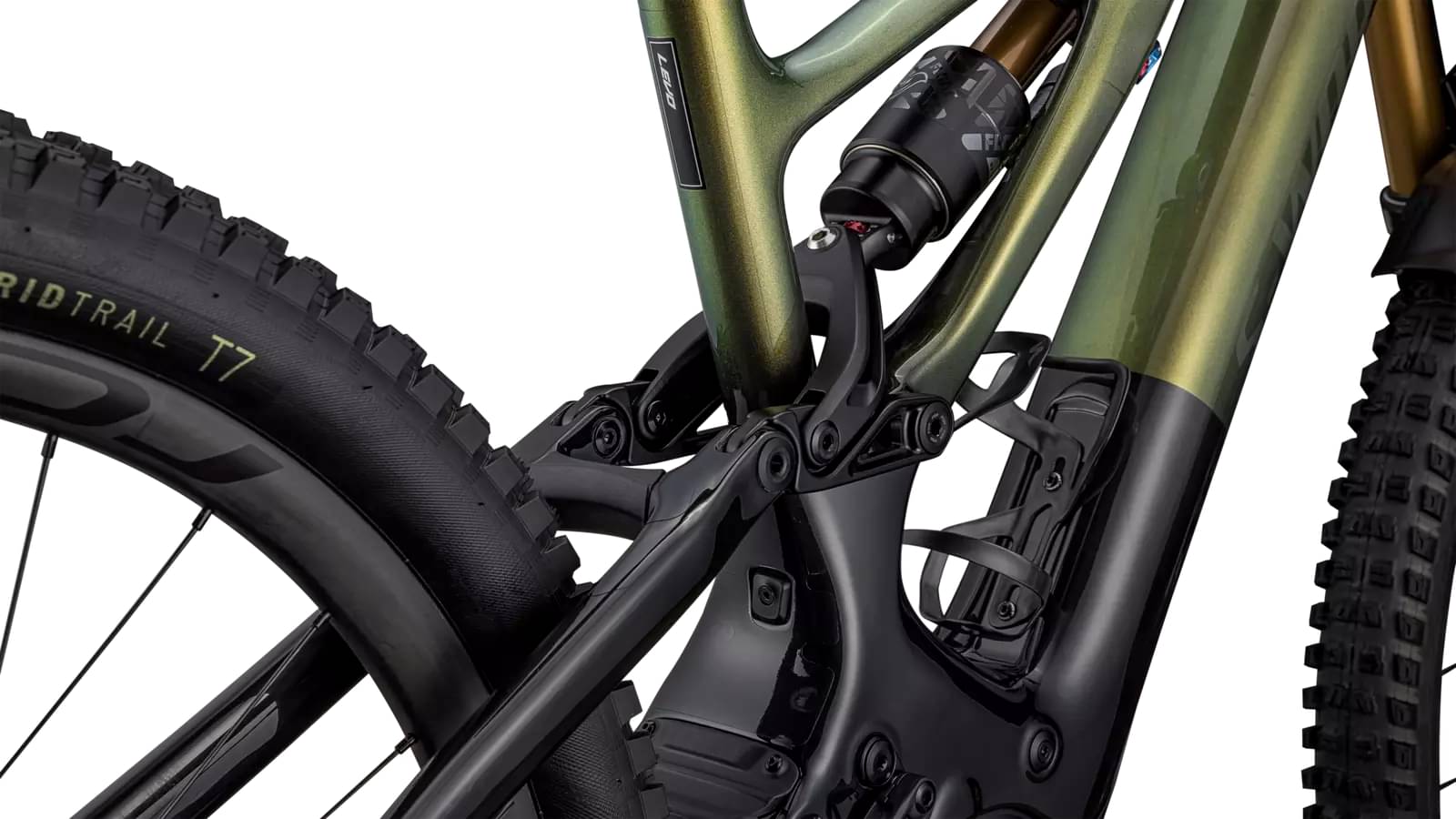

From the factory, it comes with the Fox Float X2 Factory rear shock model, which has a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the S-Works Turbo Levo G3 model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Specialized S-Works Turbo Levo G3 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 157 cm – 203 cm (5.15 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Specialized S-Works Turbo Levo G3 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
