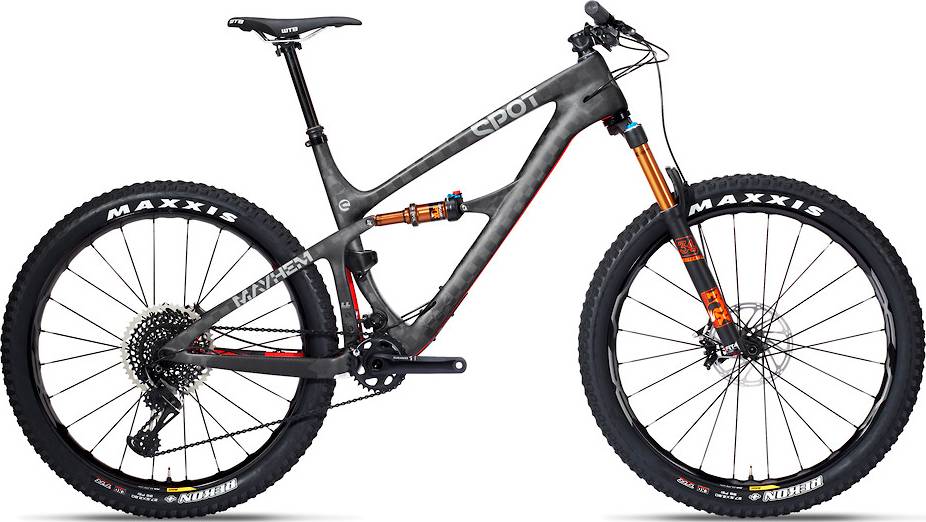

Spot Brand Mayhem 27.5″+ 5-Star Build 2018
2018 Mountain
Estimate price |
5,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, Boost, FIT4 damper
Rear Shock
FOX Factory Float DPS EVOL, 3 position adjust, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1295, 12-speed, 10-50 tooth
Crank
SRAM X1 1400, 170mm length
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM X01 Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Mavic XA Elite+
Rear Hub
Mavic XA Elite+
Rims
Mavic XA Elite+, tubeless, Boost
Spokes
Mavic
Tires
Schwalbe Rocket Ron 2.8"
Brakes
Brakes
SRAM Guide RSC with Centerline 180mm front/160mm rear rotors
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Race Face Turbine, 60mm length, 35mm clamp
Handlebar
Race Face Next 35, carbon, stealth, 760mm width, 20mm rise, 35mm diameter
Grips
ODI Vans
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Seat
Saddle
WTB Silverado Pro
Seatpost
FOX Performance Elite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.39 mm | 1.34 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Stack | 601 mm | 611 mm | 620 mm | 629 mm |
| Reach | 399 mm | 422 mm | 446 mm | 468 mm |
| Top Tube Length | 559 mm | 584 mm | 610 mm | 636 mm |
| Seat Tube Angle | 75.2 ° | 75.2 ° | 75.2 ° | 75.2 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 446 mm |
| Wheelbase | 1151 mm | 1174 mm | 1205 mm | 1239 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Standover Height | 697 mm | 702 mm | 708 mm | 714 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Mayhem 27.5″+ 5-Star Build is part of the Spotbrand Mayhem model. There are 25 bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Spot Brand Mayhem 27.5″+ 4-Star Build 2018 is the most economical model, with a starting price of 4399$. Spot Brand Mayhem 29″ 6-Star Build 2018 on the other hand costs 6999$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5299$. In conclusion, this bike price is 91.85% higher than the price of the average Trail bike.
Mayhem 27.5″+ 5-Star Build components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Factory Float DPS EVOL, with a travel distance of 130mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Mayhem 27.5″+ 5-Star Build model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Spot Brand Mayhem 27.5″+ 5-Star Build is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Spot Brand model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
