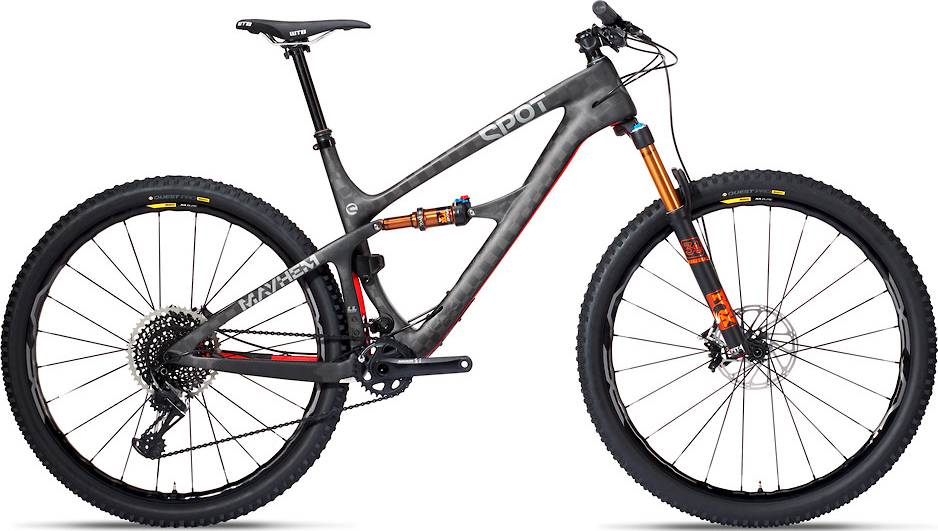

Spot Brand Mayhem 29″ 5-Star Build 2018
2018 Mountain
Estimate price |
5,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 34 Float, Boost, FIT4 damper
Rear Shock
FOX Factory Float DPS EVOL, 3 position adjust, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM XG-1295, 12-speed, 10-50 tooth
Crank
SRAM X1 1400, 170mm length
Bottom Bracket
SRAM GXP, 73mm
Chain
SRAM X01 Eagle
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Stan's NoTubes Arch MK3, Boost front and rear
Rear Hub
Stan's NoTubes Arch MK3, Boost front and rear
Rims
Stan's NoTubes Arch MK3, tubeless
Tires
Schwalbe Nobby Nic
Brakes
Brakes
SRAM Guide RSC with Centerline 180mm front/160mm rear rotors
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Race Face Turbine, 60mm length, 35mm clamp
Handlebar
Race Face Next 35, carbon, stealth, 760mm width, 20mm rise, 35mm diameter
Grips
ODI Vans
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Seat
Saddle
WTB Silverado Pro
Seatpost
FOX Performance Elite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 597 mm | 607 mm | 616 mm | 625 mm |
| Reach | 404 mm | 427 mm | 451 mm | 474 mm |
| Top Tube Length | 558 mm | 583 mm | 609 mm | 634 mm |
| Seat Tube Angle | 75.7 ° | 75.7 ° | 75.7 ° | 75.7 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 66.7 ° | 66.7 ° | 66.7 ° | 66.7 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 446 mm |
| Wheelbase | 1145 mm | 1172 mm | 1200 mm | 1234 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 701 mm | 706 mm | 712 mm | 718 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Mayhem 29″ 5-Star Build is a Spotbrand Mayhem model. Spot Brand released 25 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Spot Brand Mayhem 27.5″+ 4-Star Build 2018 is the cheapest bike model and costs 4399$. Spot Brand Mayhem 29″ 6-Star Build 2018 is the most expensive one and costs 6999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5299$. If we compare this with the average Trail bike cost we notice that the price is 91.85% higher.
Mayhem 29″ 5-Star Build components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Spot Brand Mayhem 29″ 5-Star Build bike has the FOX Factory Float DPS EVOL model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Mayhem 29″ 5-Star Build model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mayhem 29″ 5-Star Build comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Mayhem 29″ 5-Star Build comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
