Spot Brand Spot Ryve 115 5-Star 2023
2023 Mountain
Estimate price |
6,799$
Weight | 12.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory Float 34 29, 130mm, Grip 2, HSC, LSC, HSR, LSR, 44mm Rake, Boost 15QRx110
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj, Trunnion, 0.4 VS, 165x45

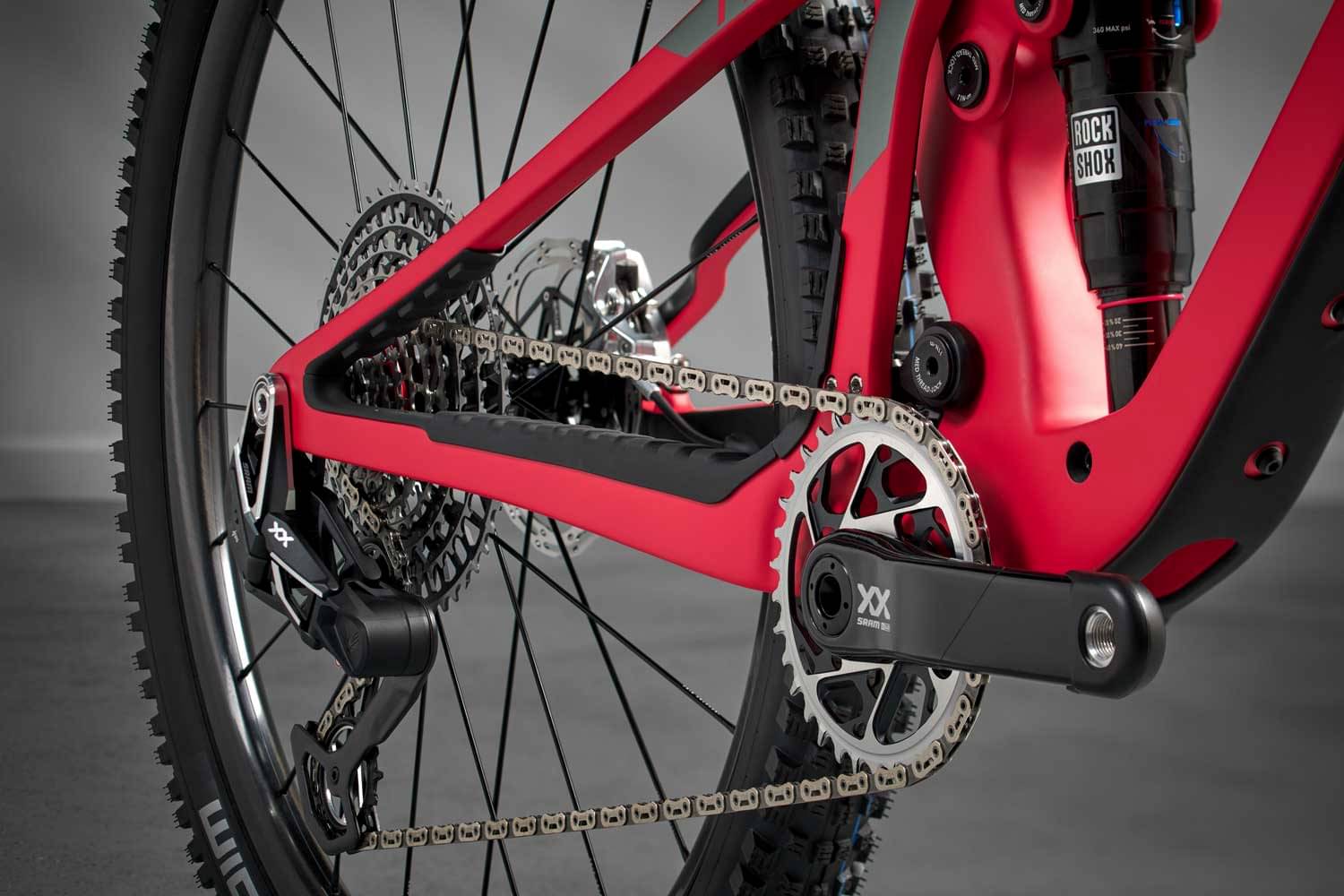

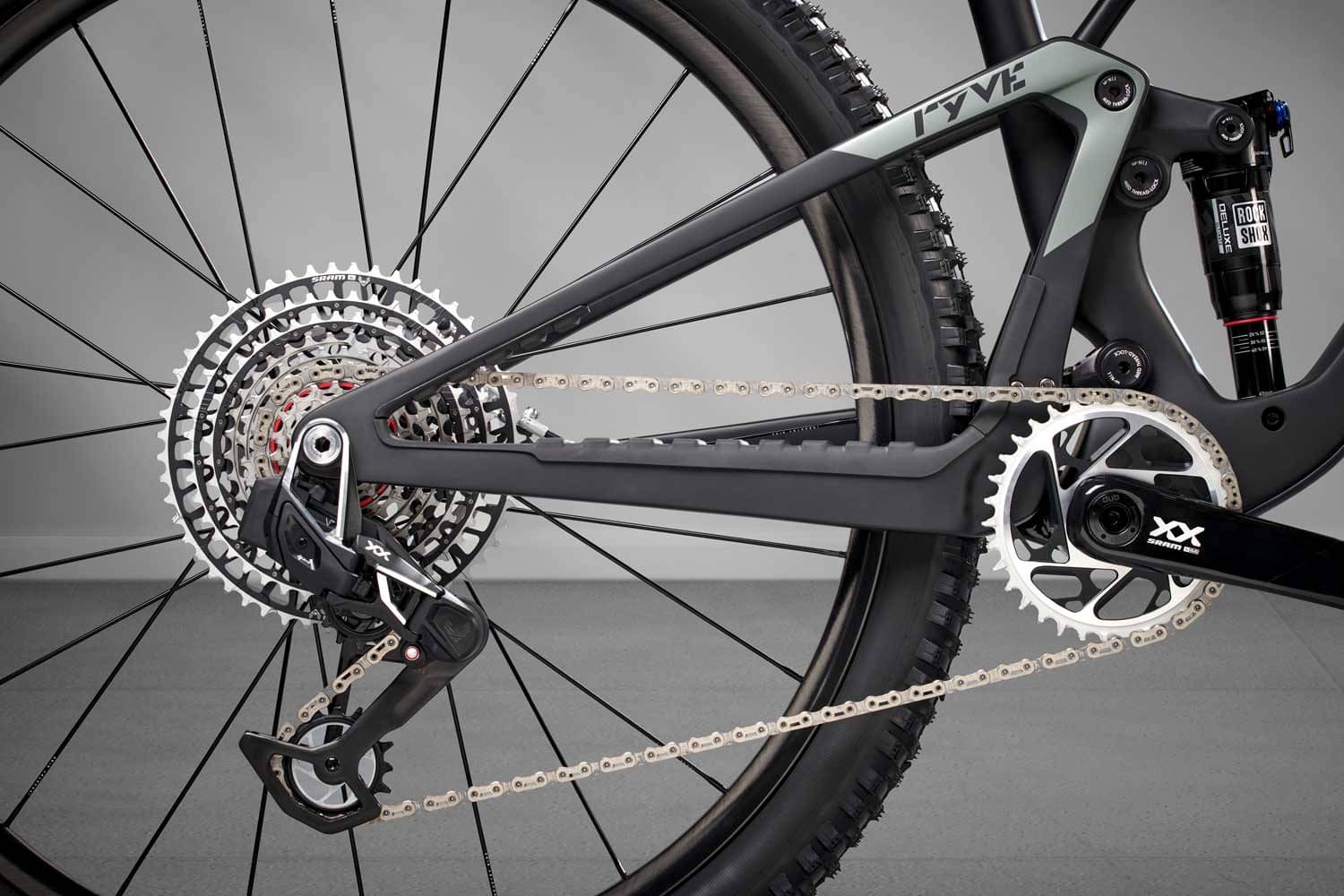

Drivetrain
Rear Derailleur
SRAM XO1 Eagle BLK, 12-speed
Shift Levers
SRAM GX Eagle 12-speed
Cassette
SRAM XG1275, 12-speed, 10-52t, BLK
Crank
SRAM X1 Carbon Eagle B148, DUB 170mm, 32t
Bottom Bracket
SRAM DUB BSA 73 mm threaded
Chain
SRAM GX Eagle
Wheels
Rims
Front: Stan's No Tubes Arch MK4 29, 6-Bolt, Boost 15x110, Rear: Stan's No Tubes Arch MK4 29, E-Sync, Tubeless, XD Driver, 6-Bolt, Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40

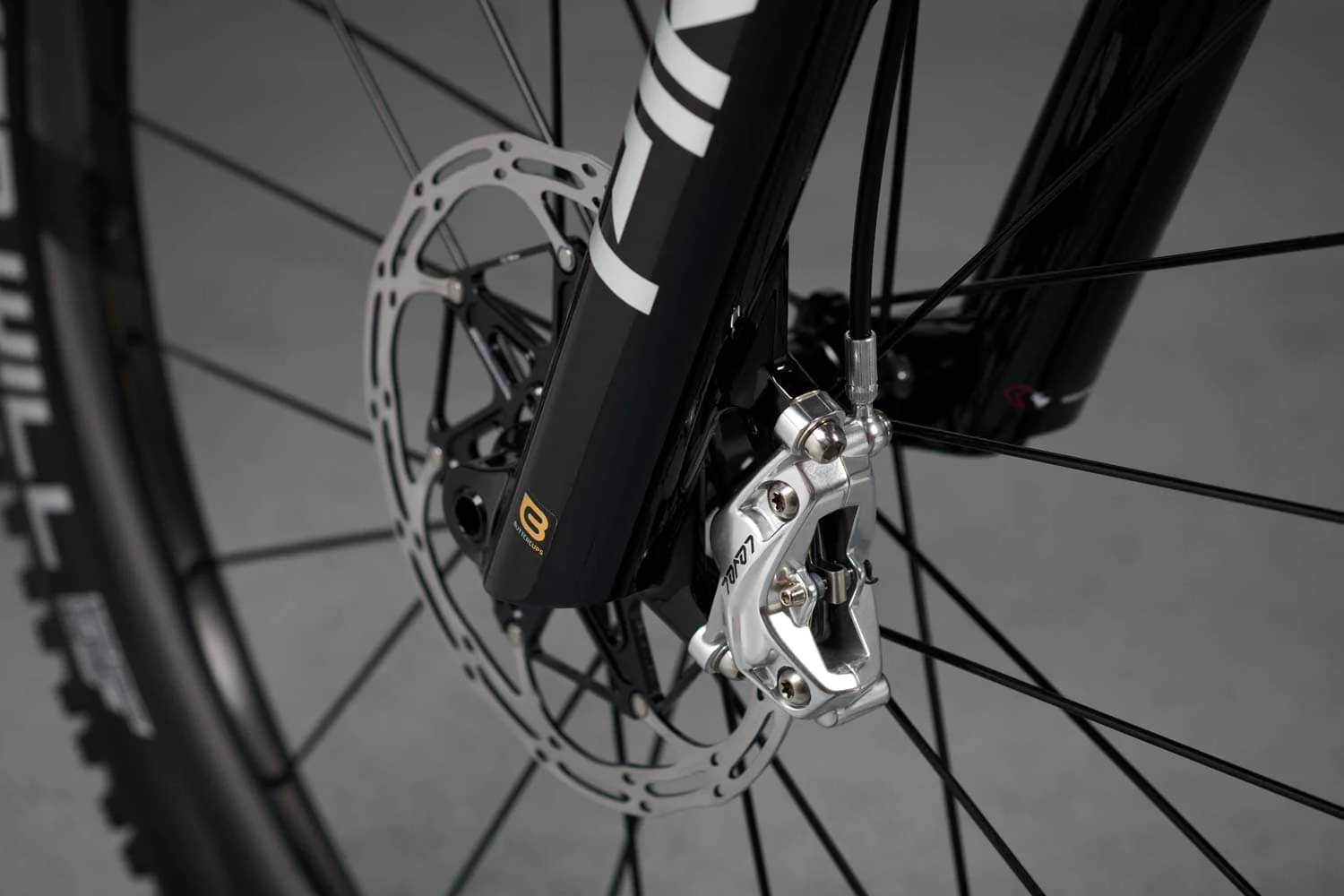

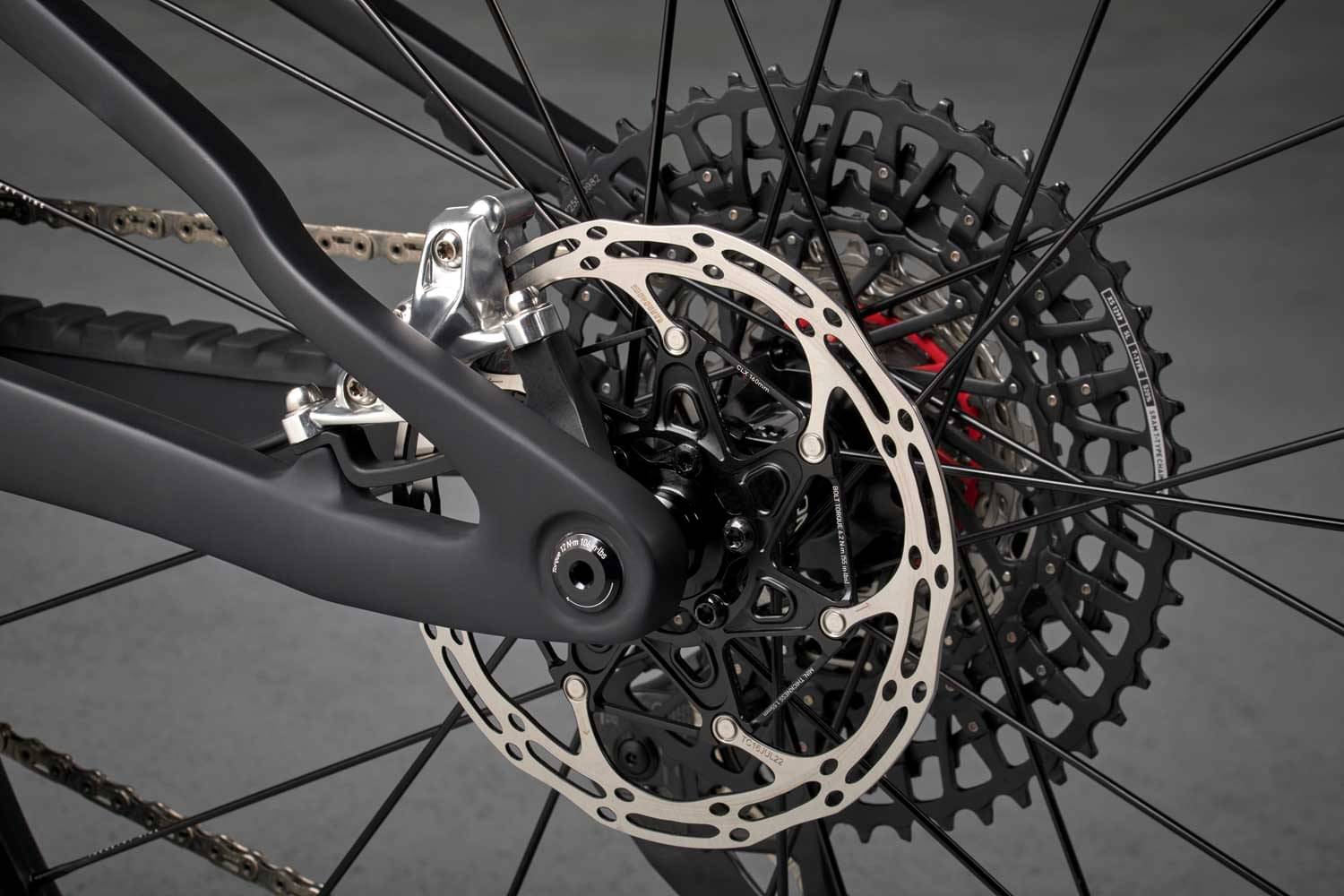

Brakes
Brakes
Front: SRAM G2 RSC, 180mm Centerline rotor, 6-bolt, Rear: SRAM G2 RSC, 180mm Centerline rotor, 6-bolt

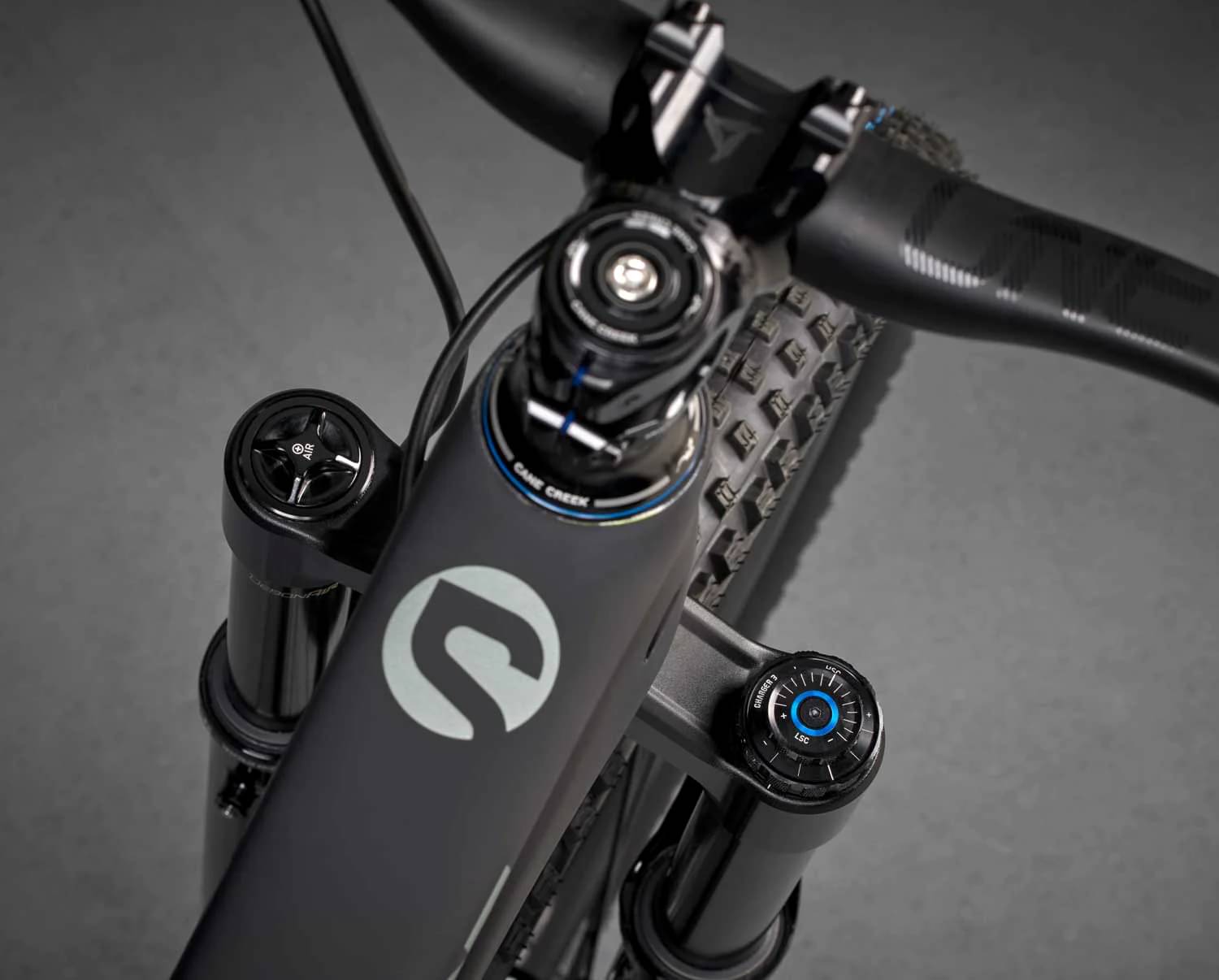

Cockpit
Stem
Race Face Turbine R, 35.0 mm x 50mm
Handlebar
OneUp Carbon, XL 800 mm, LG 780mm, MD/SM 760mm, 20 mm rise, 35.0 mm clamp, Sweep 8 deg back 5 deg up
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185 mm for XL and Large, 160 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 414 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 574 mm | 601 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1146 mm | 1175 mm | 1209 mm | 1242 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 719 mm | 717 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Ryve 115 5-Star is a Spotbrand Ryve model. Spot released 15 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Spot Ryve 115 4-Star 2023 is the cheapest bike model and costs 5599$. Spot Ryve 115 6-Star AXS 2023 is the most expensive one and costs 8999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Spot released this model in 2023, its price was 6799$. Doing a quick comparison, we notice that Ryve 115 5-Star price is 256.9% higher than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Ryve 115 5-Star has a weight of 12.61 kg (27.8 lbs). To sum up, it’s 1.69% heavier than the average weight of Crosscountry bikes.
Ryve 115 5-Star components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Factory Float DPS EVOL LV model, with a travel of 115mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Spot Ryve 115 5-Star 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.

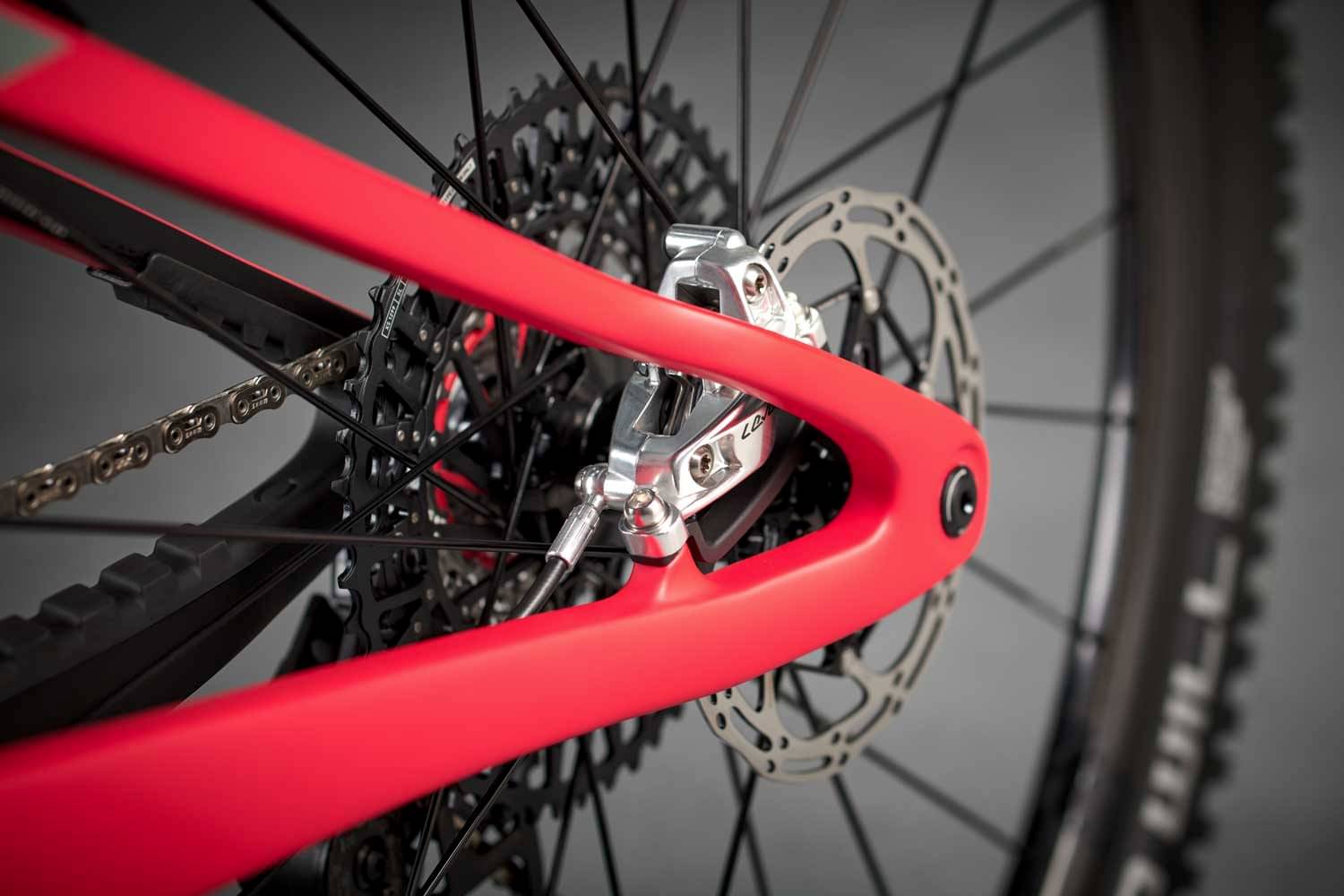

Brakes
When you want to stop the bike in time, the brakes are vital. The Ryve 115 5-Star has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Ryve 115 5-Star. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
