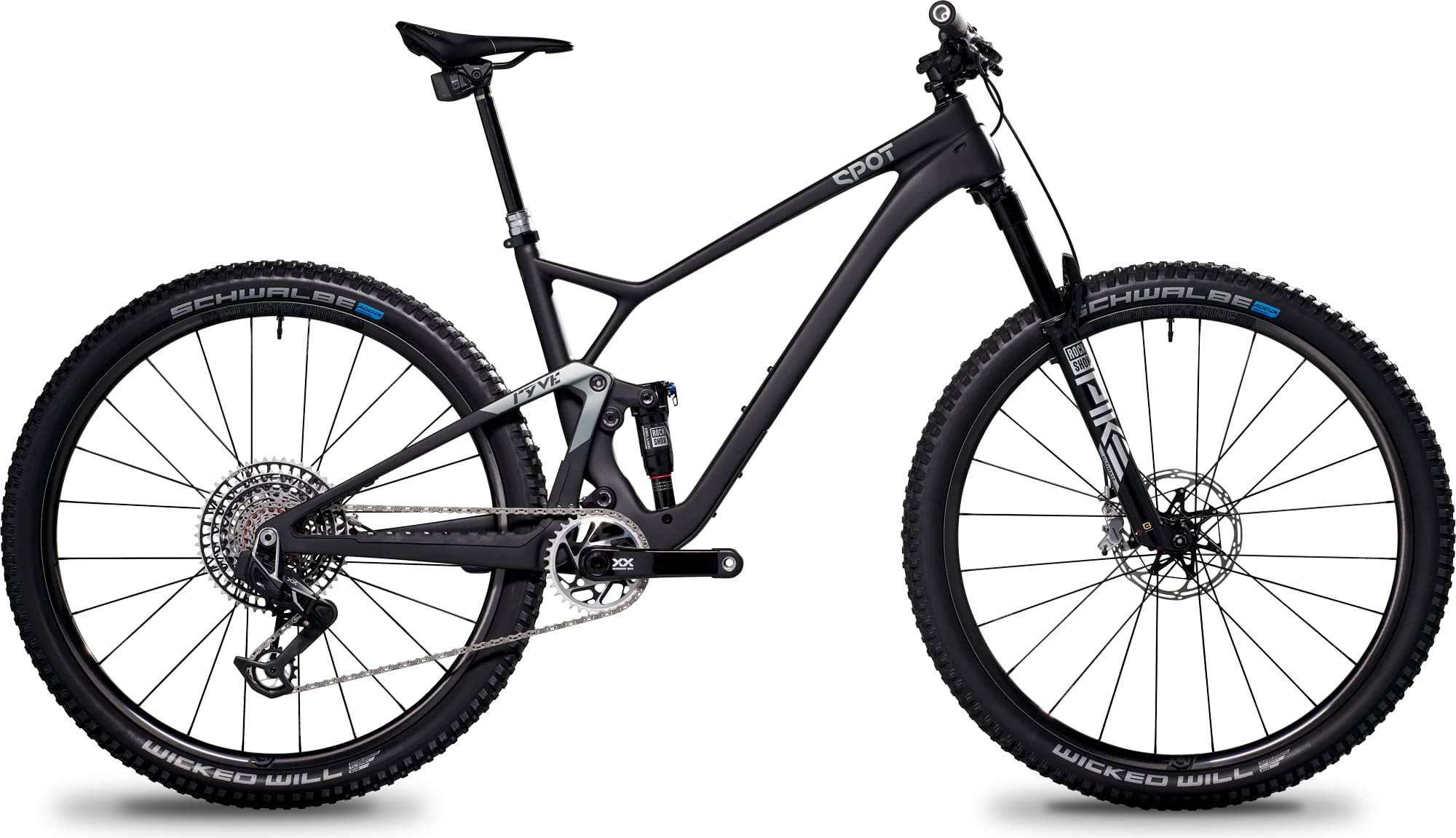

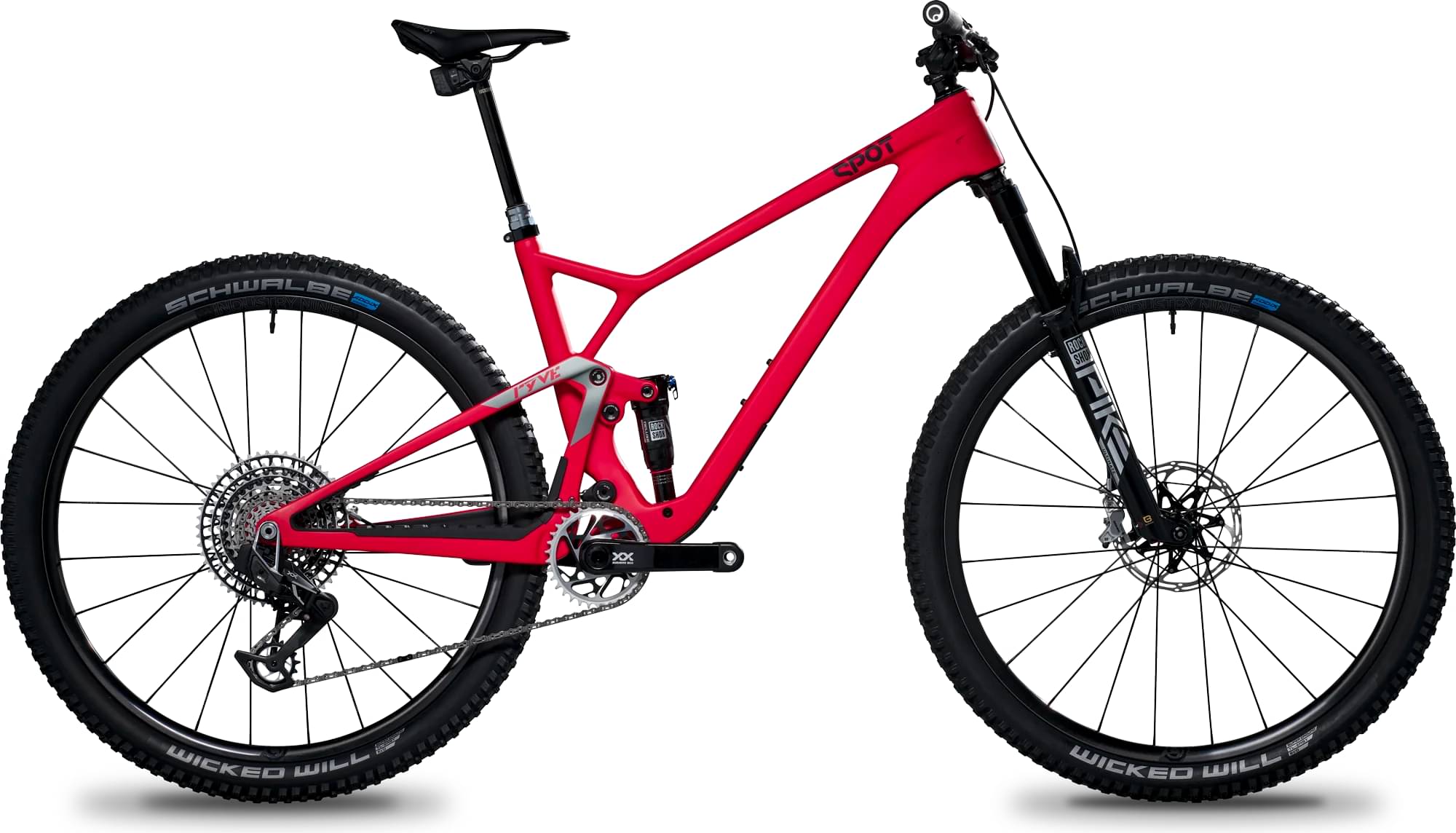

Spot Brand Spot Ryve 115 6-Star XTR 2023
2023 Mountain
Estimate price |
8,799$
Weight | 12.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 115mm -

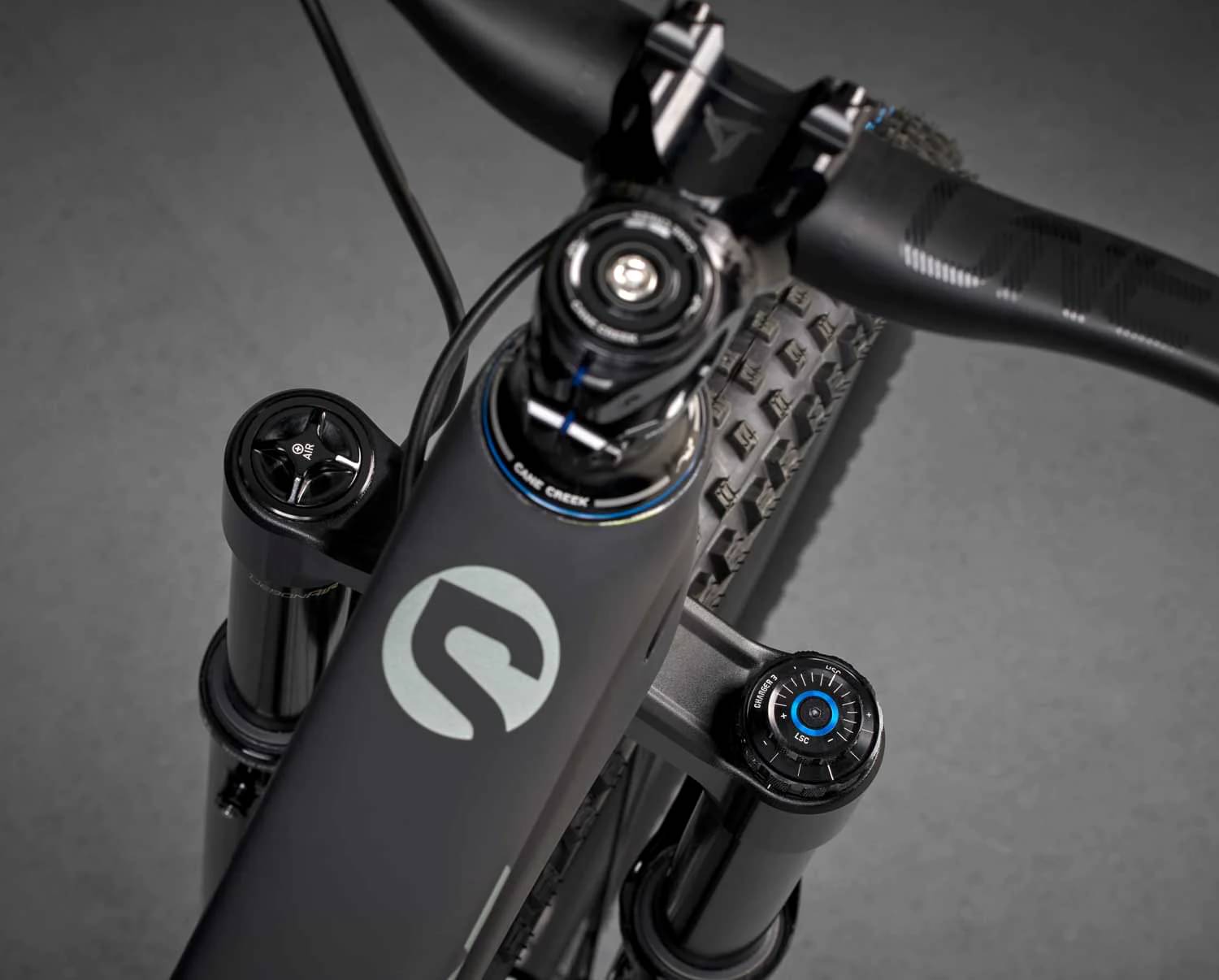

Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Fox Factory Float 34 29, 130mm, Grip 2, HSC, LSC, HSR, LSR, 44mm Rake, Boost 15QRx110
Rear Shock
Fox Factory Float DPS EVOL LV, 3 Pos. Adj, Trunnion, 0.4 VS, 165x45
Drivetrain
Rear Derailleur
Shimano M9100 XTR, 12-speed
Shift Levers
Shimano M9100 XTR 12-speed
Cassette
Shimano M9100 XTR, 12-speed, 10-51t
Crank
Shimano M9120 XTR, 170mm, 32t
Bottom Bracket
Shimano SM-BB93 73 mm threaded
Chain
Shimano 9100 XTR
Wheels
Rims
Front: Industry Nine UL300 29, 24h, Tubeless, 6-Bolt, Boost 15x110, Rear: Industry Nine UL300 29, 24h, Tubeless, Microspline, 6-Bolt, Boost 12x148
Tires
Front: Schwalbe Wicked Will 29x2.40, Rear: Schwalbe Wicked Will 29x2.40
Brakes
Brakes

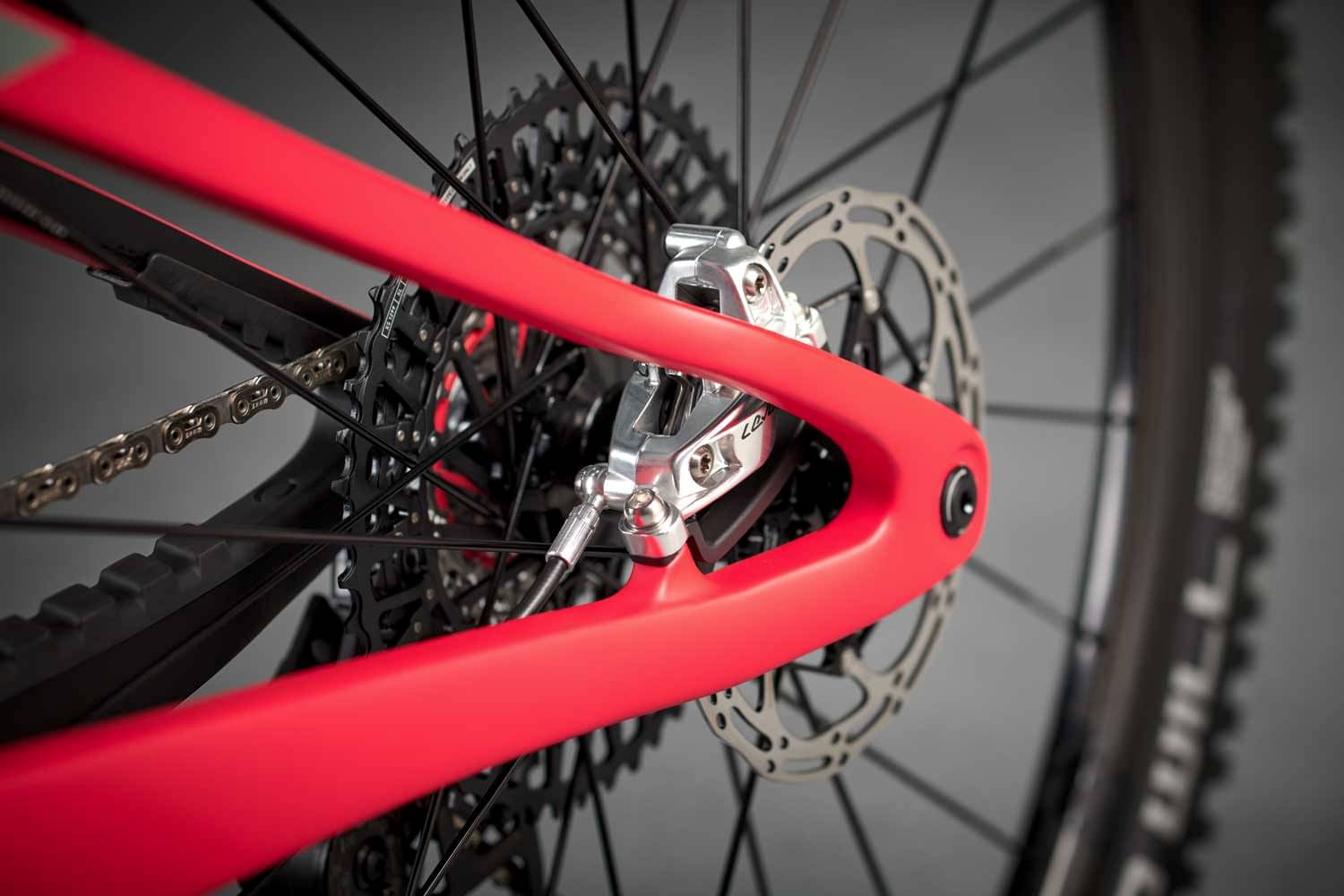

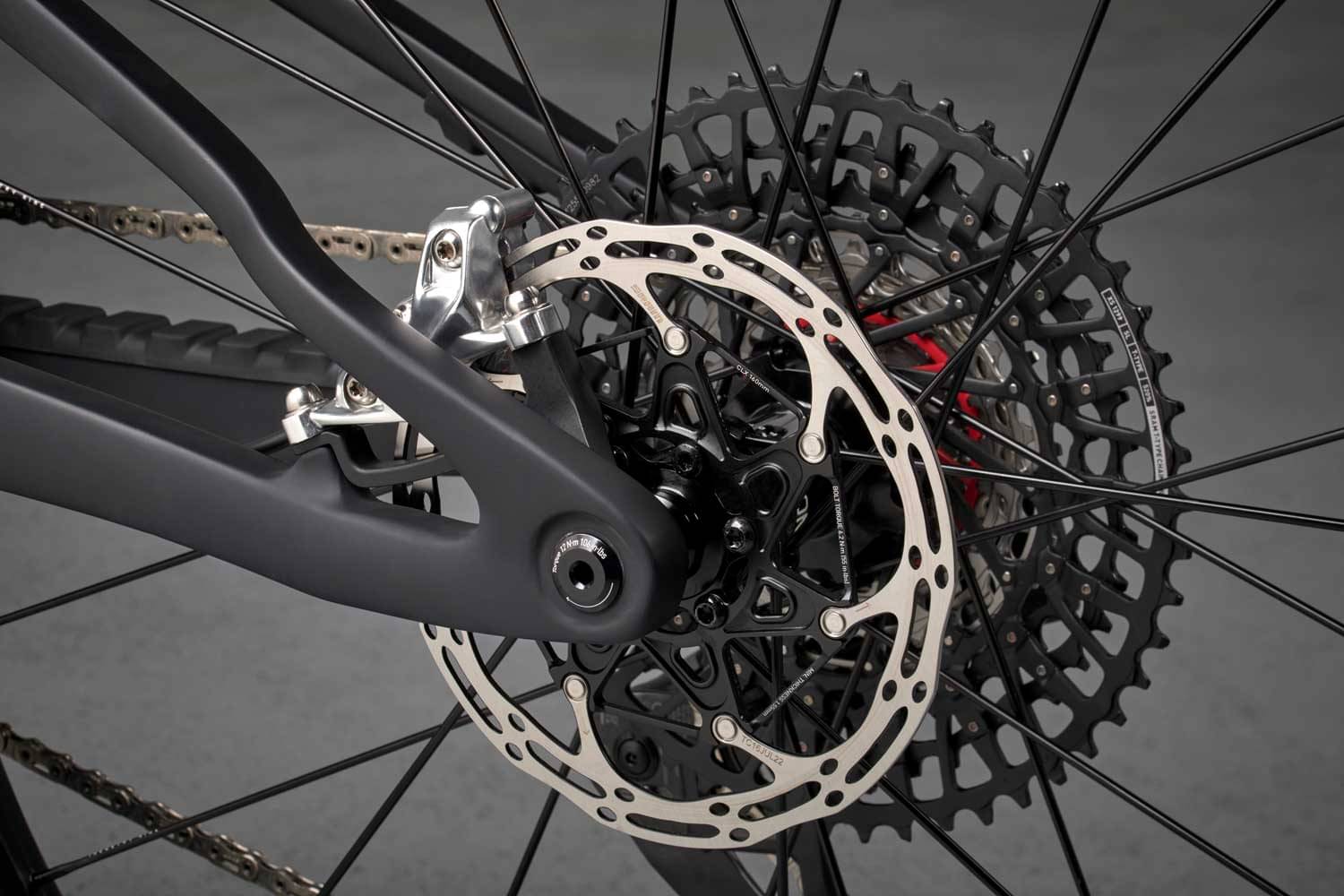

Front: Shimano M9120 XTR, 4-piston, 180mm rotor, 6-bolt, Rear: Shimano M9120 XTR, 4-piston, 180mm rotor, 6-bolt
Cockpit
Stem
Race Face Turbine R, 35.0 mm x 50mm
Handlebar
OneUp Carbon, XL 800 mm, LG 780mm, MD/SM 760mm, 20 mm rise, 35.0 mm clamp, Sweep 8 deg back 5 deg up
Grips
Ergon GXR, Black
Headset
Cane Creek 40, ZS44/ZS56 ZS44 upper, ZS56 lower
Seat
Saddle
Spot MTB
Seatpost
BikeYoke Revive 185 mm for XL and Large, 160 mm for Medium, 125 mm for Small, Internal, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.37 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 717 mm | 746 mm | 780 mm | 813 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 115 mm | 115 mm | 116 mm | 116 mm |
| Stack | 591 mm | 600 mm | 610 mm | 619 mm |
| Reach | 414 mm | 439 mm | 469 mm | 499 mm |
| Top Tube Length | 574 mm | 601 mm | 622 mm | 640 mm |
| Seat Tube Angle | 75 ° | 75 ° | 76 ° | 77.3 ° |
| Seat Tube Length | 360 mm | 400 mm | 450 mm | 490 mm |
| Head Tube Angle | 66.2 ° | 66.2 ° | 66.2 ° | 66.2 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1146 mm | 1175 mm | 1209 mm | 1242 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 712 mm | 719 mm | 717 mm | 715 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Ryve 115 6-Star XTR is part of the Spotbrand Ryve model. Spot launched 15 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Spot Ryve 115 4-Star 2023 is the most economical model, with a starting price of 5599$. Spot Ryve 115 6-Star AXS 2023 on the other hand costs 8999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 8799$. Doing a quick comparison, we notice that Ryve 115 6-Star XTR price is 361.89% higher than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Ryve 115 6-Star XTR weighs 12.16 kg (26.81 lbs) and is slightly lighter than the average. In conclusion, the average Crosscountry bike weighs 1.97% more than Ryve 115 6-Star XTR.
Ryve 115 6-Star XTR components
Fork
Spot Ryve 115 6-Star XTR 2023 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this bike has the Fox Factory Float DPS EVOL LV model, with a travel of 115mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Ryve 115 6-Star XTR bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.

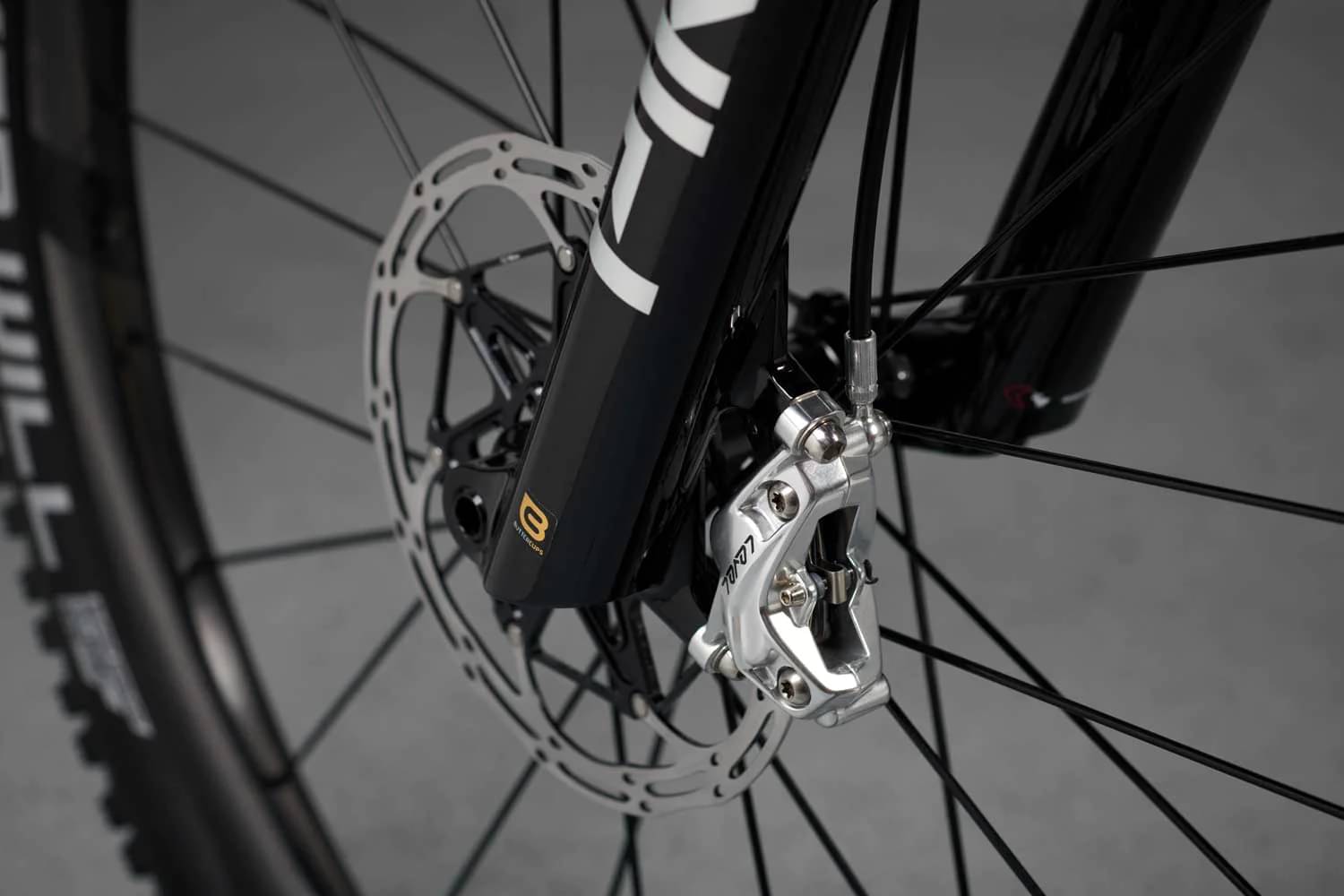

Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Ryve 115 6-Star XTR comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
