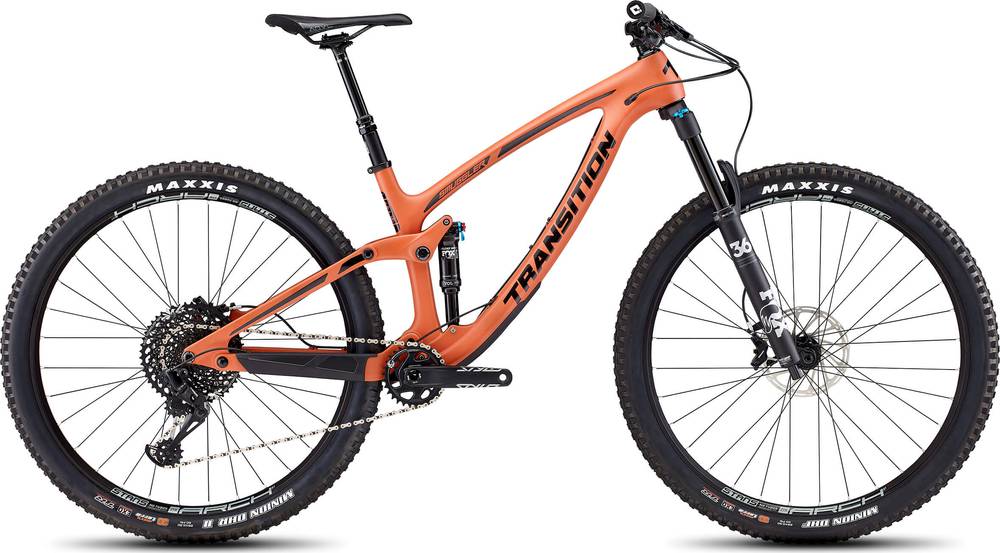

Transition SMUGGLER CARBON COMPLETE GX 2019
2019 Mountain
Estimate price |
4,999$
Weight | 13.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 120mm -
Fork Fox Performance Float 36
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 170cm
MD
164cm - 182cm
LG
175cm - 190cm
XL
184cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Smuggler Carbon 120mm Rear/140mm Front
Suspension Fork
Fox Float 36 Grip Performance (140mm)
Rear Shock
Fox DPS Performance Elite
Drivetrain
Rear Derailleur
SRAM GX Eagle
Shift Levers
SRAM GX Eagle
Cassette
SRAM XG 1275 (10-50t)
Crank
SRAM Stylo 7K DUB (170mm x 30t)
Chain
SRAM GX Eagle
Wheels
Rims
Stans Arch S1 Team
Tires
Front: Maxxis Minion DHF 3C WT (29x2.3), Rear: Maxxis Minion DHRII 3C (29x2.3)
Brakes
Brakes
SRAM Guide R
Disk Rotors
SRAM Centerline (180mm)
Cockpit
Stem
RaceFace Aeffect R (40mm)
Handlebar
RaceFace Chester 35, SM/MD (780 x 20mm), LG/XL (780 x 35mm)
Grips
ODI Elite Flow
Headset
FSA No.57E
Seat
Saddle
ANVL Forge Cromo
Seatpost
RockShox Reverb Stealth, SM (100mm), MD (125mm), LG (150mm), XL (170mm)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.367 mm | 1.314 mm | 1.266 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Front Center | 731 mm | 756 mm | 785 mm | 814 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 120 mm | 120 mm | 120 mm | 120 mm |
| Stack | 615 mm | 615 mm | 624 mm | 633 mm |
| Reach | 425 mm | 450 mm | 475 mm | 500 mm |
| Seat Tube Angle | 77 ° | 76.3 ° | 75.8 ° | 75.3 ° |
| Seat Tube Length | 400 mm | 410 mm | 450 mm | 495 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1159 mm | 1184 mm | 1213 mm | 1242 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 688 mm | 695 mm | 705 mm | 720 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 175 cm | 184 cm |
| Rider Max Height | 170 cm | 182 cm | 190 cm | 200 cm |
Model Overview
SMUGGLER CARBON COMPLETE GX belongs to the Transition Smuggler model. 28 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Transition SMUGGLER CARBON COMPLETE NX 2019 is the cheapest bike model and costs 3999$. Transition SMUGGLER CARBON COMPLETE XO1 2019 is the most expensive one and costs 5999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2019 for 4999$. Comparing the average cost of a Trail bike to this one, you will see that SMUGGLER CARBON COMPLETE GX price is 80.99% more expensive.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 13.28 kg (29.28 lbs), Transition bike is slightly heavier than average. To sum up, it’s 2.31% heavier than the average weight of Trail bikes.
SMUGGLER CARBON COMPLETE GX components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox DPS Performance Elite rear shock model, which has a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the SMUGGLER CARBON COMPLETE GX model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Transition SMUGGLER CARBON COMPLETE GX is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 154 cm – 200 cm (5.05 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Transition SMUGGLER CARBON COMPLETE GX includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
